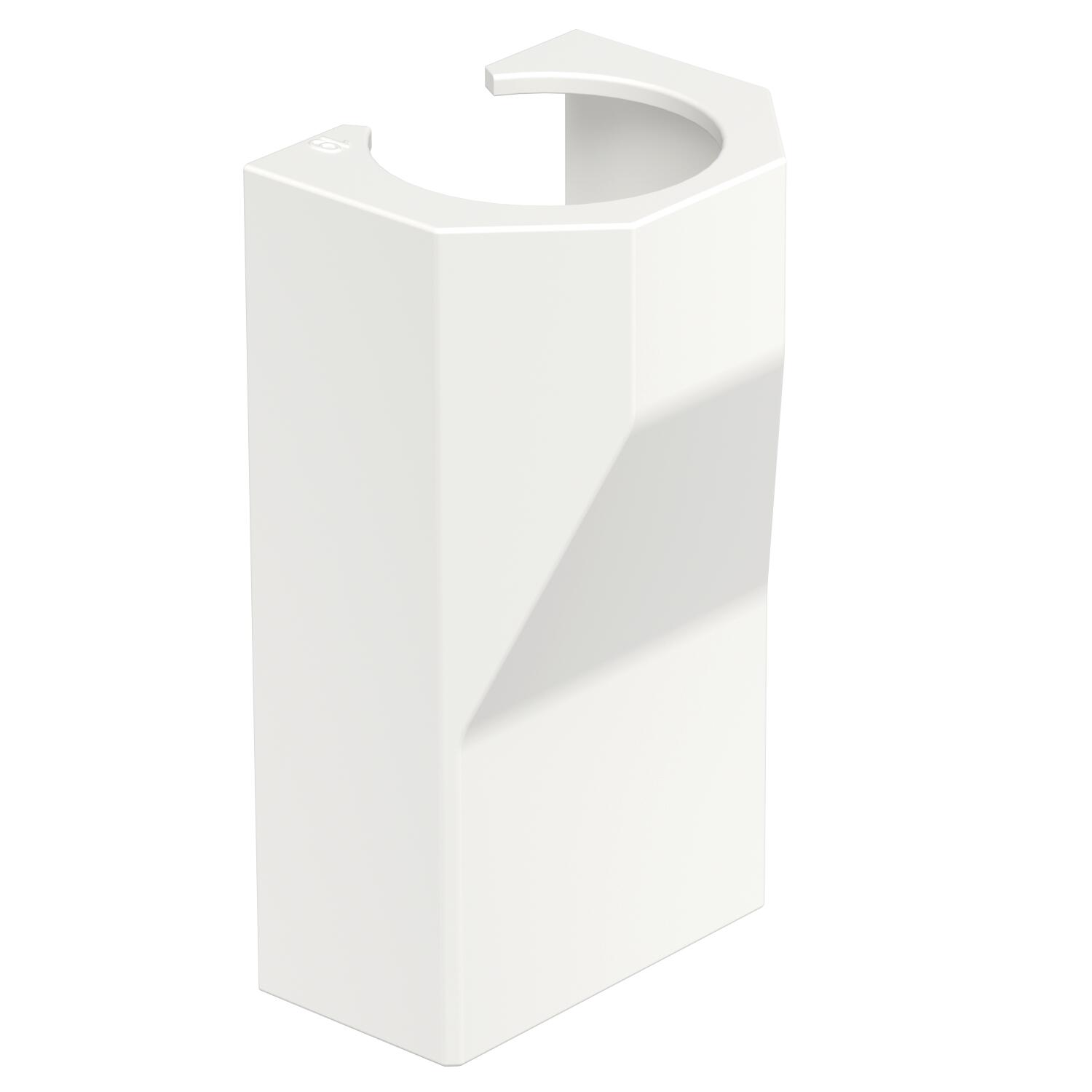

Pipe adapter, trunking to pipe, 19 mm
morepic-1 morepic-2 video-1

Pipe adapter, trunking to pipe, 19 mm

Item no. 6193730 | EAN 4012195959182

Product description
Product description
Pipe adapter for transferring an installation pipe to the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 0,0395 kg CO2e / 1 Piece
Colour Pure white; RAL 9010

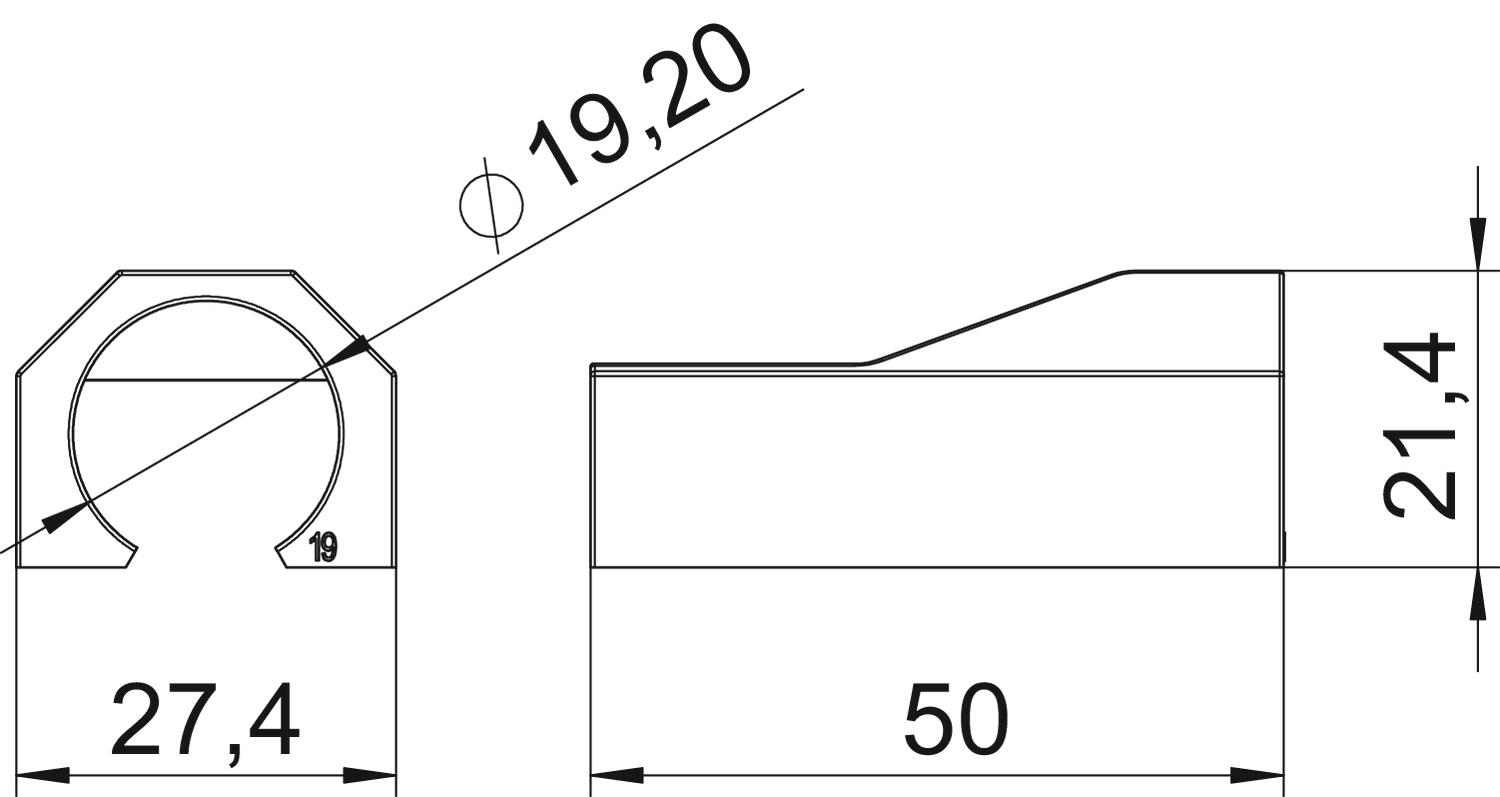

Dimension 15x27x50mm
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
All types

All types

Types Item no. Quantity SSU
WDK HPC13025PW19 6193728
10 piece
WDK HPC13025RW19 6193730
10 piece
Downloads

Download
Download

Download
Download
Download

EU declaration of conformity WDK HPC13025RW19 / 6193730 , 0.10MB , pdf
Download
UK Declaration of Conformity WDK HPC13025RW19 / 6193730 , 0.09MB , pdf
Download
REACH Declaration of conformity WDK HPC13025RW19 / 6193730 , 0.12MB , pdf
Download
RoHS Declaration of conformity WDK HPC13025RW19 / 6193730 , 0.13MB , pdf
Download

Download

Download

No invitation to tender text is available for this product.
