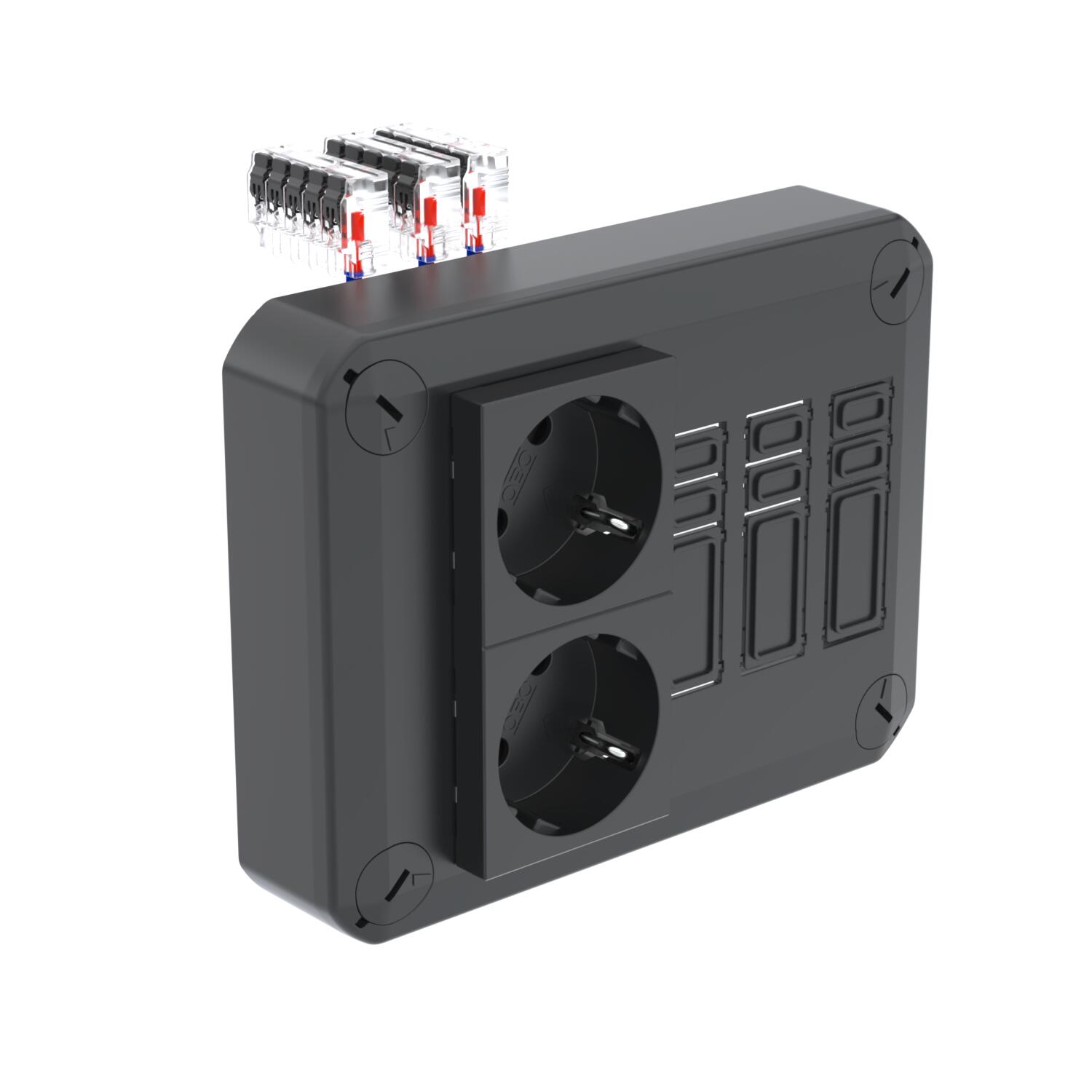

Pluggable cover, equipped, Modul 45

Item no. 2006266 | EAN 4012197464349

Product description
Product description
Pluggable cover for the closing of junction boxes, equipped with 2 Module 45 sockets, prewired with lever plug-in connector With quick lock in cover, sealable. Halogen-free material, UV-resistant Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK07 at room temperature. Protection rating IP30
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Installation electrotechnical expertise
  • Nominal voltage 500 V
  • Protection rating IP 30
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

Colour Graphite black; RAL 9011
Dimension 150x116x60
Fastening type Screw fastening
Height 60 mm
Length 150 mm
Material Polypropylene
Protection rating IP30
Shape Rectangular
Version, concealed and cavity wall cover Lid with sockets
Width 116 mm
All types

All types

Types Number of sockets Number of 3-pole sockets Number of 4-pole sockets Number of 5-pole sockets Item no. Quantity SSU
D03 2MSD WS 2006116
1 piece
D03 2MSD WS SW 2006266
1 piece
