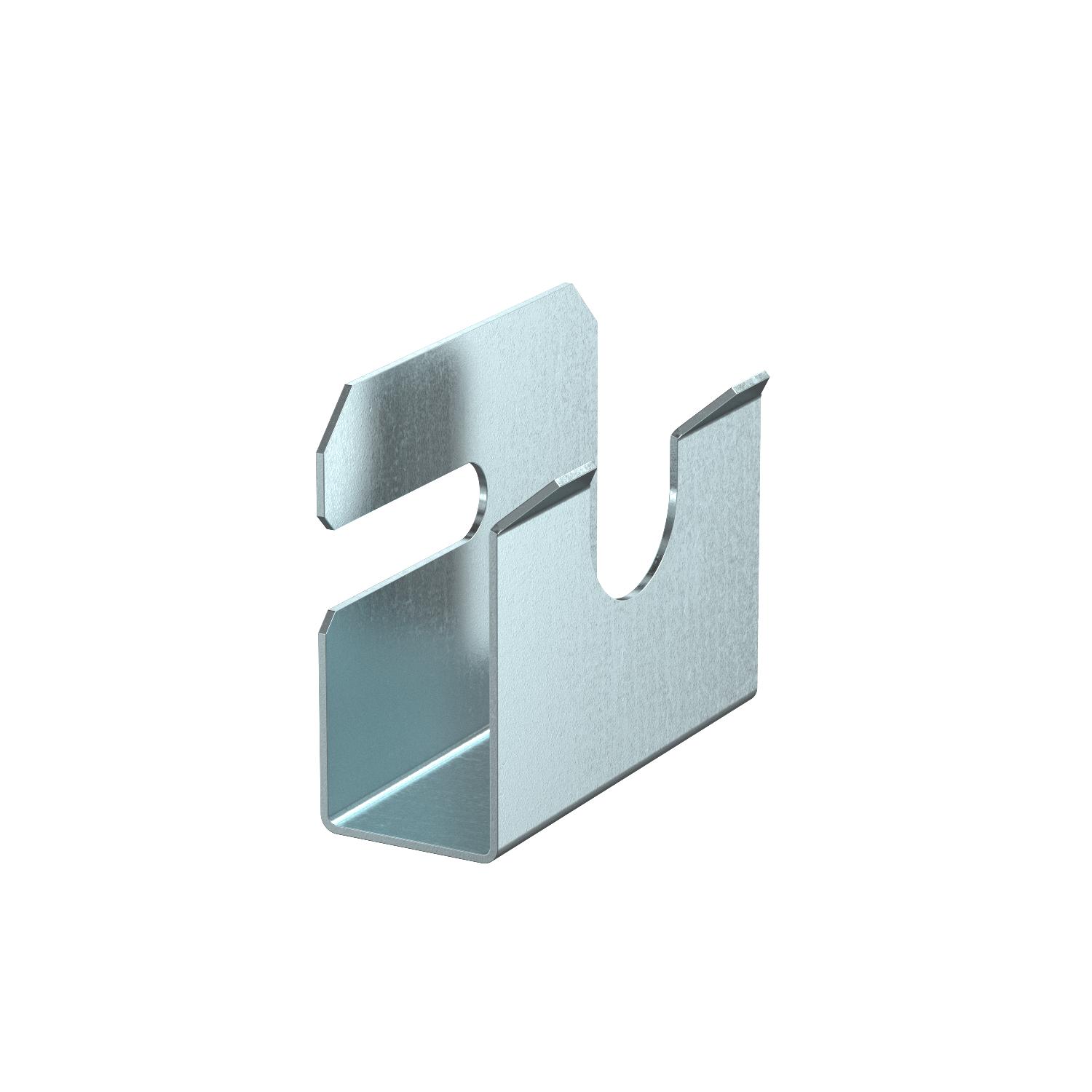

Pressure clip for wall mounting, duct height 40 mm
Item no. 7218152 | EAN 4012197310493
- Product description
-
Product descriptionInstallation aid against cables falling out for wall mounting of the PLM D 0410 installation duct.
-
- Technical data
-
Technical data

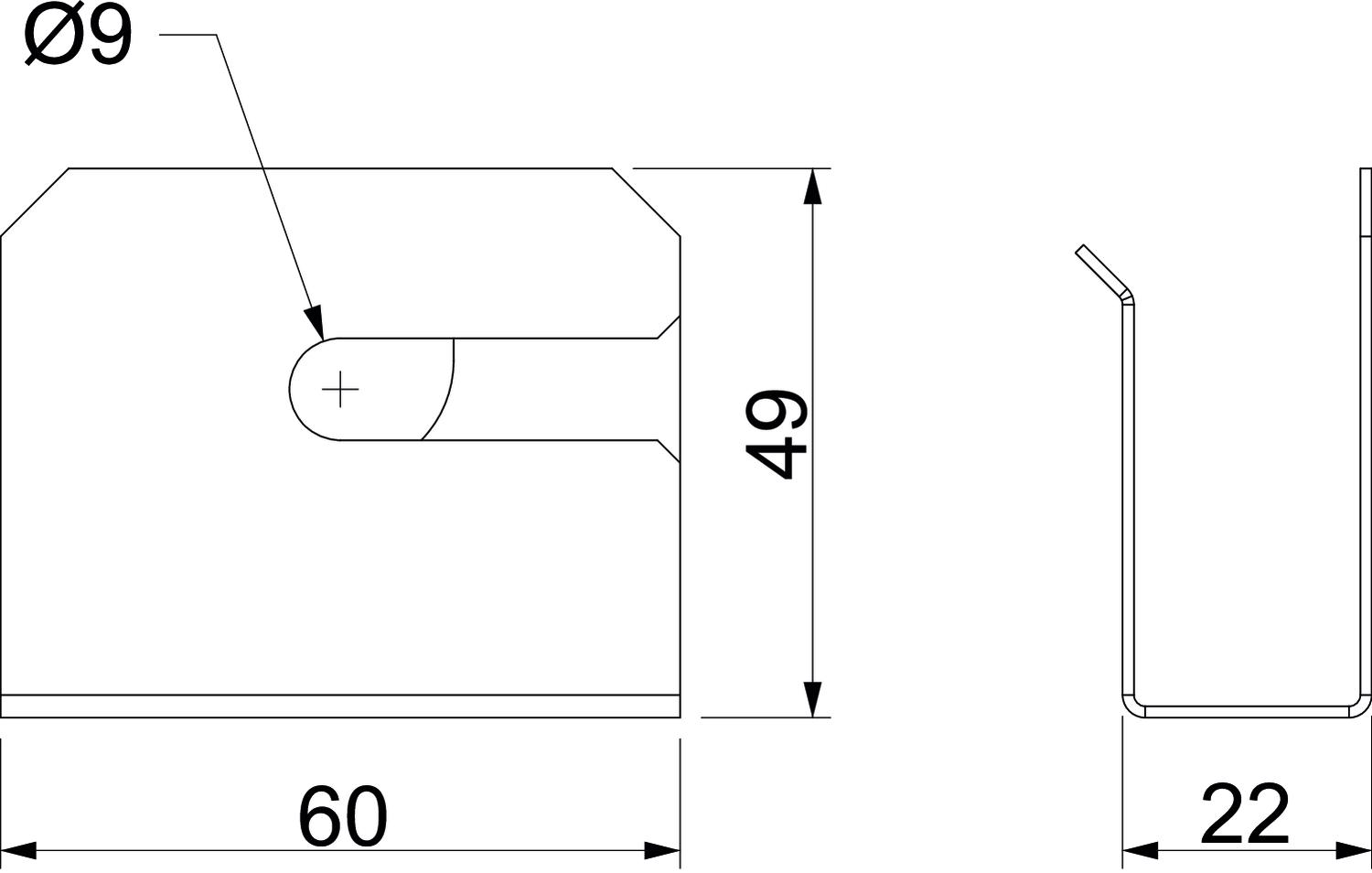

Accessories yes CO2 Footprint (GWP) Cradle-to-Gate 0,1683 kg CO2e / 1 Piece Colour zinc Dimension 22x60x49 Dimension B 60 mm Dimension H 49 mm Dimension t 22 mm Fastening type Screw-on Material Steel Spare part no Surface Strip galvanized Type of accessory Miscellaneous - All types
- Downloads
-
Data sheet PLM WB 0410 FS / 7218152 , 0.15MB , pdfCatalogue Fire protection ducts , 8.99MB , pdfEU declaration of conformity PLM WB 0410 FS / 7218152 , 0.11MB , pdfDeclaration of performance PLM WB 0410 FS / 7218152 , 0.78MB , pdfREACH Declaration of conformity PLM WB 0410 FS / 7218152 , 0.12MB , pdfRoHS Declaration of conformity PLM WB 0410 FS / 7218152 , 0.13MB , pdfMounting instructions PYROLINE® Rapid installation duct system , 3.70MB , pdfNo invitation to tender text is available for this product.
