Profile rail MS 22 L FT

Item no. 1122723 | EAN 4012195500773

Item no. / Types

Length

Width	40 mm

Height	22.5 mm

Material thickness	2 mm

Surface	Hot-dip galvanised

Product description

Product description

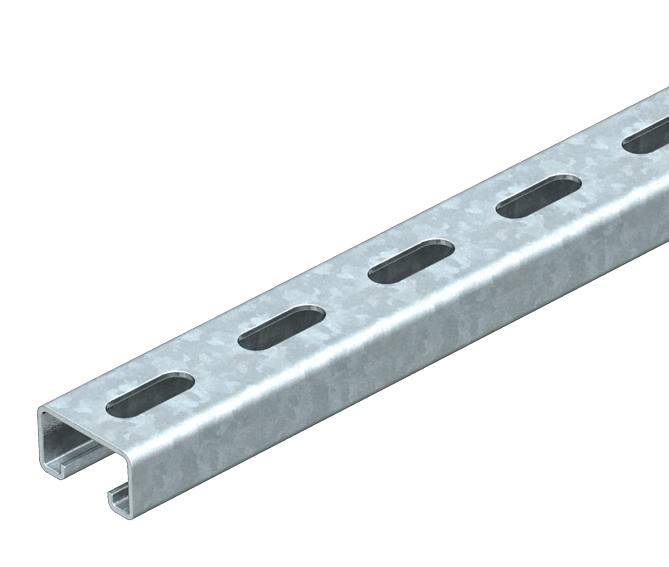

Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.

Technical data

Technical data

Breakable	no
CO2 Footprint (GWP) Cradle-to-Gate	2,314 kg CO2e / 1 Piece

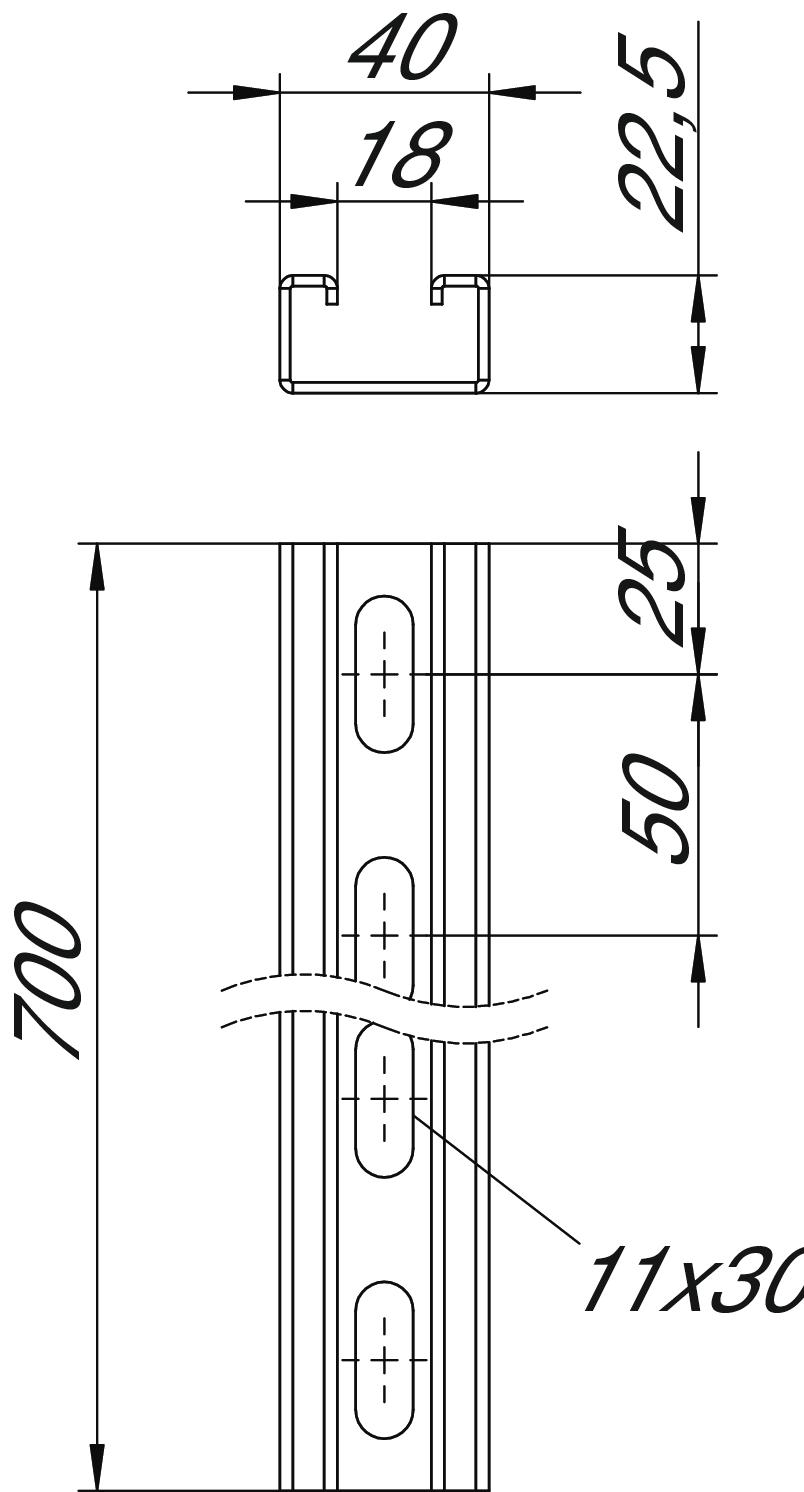

Dimension	700x40x22,5
Dimension L	700 mm
Drill hole spacing, centre	50 mm
Height	22,5 mm
Hole size	11x30 mm
Length	700 mm
Maintain electrical functions	no
Material	Steel
Material thickness	2 mm
Profile shape	C profile

Slot width	18 mm
Static value A	1,74 cm²
Static value ly	1,19 cm⁴
Static value lz	4,46 cm⁴
Static value Wy	1,05 cm³
Static value Wz	2,23 cm³
Surface	Hot-dip galvanised
Type of perforation	Perforated back
Version for	Single profile
Width	40 mm
With perforation	yes
With toothing	no

All types

All types

Types	Length	Width	Height	Material thickness	Surface	Item no.	Quantity	SSU
MS 22 L 200 FT	200 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	1122703	piece	1 piece
MS 22 L 300 FT	300 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	1122707	piece	1 piece
MS 22 L 400 FT	400 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	1122711	piece	1 piece
MS 22 L 500 FT	500 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	1122715	piece	1 piece
MS 22 L 600 FT	600 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	1122719	piece	1 piece
MS 22 L 700 FT	700 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	1122723	piece	1 piece
MS 22 L 800 FT	800 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	1122727	piece	1 piece
MS 22 L 1MFT	1000 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	1122735	m	1 m
MS 22 L 3M FT	3000 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	1122742	m	3 m
MS 22 L 6M FT	6000 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	1122746	m	6 m
