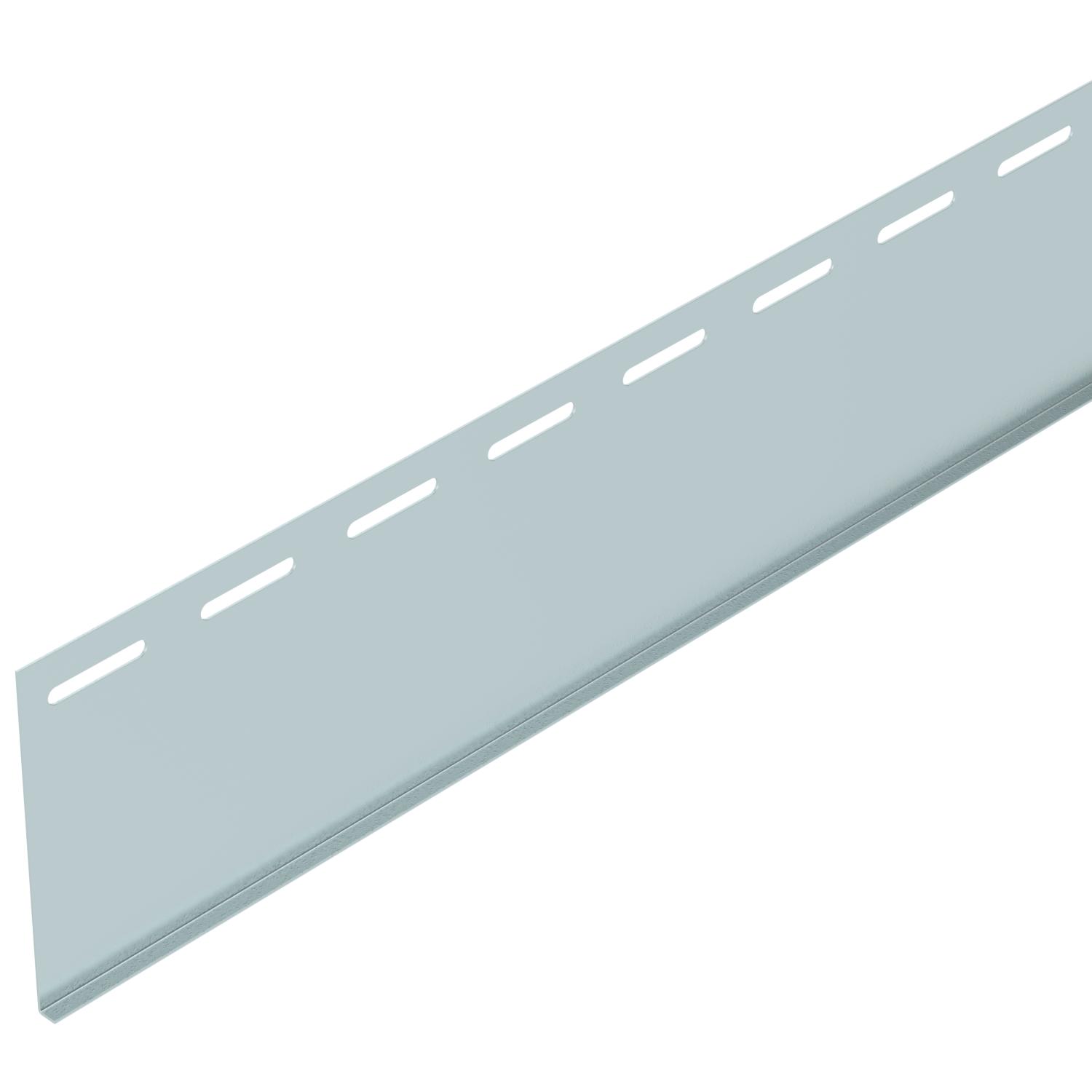

Protective panel 108 FS
Item no. 6049252 | EAN 4012196147816
- Product description
-
Product description
Protective panel, to be attached at the side as a collision guard for the walkable BKRS cable tray system. The side height is 108 mm.
-
- Technical data
-
Technical data
Dimension 100x3000 Material Steel Rustproof steel, pickled no Surface Strip galvanized Thickness 1 mm Dimensions

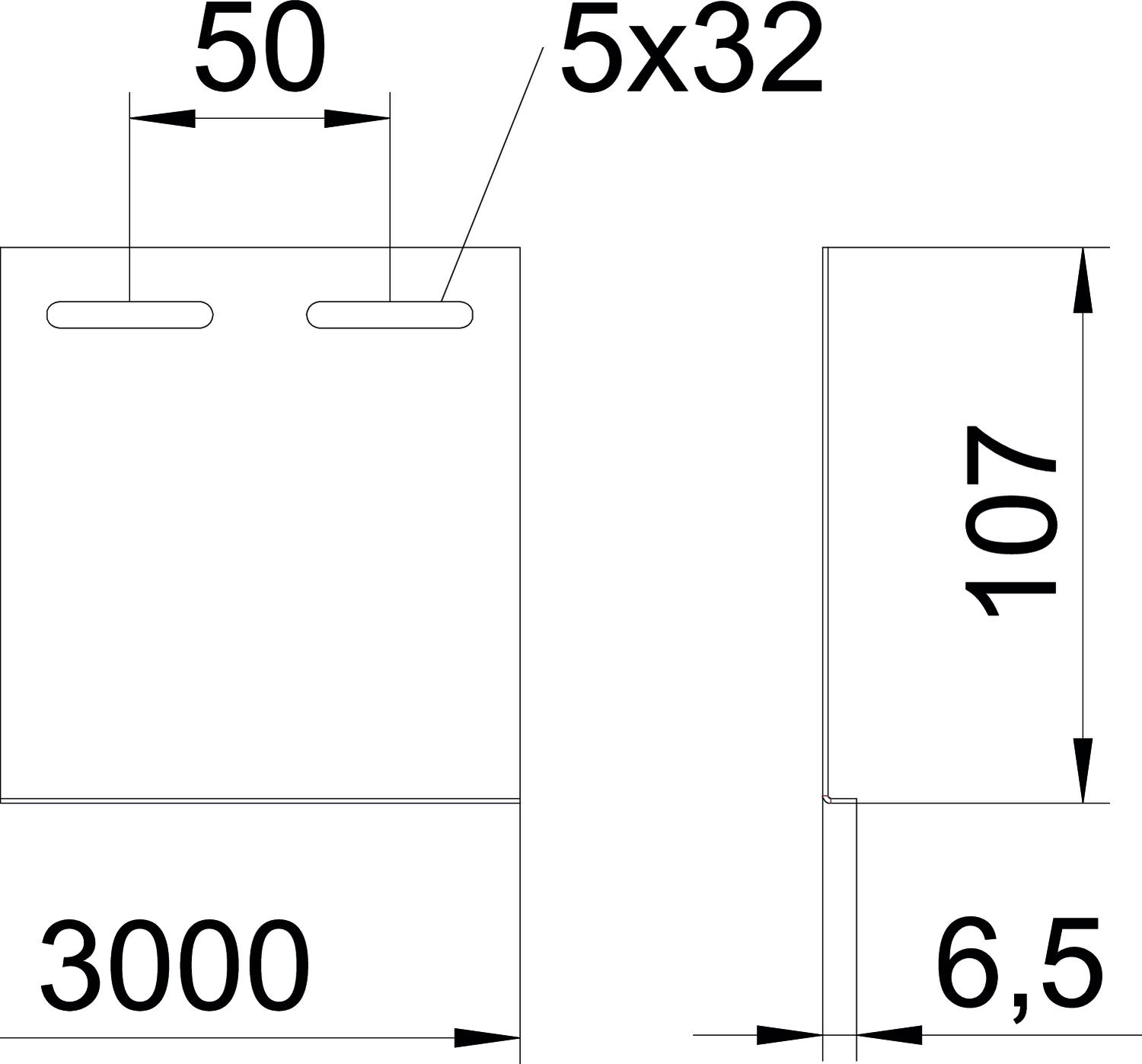

Dimension h 4 in Height 108 mm Length 10 ft Length 3000 mm Width 6,5 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece - Downloads
-
