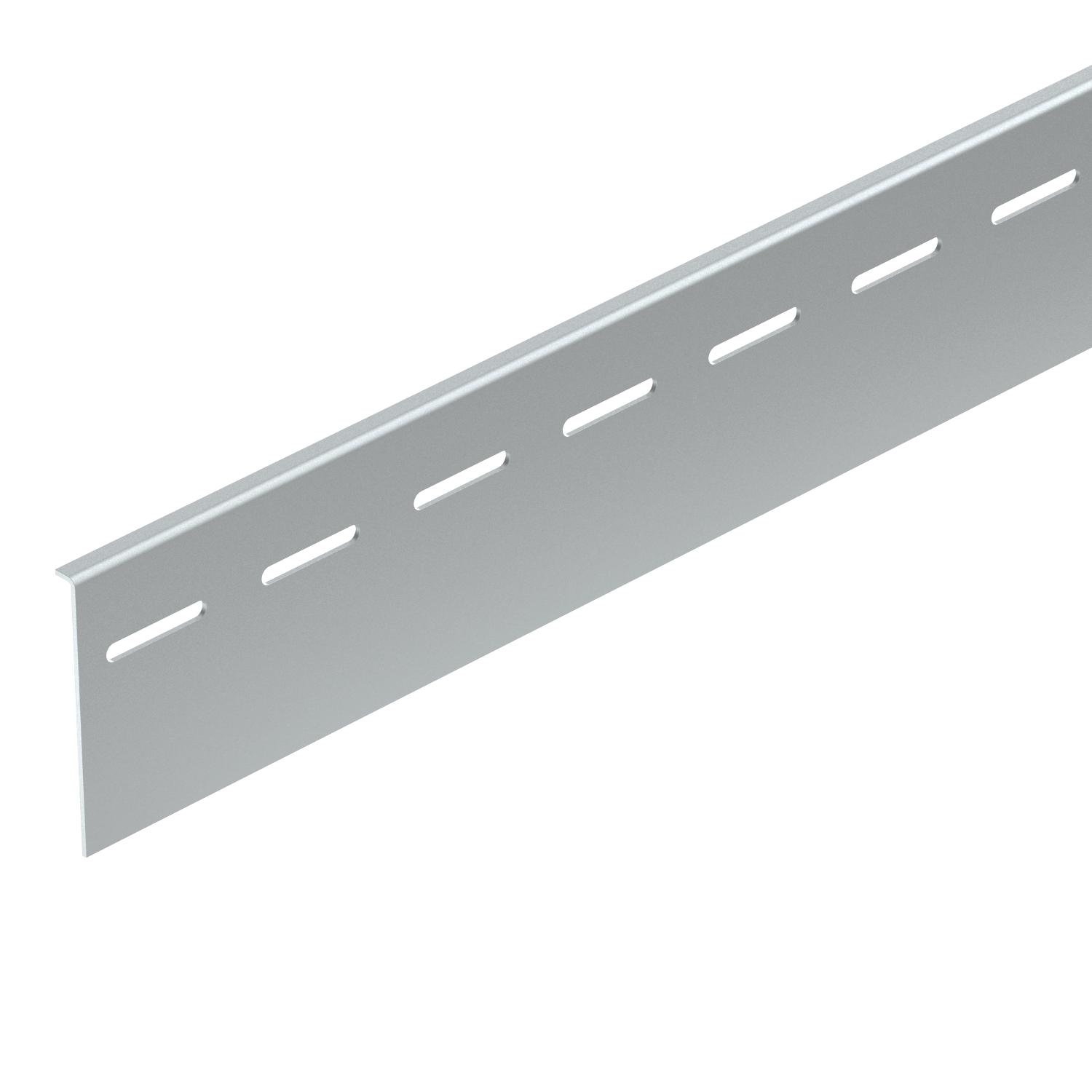

Protective panel FS
Item no. 6049241 | EAN 4012196640683
- Product description
-
Product description
Protective panel, to be attached at the side as a collision guard for the walkable cable tray system. The protective panel can be installed on the Z supports using lens metal screws, type SPHS.
-
- Technical data
-
Technical data
Accessories required yes Dimension 78x3000 Halogen-free yes Impact-resistant no Material Steel Polished surface no Rustproof steel, pickled no Surface Strip galvanized Thickness 1,5 mm Dimensions

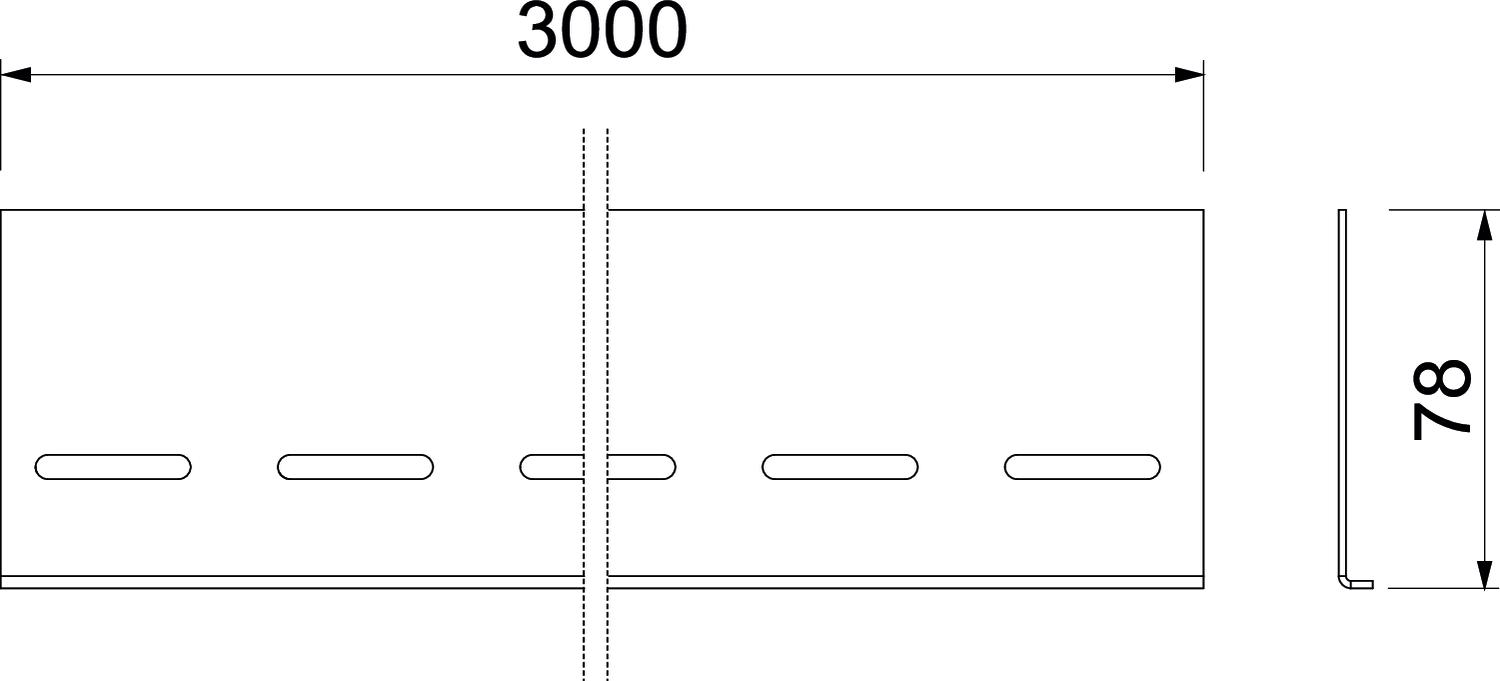

Height 78 mm Length 3000 mm Width 7 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU

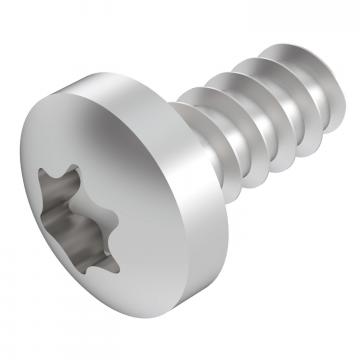

Lens head metal screw
SPHS 4,8x9,5 G 6049248 100 piece - Downloads
-
