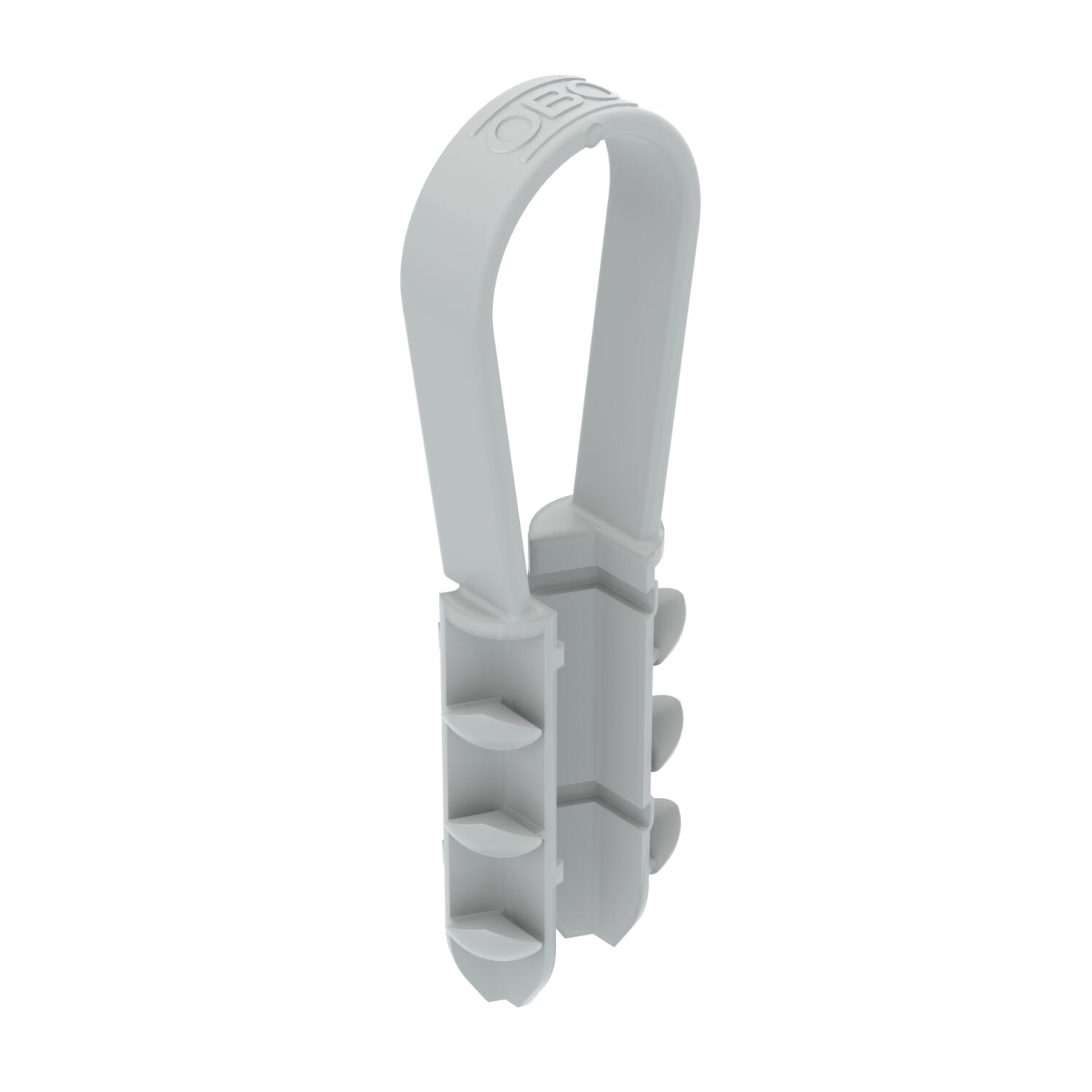

Push-fit anchor with loop fastening
Item no. 2351679 | EAN 4012197430863
- Product description
-
Product descriptionPush-fit anchor for mounting light loads in the electrical installation. Suitable for concrete, calcareous limestone, full brick, hollow brick. Toolless mounting by pushing into a drill hole in a wall or on a ceiling. Without screws. With reclosable loop for fastening cables.
-
- Technical data
-
Loads

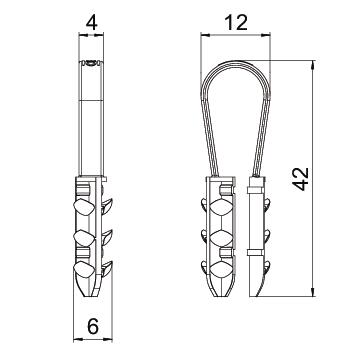

Breaking load vertically perforated brick 300 N Breaking load concrete 400 N Diameter 6 mm Dimension 41,0x14,0x7,5 Drill hole depth 35 mm Drill hole diameter, max. 6 mm Drill hole diameter, min. 6 mm Halogen-free yes Length 30 mm Material Polyamide Min. mounting temperature 5 °C Mounting temperature, max. 60 °C Mounting type, anchor, tie Pre-mounting Safe working load concrete 175 N Safe working load vertically perforated brick 130 N Suitable for fastening with cable ties no Suitable for hexagonal wood screw no Suitable for material Calcareous sandstone, Porous concrete, Concrete, Gas concrete, Full brick, Hollow brick Temperature resistance, min. -20 °C Temperature-resistance, max. 60 °C Version for Push-fit anchor With bolts no - All types
- Downloads
-
Mounting instructions Delta-Push®push-fit plug DP D 30, DP KB 30, DP GM6 30, DP S 30 , 0.65MB , pdf
