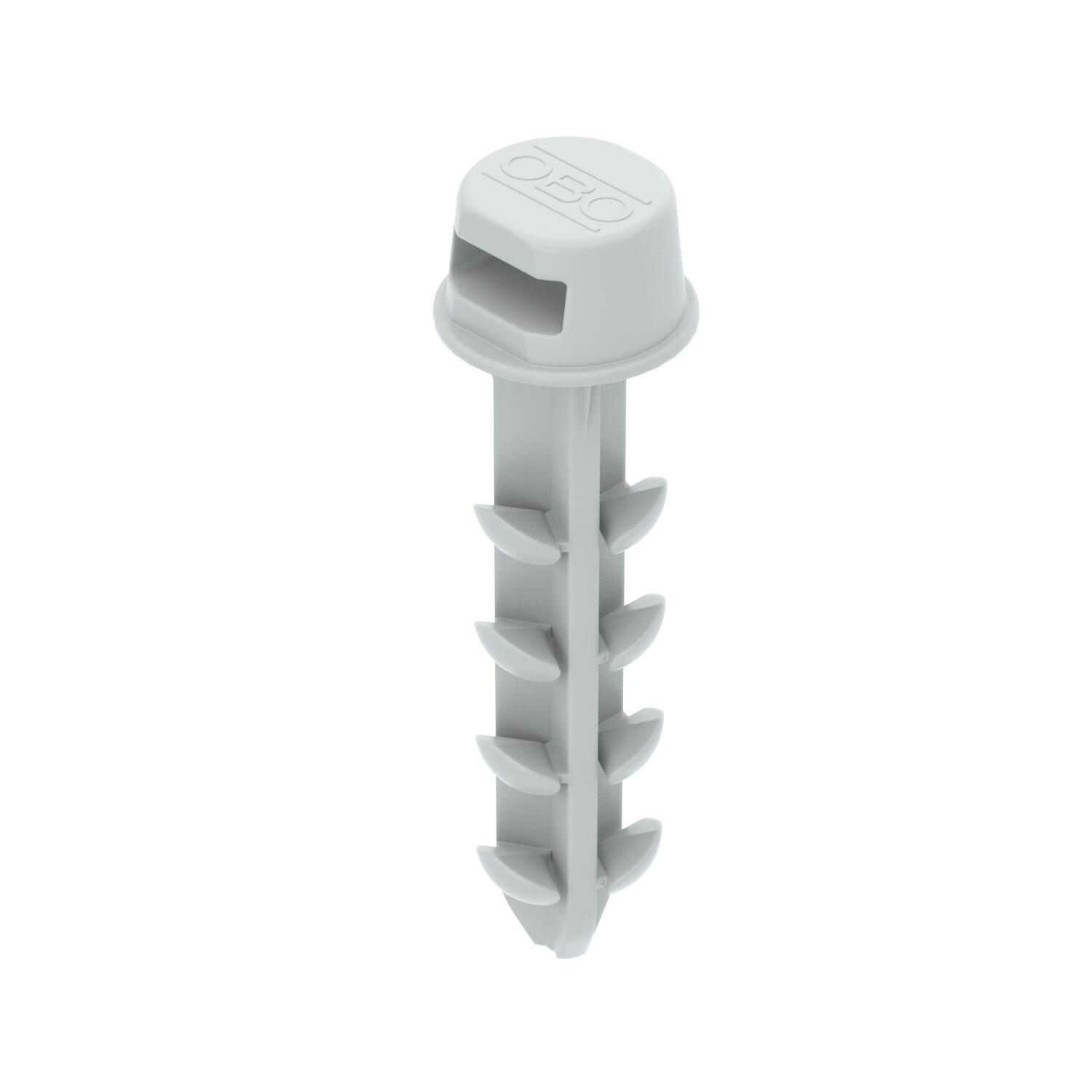

Push-fit plug Delta-Push® for cable ties
Item no. 2351676 | EAN 4012197430825
- Product description
-
Product descriptionPush-fit plug Delta-Push® for mounting electrical installations. Suitable for concrete, calcareous limestone, full brick, hollow brick and porous concrete. Toolless mounting by pushing into a drill hole in a wall or on a ceiling. Without screws. With cable tie seat up to 4.8 mm width and 2 mm hight to fasten cables and pipes.
-
- Technical data
-
Loads

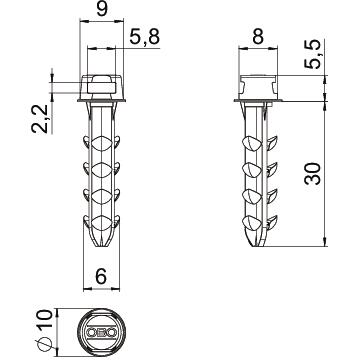

Breaking load vertically perforated brick 300 N Breaking load concrete 400 N Breaking load lime sandstone 400 N Diameter 6 mm Dimension 35,5x10,0x10,0 Drill hole depth 35 mm Drill hole diameter, max. 6 mm Drill hole diameter, min. 6 mm Halogen-free yes Length 30 mm Material Polyamide Min. mounting temperature 5 °C Mounting temperature, max. 60 °C Mounting type, anchor, tie Pre-mounting Safe working load concrete 175 N Safe working load lime sandstone 175 N Safe working load vertically perforated brick 130 N Suitable for fastening with cable ties yes Suitable for hexagonal wood screw no Suitable for material Calcareous sandstone, Porous concrete, Concrete, Gas concrete, Full brick, Hollow brick Temperature resistance, min. -20 °C Temperature-resistance, max. 60 °C Version for Push-fit anchor With bolts no - All types
-
Mounting accessories
Products Types Item no. Quantity SSU

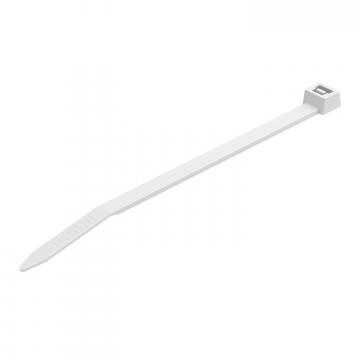

Cable tie, white
565 4.8x120 WS 2331860 100 piece

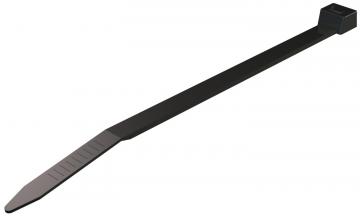

Cable tie, black, UV and weather-resistant
565 4.8x120 SWUV 2331862 100 piece
Cable tie, white
565 4.8x160 WS 2331866 100 piece
Cable tie, black, UV and weather-resistant
565 4.8x160 SWUV 2331868 100 piece
Cable tie, white
565 4.8x200 WS 2331872 100 piece
Cable tie, black, UV and weather-resistant
565 4.8x200 SWUV 2331874 100 piece
Cable tie, white
565 4.8x300 WS 2331878 100 piece
Cable tie, black, UV and weather-resistant
565 4.8x300 SWUV 2331880 100 piece
Cable tie, white
565 4.8x365 WS 2331884 100 piece
Cable tie, black, UV and weather-resistant
565 4.8x365 SWUV 2331886 100 piece
Cable tie, white
565 4.8x430 WS 2331890 100 piece
Cable tie, black, UV and weather-resistant
565 4.8x430 SWUV 2331892 100 piece - Downloads
-
Data sheet DP KB 30 / 2351676 , 0.15MB , pdfMounting instructions Push-fit anchor Delta-Push® DP D 30, DP KB 30, DP GM6 30 , 0.51MB , pdf
