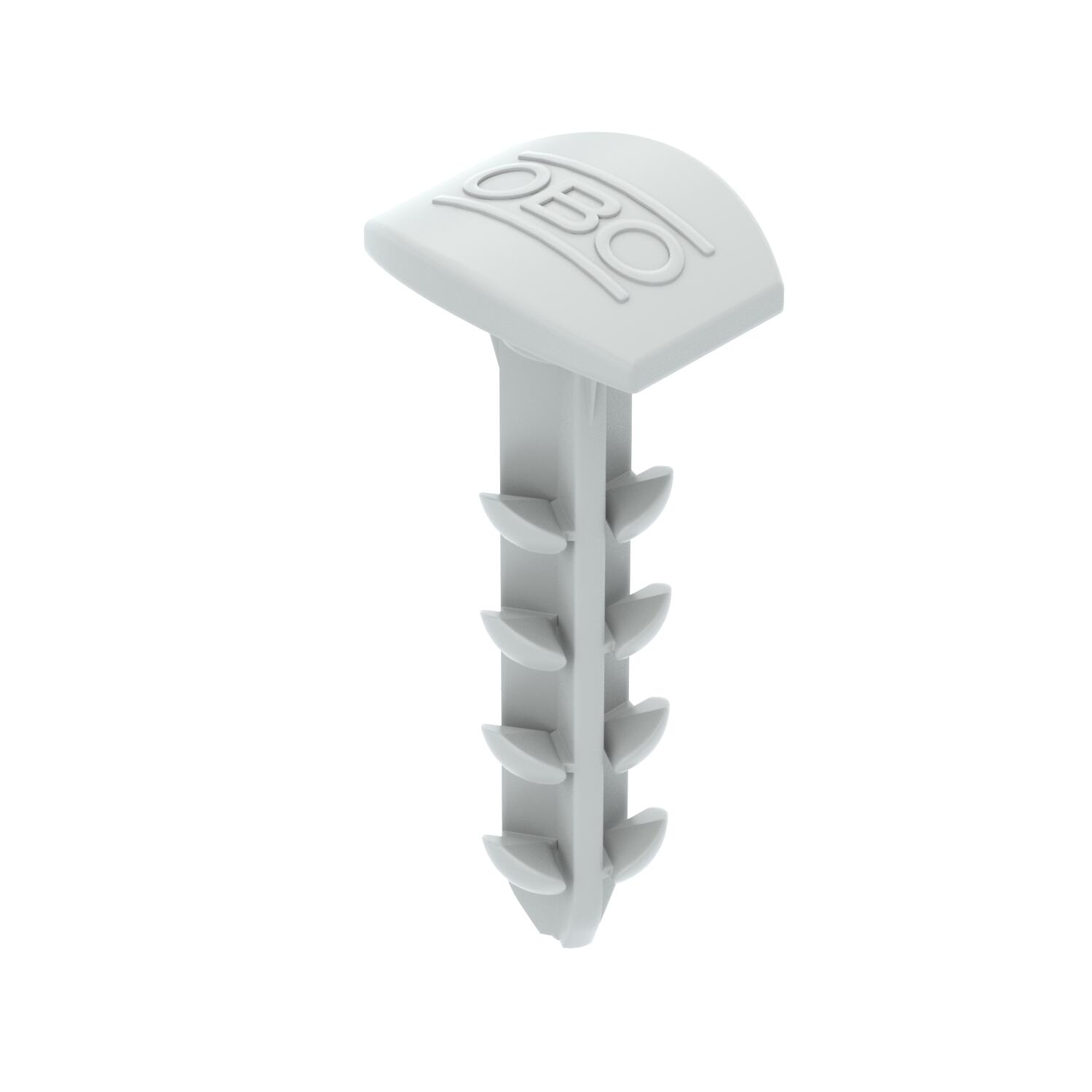

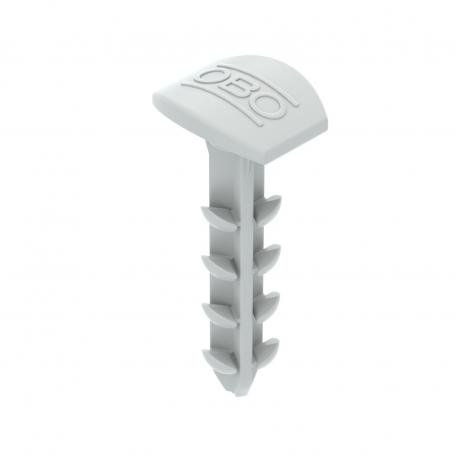

Push-fit plug Delta-Push® for pushing in
Item no. 2351670 | EAN 4012197430740
- Product description
-
Product descriptionPush-fit plug Delta-Push® for mounting electrical installations. Suitable for concrete, calcareous limestone, full brick, hollow brick and porous concrete. Toolless mounting by pushing into a drill hole in a wall or on a ceiling. Without screws. To install cable trunking or labelling panels, for example.
-
- Technical data
-
Loads

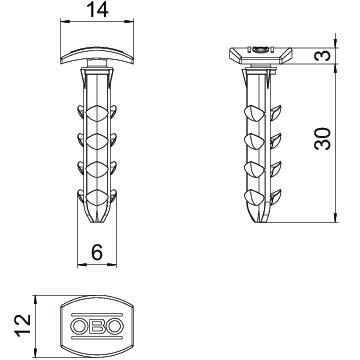

Breaking load vertically perforated brick 300 N Breaking load concrete 400 N Breaking load lime sandstone 400 N Diameter 6 mm Dimension 34,2x14,2x12,2 Drill hole depth 35 mm Drill hole diameter, max. 6 mm Drill hole diameter, min. 6 mm Halogen-free yes Length 30 mm Material Polyamide Min. mounting temperature 5 °C Mounting temperature, max. 60 °C Mounting type, anchor, tie Push-through mounting Safe working load concrete 175 N Safe working load lime sandstone 175 N Safe working load vertically perforated brick 130 N Suitable for fastening with cable ties no Suitable for hexagonal wood screw no Suitable for material Calcareous sandstone, Porous concrete, Concrete, Gas concrete, Full brick, Hollow brick Temperature resistance, min. -20 °C Temperature-resistance, max. 60 °C Version for Push-fit anchor With bolts no - All types
- Downloads
-
Data sheet DP D 30 / 2351670 , 0.15MB , pdfMounting instructions Push-fit anchor Delta-Push® DP D 30, DP KB 30, DP GM6 30 , 0.51MB , pdf
