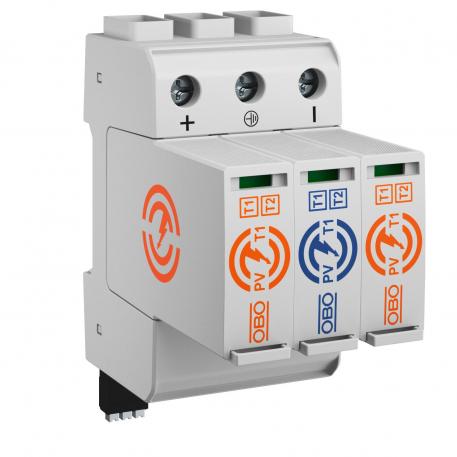

PV combination arrester 1,100 V with remote signalling
Item no. 5094258 | EAN 4012197504038
- Product description
-
Product descriptionCombination arrester, type 1+2, for PV systems
• Complete unit of pluggable varistor arrester with cut-off unit
• Surge protection equipotential bonding to IEC 60364-7-712
• Tested according to EN 61643-31
• Discharge capacity up to 6.25 kA (10/350) and 40 kA (8/20) per pole
• Low DC protection level: < 3.8 kV and Uoc max = 1,100 V DC
• With visual function display for the use in distributer housings
• Including a potential-free changeover contact for remote signalling
-
- Technical data
-
Connectivity options

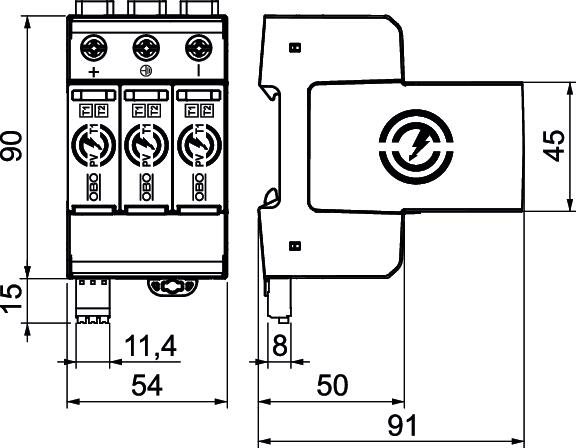

Arrester surge current (8/20 µs) [total] 50 kA Conductor cross-section, flexible (fine-wire), max. 4 AWG Conductor cross-section, flexible (fine-wire), max. 25 mm² Conductor cross-section, flexible (fine-wire), min. 1,5 mm² Conductor cross-section, flexible (fine-wire), min. 16 AWG Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm² Conductor cross-section, rigid (single-wire/multiwire), max. 2 AWG Conductor cross-section, rigid (single-wire/multiwire), min. 16 AWG Conductor cross-section, rigid (single-wire/multiwire), min. 1,5 mm² Connection cross-section, FM terminals, max. 16 AWG Connection cross-section, FM terminals, max. 1,5 mm² Connection cross-section, FM terminals, min. 23 AWG Connection cross-section, FM terminals, min. 0,25 mm² DC network form yes Dimension 1100V DC FM contacts Changeover Height 110 mm Humidity, max. 95 % Humidity, min. 5 % Installation type DIN rail 35 mm Integrated back-up fuse no IT network form no Length 91 mm Lightning protection zone LPZ 0→2 Lightning surge current (10/350 μs) 6,25 kA Lightning surge current (10/350) 12,5 kA Max. mains-side overcurrent protection 160 Max. PV voltage 1100 V Maximum back-up fuse 160 A Maximum continuous voltage DC 1100 V Maximum discharge current (8/20 μs) 40 kA Network form DC Nominal discharge current (8/20 µs) 30 kA Nominal discharge current (8/20 µs) [L-N] 30 kA OBO_Nominal load current (input/output terminal) 50 A Other network form no Permitted temperature range, max. 85 °C Permitted temperature range, min. -40 °C Pole number 3 Pole version Other Protection rating IP20 Remote signalling yes Response time <25 ns Signalling on device Visual SPD to EN 61643-11 Type 1+2 SPD to IEC 61643-1 Class I+II Suitable for outdoor use no Switching power AC 250 V; 1,0 A / 125 V; 1,0 A Switching power DC 48 V; 0,5 A / 24 V; 0,5 A / 12 V; 0,5 A TN network form no TN-C network form no TN-C-S network form no TN-S network form no Torque 4,5 Nm TT network form no Version for 3-pole for PV systems Width 54 mm - All types
- Downloads
-
Mounting instructions PV CombiController PV-T1+2 , 0.57MB , pdfNo invitation to tender text is available for this product.
