PYROLINE® Con S BSK I90/E30 protection duct 1000 | 338 | 210 | 195 | 105

PYROLINE® Con S BSK I90/E30 protection duct

Item no. 7215187 | EAN 4012197308421

Item no. / Types

Length	1000 mm

Dimension B

Dimension b

Dimension H

Dimension h

Product description

Product description

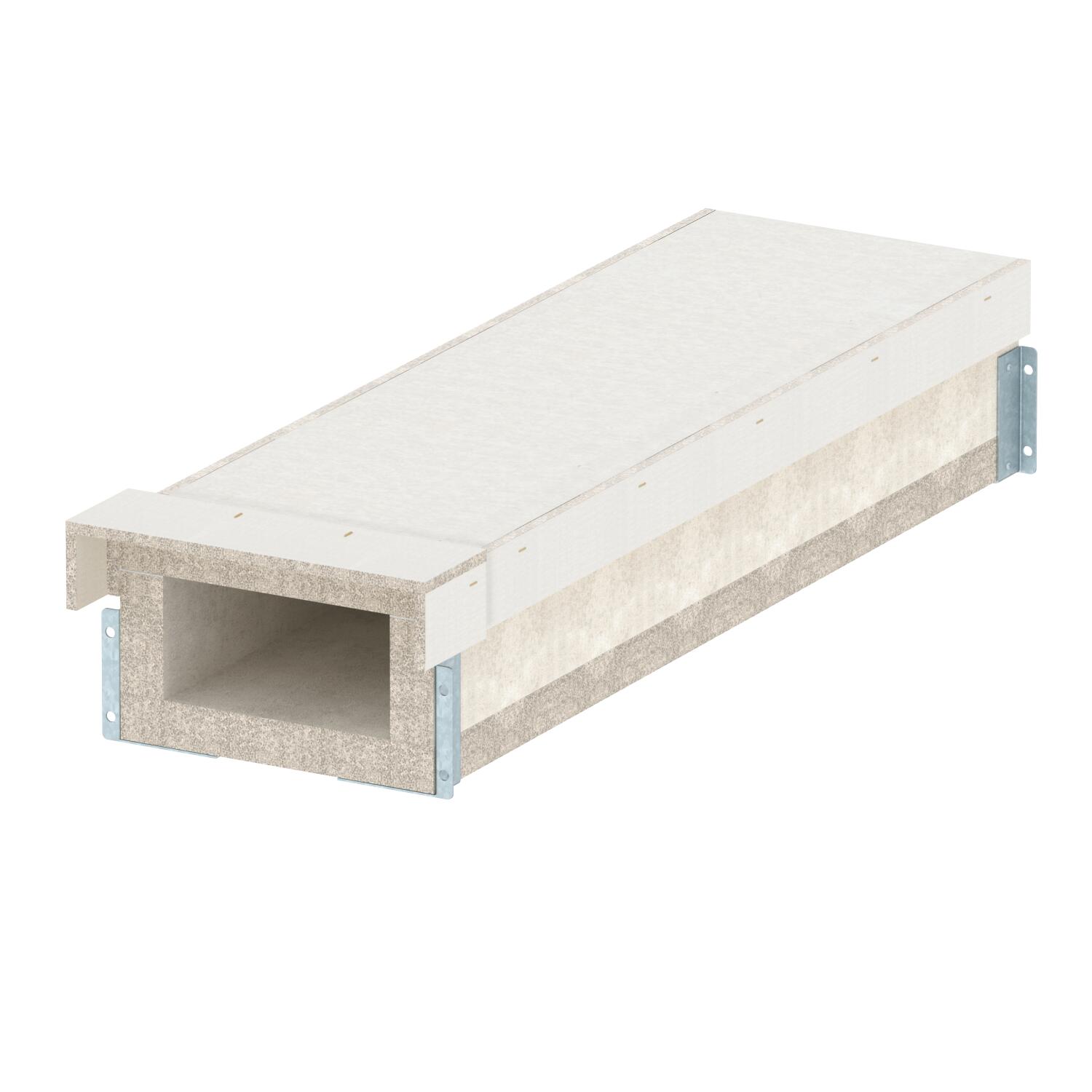

Fire protection duct made from water and frost-proof fibreglass light concrete of building material class A1 according to EN 13501-1 for fireproof laying of cables in rescue and emergency routes, and for the maintenance of electrical functionality of safety-relevant systems. Classification I90 as I duct according to DIN 4102 Part 11 and classification E30 as E duct according to DIN 4102 Part 12.

Mounting of the duct on wall brackets or as ceiling mounting with suspended supports and brackets or on a U transverse profile suspended with threaded rods. Mounted connectors ensure quick mounting in situ, whilst loosely placed covers ensure quick inspection and reassignment.

Fire protection duct with cover and pre-mounted connection fittings, connection crews and sealing strips.

Technical data

Technical data

Colour	Grey
Cover fastening	Loose
Dimension	1000x105x210

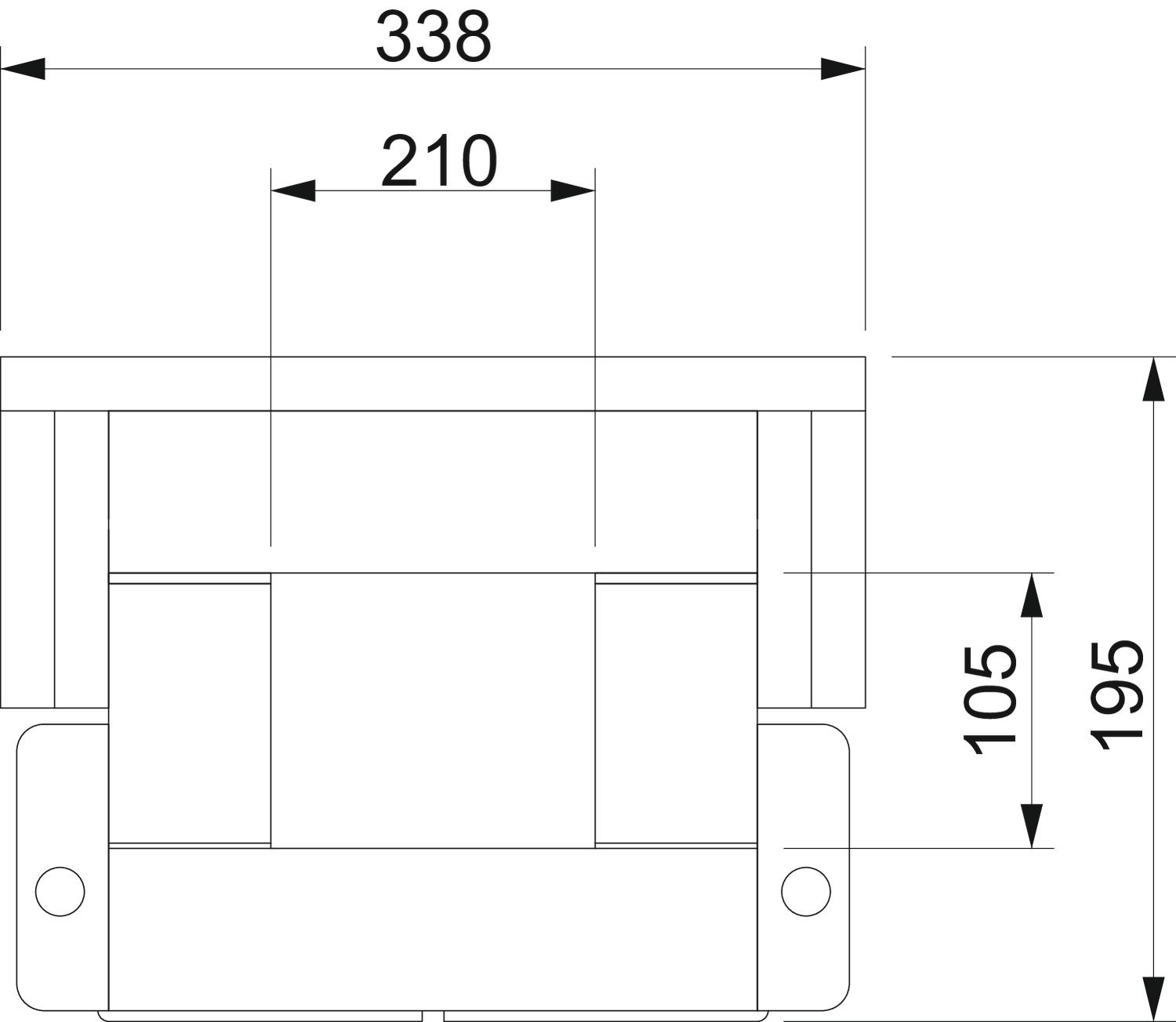

Dimension B	338 mm
Dimension b	210 mm
Dimension H	195 mm
Dimension h	105 mm
Fire resistance class E − function maintenance	30
Fire resistance class I − installation duct	90
Height	195 mm

Jacketing	Without
Length	1000 mm
Material	Fibreglass lightweight concrete
Material of the insulation	Glass-fibre lightweight concrete
Number of flammable sides	4
Partitions possible	yes
Usable cross-section	22050 mm²
Width	338 mm
With perforation	no

All types

All types

Types	Length	Dimension B	Dimension b	Dimension H	Dimension h	Item no.	Quantity	SSU
BSKH09-K0506	1000 mm	188 mm	60 mm	140 mm	50 mm	7215175	m	1 m
BSKH09-K0511	1000 mm	238 mm	110 mm	140 mm	50 mm	7215179	m	1 m
BSKH09-K0521	1000 mm	338 mm	210 mm	140 mm	50 mm	7215183	m	1 m
BSKH09-K1021	1000 mm	338 mm	210 mm	195 mm	105 mm	7215187	m	1 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU

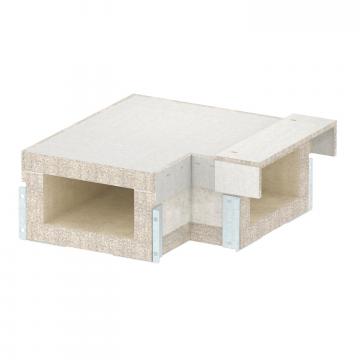

90° bend for PYROLINE® Con S BSKH09-K1021 fire protection duct	BSKH09-B1021	7215616	piece	1 piece

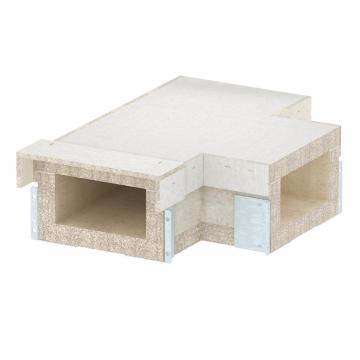

T piece for PYROLINE® Con S BSKH09-K1021 fire protection duct	BSKH09-T1021	7215645	piece	1 piece

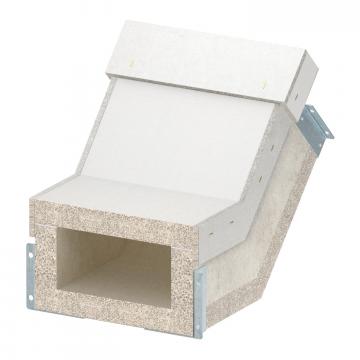

Rising vertical bend for PYROLINE® Con S BSKH09-K1021 fire protection duct	BSKH09-VS1021	7215656	piece	1 piece

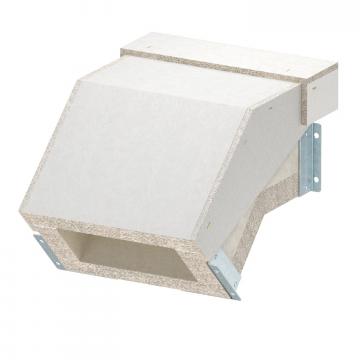

Falling vertical bend for PYROLINE® Con S BSKH09-K1021 fire protection duct	BSKH09-VF1021	7215666	piece	1 piece

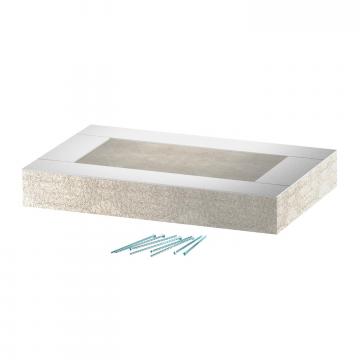

End piece for PYROLINE® Con S BSKH09-K1021 fire protection duct	BSKH09-E1021	7215597	piece	1 piece
Doubler for PYROLINE® Con fire protection duct	KAD-8040	7215464	piece	1 piece
Doubler for PYROLINE® Con fire protection duct	KAD-10040	7215462	piece	1 piece
Fire protection duct mortar	KTM	7215500	piece	1 piece
Threaded rod adapter E30	KGA	7215395	piece	1 piece
Separating retainer 45 FS	TSG 45 FS	6062033	m	3 m
Separating retainer 85 FS	TSG 85 FS	6062114	m	3 m
Bolt for separating retainer fastening, KRS 6x30	KRS 6x30	3498100	piece	200 piece
Identification plate	KS-K DE	7214734	piece	10 piece
Identification plate for maintenance of electrical function	KS-E DE	7205423	piece	10 piece
