Quick clip, aluminium
Item no. 2149916 | EAN 4012196409235
- Product description
-

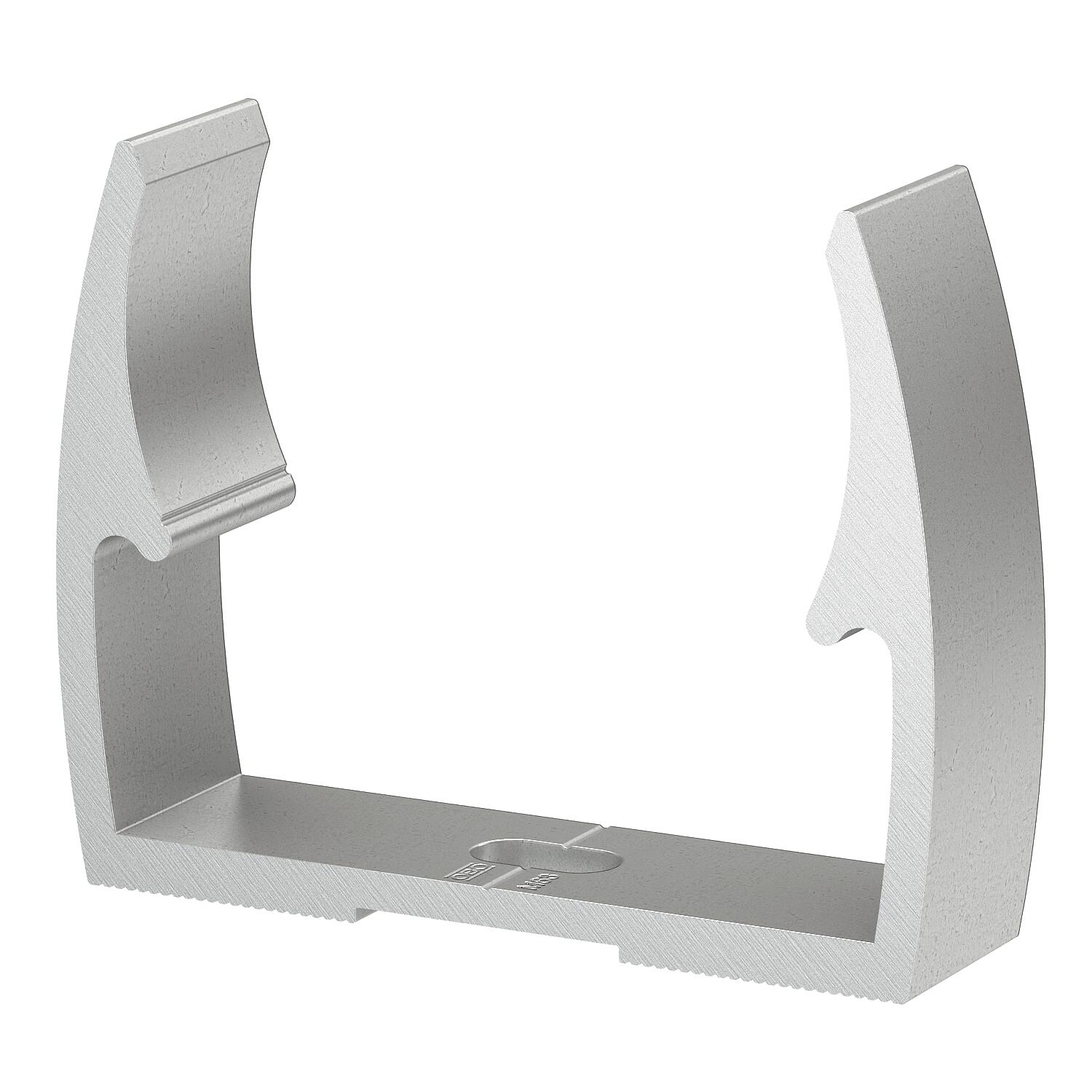

Product descriptionOBO Quick clip, type ALQ M, for all metric ALU pipe systems, as well as light-duty and heavy-duty insulation pipes. Suitable for mounting the OBO pipe system, material: aluminium. Pipe centring aids allow optimal attachment of the pipe and automatically turn the clip into the correct position.
Slot for side alignment during mounting with wood screw or knock-in anchor.
Recommended fastening spacing 50−60 cm.
-
- Technical data
-
Technical data

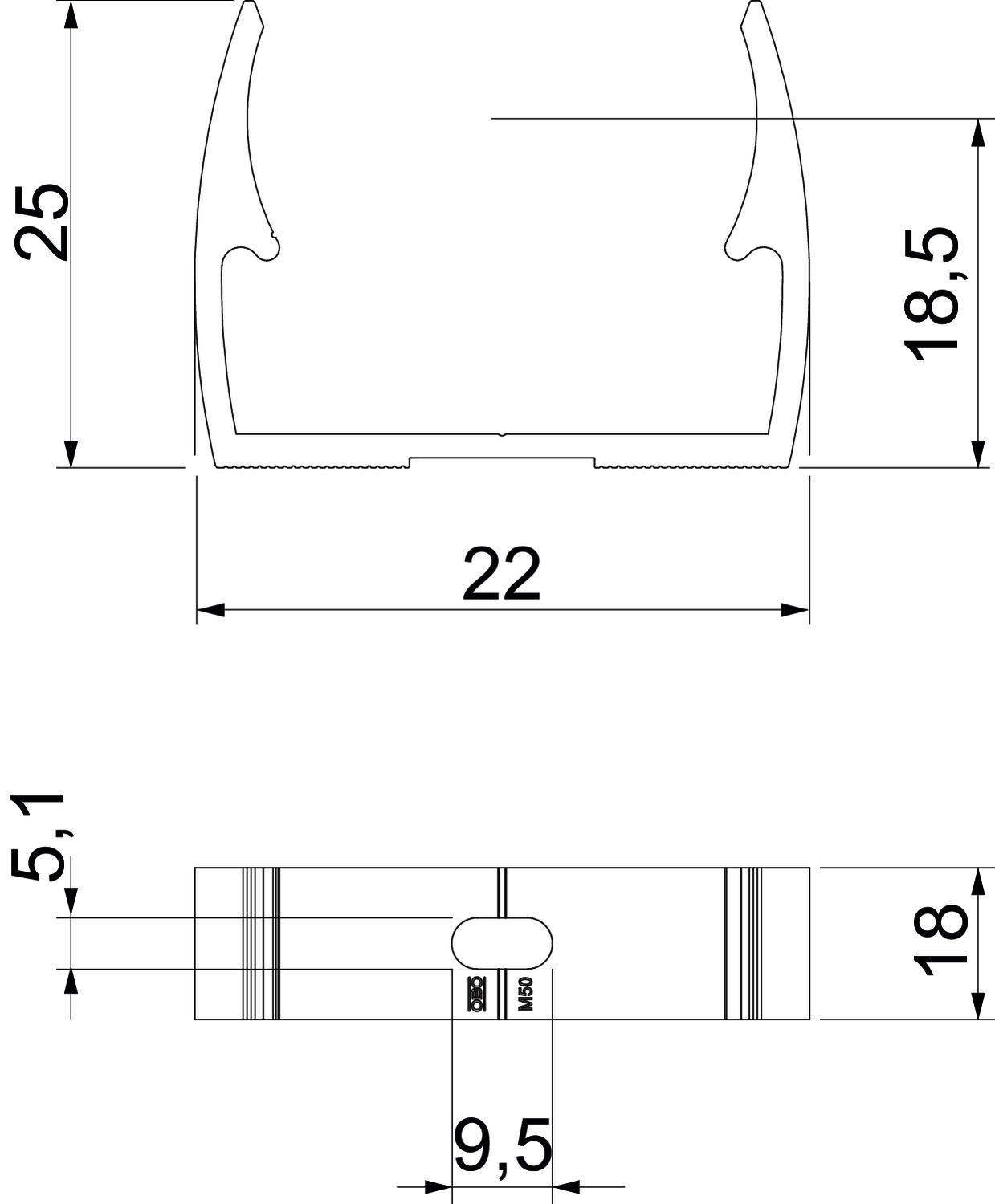

Clamping range D, max. 16 mm Clamping range D, min. 16 mm Closed no CO2 Footprint (GWP) Cradle-to-Gate 0,1324 kg CO2e / 1 Piece Dimension M16 Dimension A 22 mm Dimension B 18 mm Dimension E 5,1 mm Dimension F 9,5 mm Dimension H 25 mm Dimension h 18,5 mm Expandable no Fastening type Screw hole Halogen-free no Material Aluminium Nominal size 16 Number of cables/pipes 1 Permitted temperature range, max. 90 °C Permitted temperature range, min. -25 °C Pull-out value 55 N Resistance against corrosion High Resistance to axial load 15 N Resistance to impact 2 J Resistance to lateral load 105 N UV-resistant yes With inlay no - All types
