Quick clip, light grey
Item no. 2149034 | EAN 4012195588191
- Product description
-

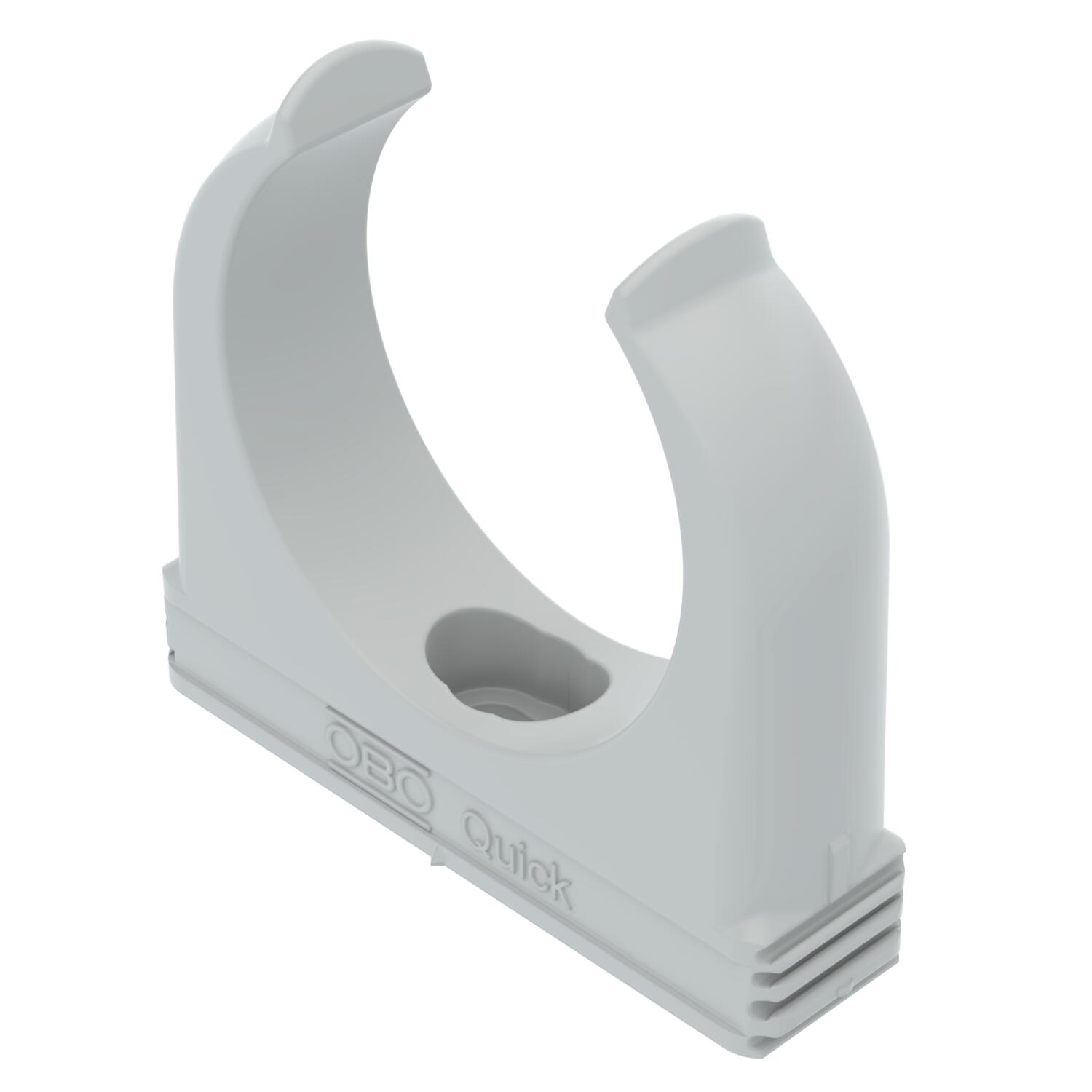

Product descriptionFlush-mounted clip to accept metric steel armoured pipes and heavy-duty insulating pipes, as well as Quick-Pipe® electrical installation pipes. Universal fastening options on walls and ceilings, both in indoor and protected outdoor areas. With slot for side alignment during mounting with wood screw or knock-in anchor. Toolless pipe mounting. Can also be arranged with OBO Multi-Quick or proQuick clip. M16 - M32 size can be screwed onto M6 thread. Recommended fastening spacing 50–60 cm, for max. extraction values F at a room temperature of 20 °C, see the table.
-
- Technical data
-
Technical data

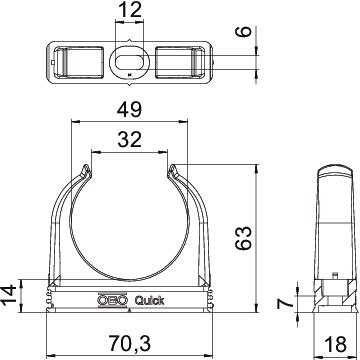

Breaking load 0,17 kN Clamping range D, max. 50 mm Clamping range D, min. 50 mm Closed no CO2 Footprint (GWP) Cradle-to-Gate 0,0608 kg CO2e / 1 Piece Colour Light grey; RAL 7035 Dimension M50 Dimension A 70,3 mm Dimension B 18 mm Dimension C 32 mm Dimension D 49 mm Dimension E 12 mm Dimension F 6 mm Dimension H 63 mm Dimension h 14 mm Expandable yes Fastening type Screw hole Halogen-free yes Material Polypropylene Nominal size M50 Number of cables/pipes 1 Pipe/cable diameter, max. 50 mm Pipe/cable diameter, min. 50 mm Pull-out value 135 N UV-resistant no With inlay no - All types
- Downloads
-
Data sheet 2955 M50 / 2149034 , 0.22MB , pdfBrochure Quick Pipe , 1.44MB , pdfEU declaration of conformity 2955 M50 / 2149034 , 0.10MB , pdfUK Declaration of Conformity 2955 M50 / 2149034 , 0.09MB , pdfREACH Declaration of conformity 2955 M50 / 2149034 , 0.12MB , pdfRoHS Declaration of conformity 2955 M50 / 2149034 , 0.13MB , pdfLabel approval VDE symbol approval, Quick clip , 0.28MB , pdf
