RKSN2 4 with UT3 45

Item no. 7429678 | EAN 4012196086870

Product description
Product description
Height-adjustable cassette with all necessary system accessories for direct installation in false ceilings for indoor use.

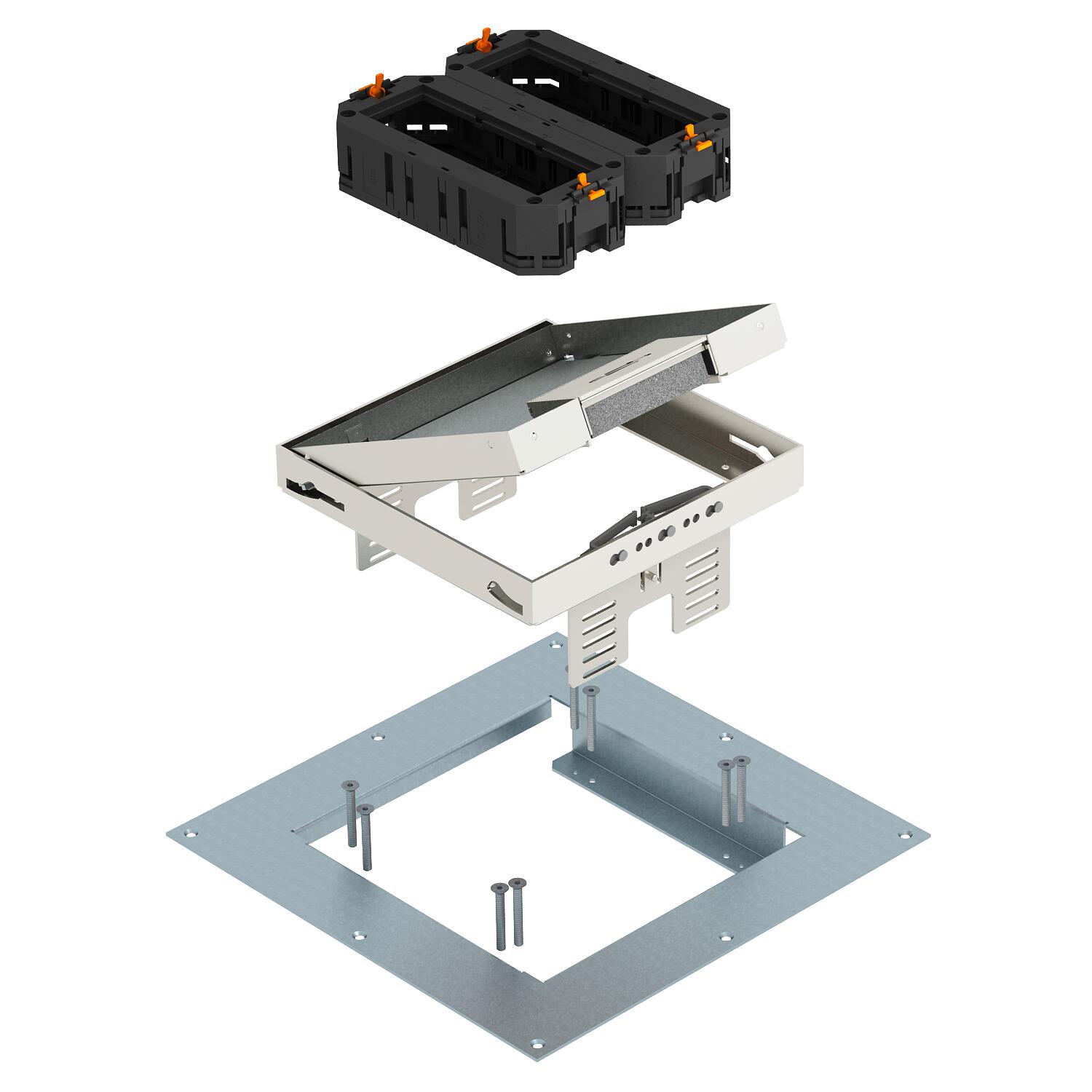

The scope of delivery contains a mounting lid and two UT3/45 universal supports, each for three Modul 45® devices.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
Technical data

Technical data

Cable outlet version Swivellable cord outlet
CO2 Footprint (GWP) Cradle-to-Gate 20,1928 kg CO2e / 1 Piece
Floor covering thickness 20 mm
Material Stainless steel 1.4301
Protection rating (IP) when unused IP40
Protection rating (IP) when used IP20
Protection rating IK code IK10
Vertical load, large area to 3,000 N
Vertical load, small area to 3,000 N
All types

All types

Types Item no. Quantity SSU
RKSN2 4 KR V20 7429678
1 piece
Downloads

Download
Download

Download

REACH Declaration of conformity RKSN2 4 KR V20 / 7429678 , 0.12MB , pdf
Download
RoHS Declaration of conformity RKSN2 4 KR V20 / 7429678 , 0.13MB , pdf
Download

Download

No invitation to tender text is available for this product.
