Rung support plate for the maintenance of electrical function FT 280 | 1.5
morepic-1 morepic-2 video-1 video-2 video-3

Rung support plate for the maintenance of electrical function FT

Item no. 6223036 | EAN 4012196167470

1.5 mm
Product description
Product description

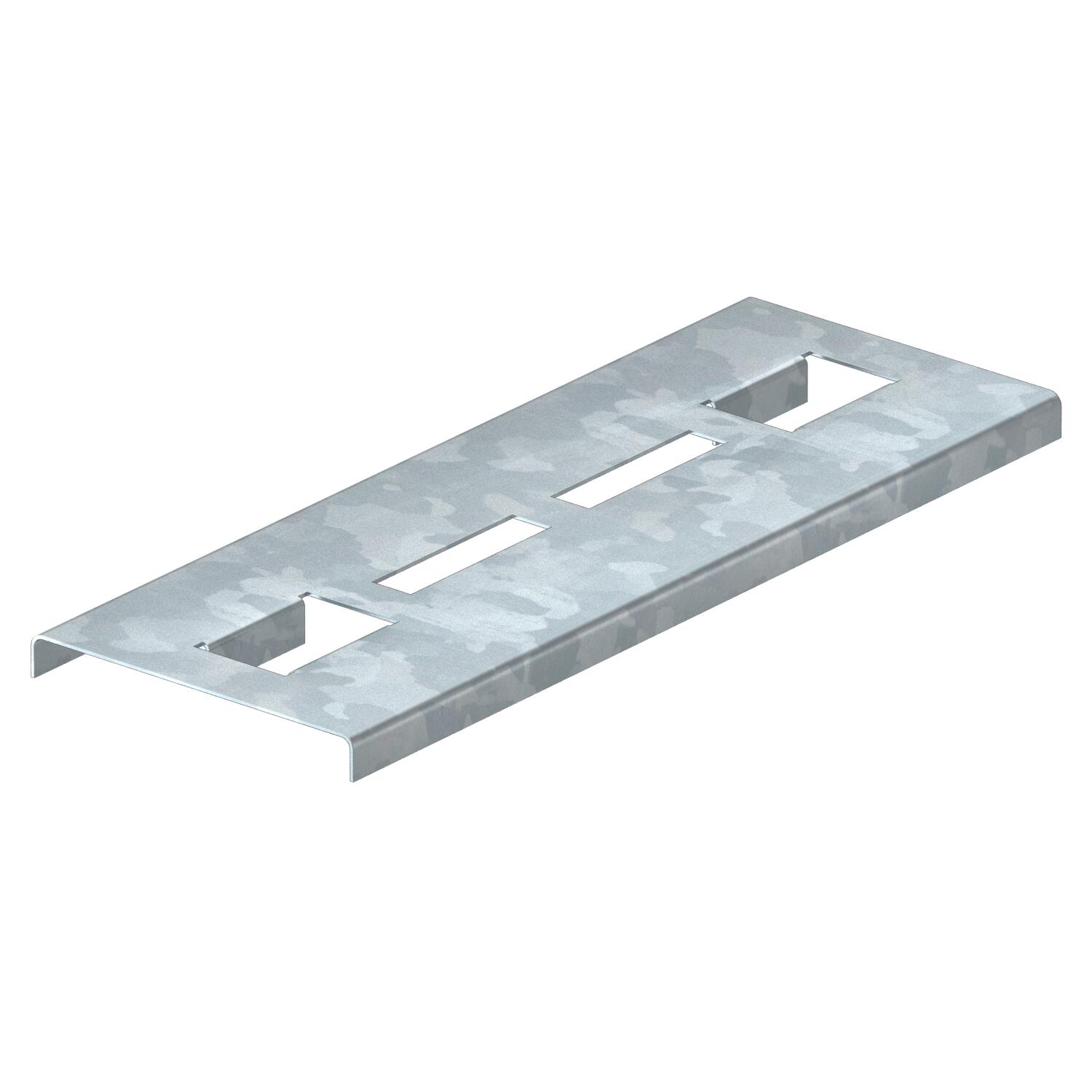

Rung support plates to increase the support surface for the cables in the fittings for routing types with cable ladders for the maintenance of electrical function to DIN 4102 Part 12. Use the rung support plates to ensure the largest possible support surface in the cable ladder fittings for the function maintenance cables in case of fire. The rung support plates are just laid loosely on the rungs of the cable ladder fittings. The lugs pointing down prevent slippage.

For cable ladder width 300 mm.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

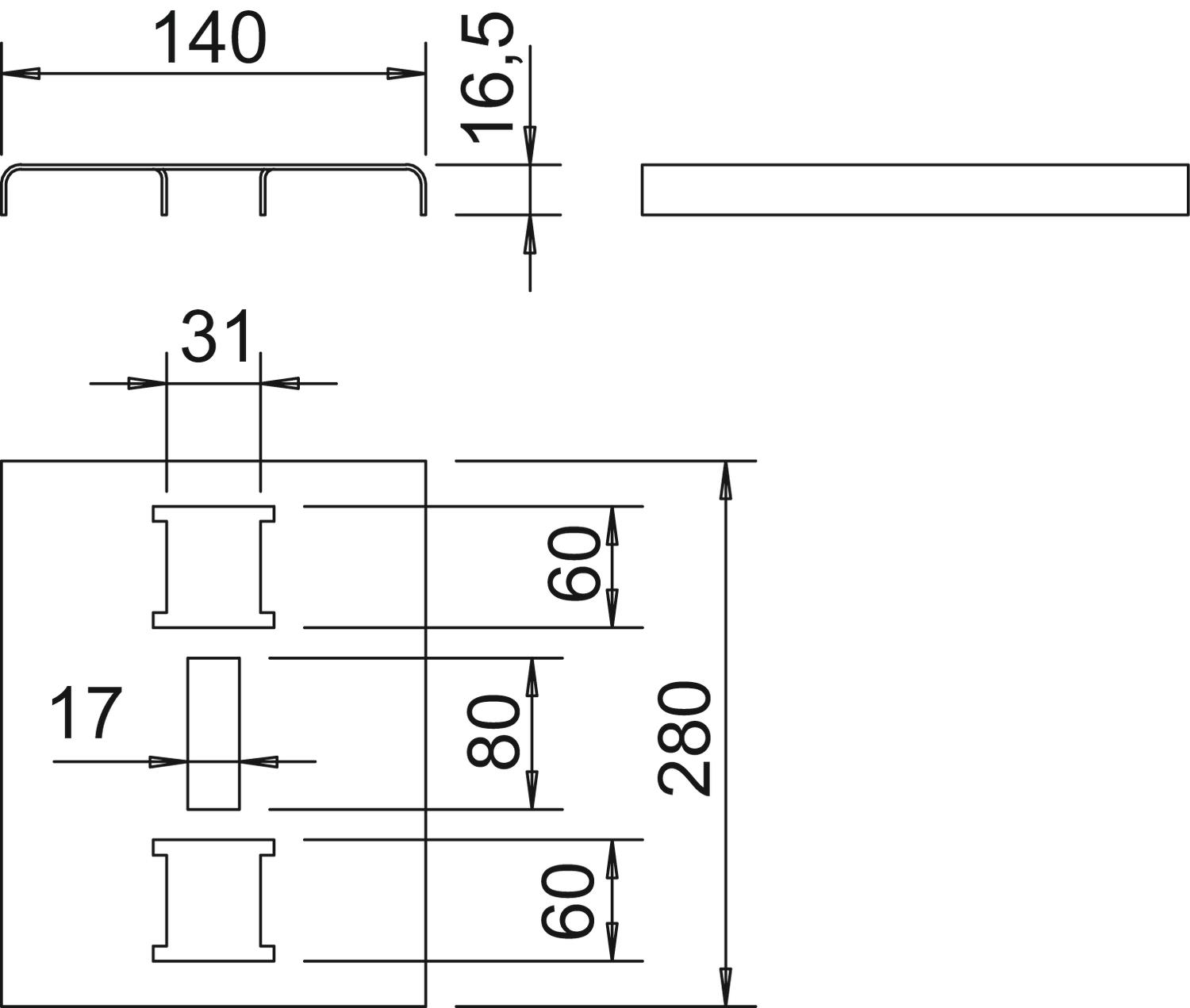

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 1,3034 kg CO2e / 1 Piece
Colour zinc
Dimension 280x140x16,5
Dimension a 60 mm
Dimension b 80 mm
Dimension B 280 mm
Height 16,5 mm
Material Steel
Material thickness 1,5 mm
Surface Hot-dip galvanised
Width 280 mm
All types

All types

Types Width Material thickness Item no. Quantity SSU
SAB30 FT 280 mm 1.5 mm 6223036
25 piece
SAB40 FT - 1.5 mm 6223044
25 piece
Downloads

Download

Download
Download
Download

REACH Declaration of conformity SAB30 FT / 6223036 , 0.12MB , pdf
Download
RoHS Declaration of conformity SAB30 FT / 6223036 , 0.13MB , pdf
Download

No invitation to tender text is available for this product.
