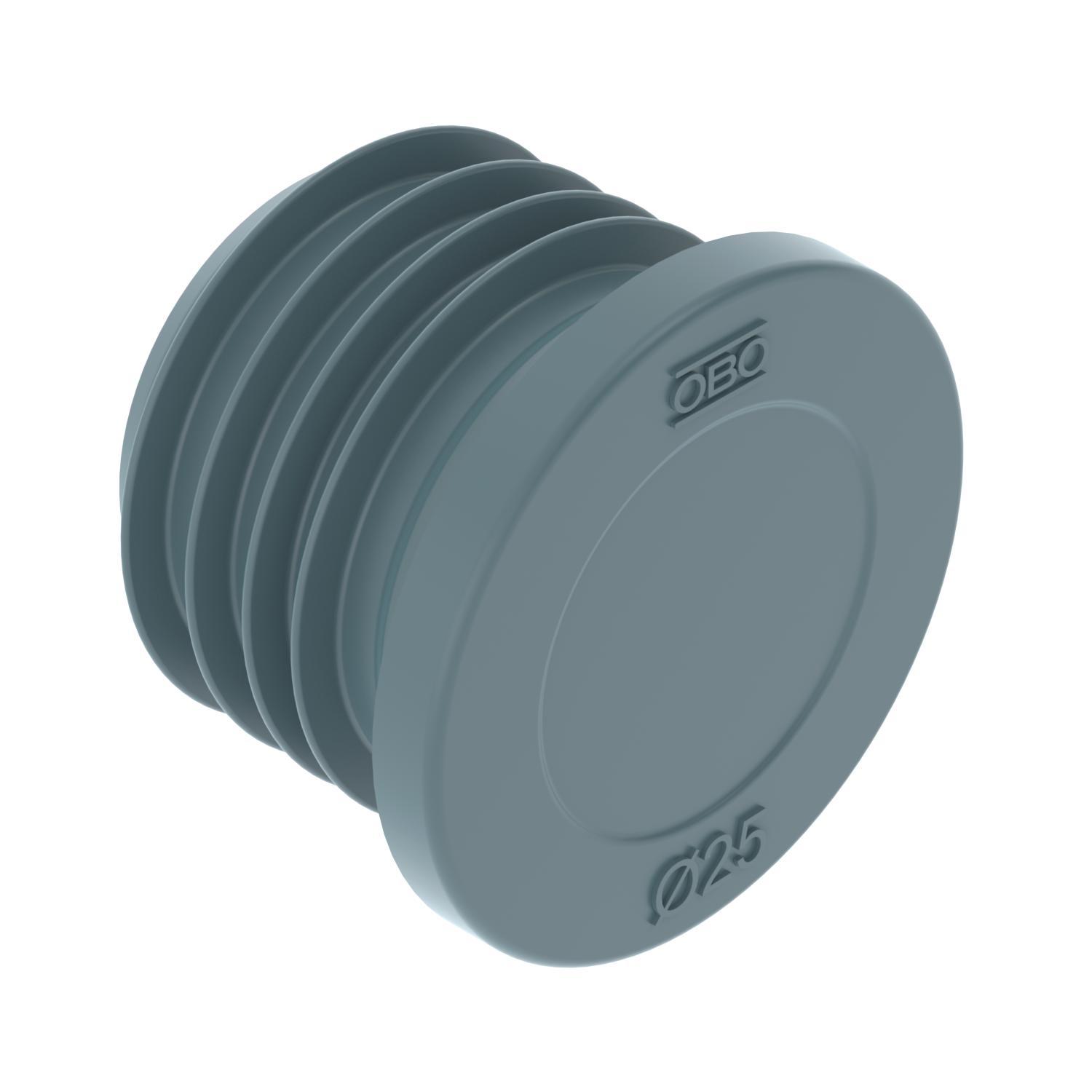

Sealing plug

Item no. / Types

Suitable for metric thread dimension

Product description

Product description

Sealing plug to close empty pipes.

Technical data

Flame-resistant	Acc. to VDE 0471/IEC 60695-2-11, test temperature 850°C
Material	Thermoplastic elastomer
Suitable for metric thread dimension	25

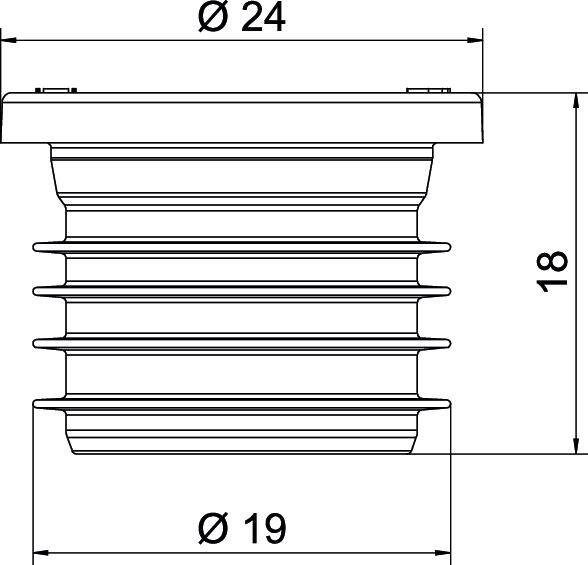

Dimension D1	24 mm
Dimension D2	19 mm

Dimension L	18 mm

All types

Types	Suitable for metric thread dimension	Item no.	Quantity	SSU
ZA 20-VS	20	2003737	piece	25 piece
ZA 25-VS	25	2003738	piece	25 piece

Downloads

Data sheet ZA 25-VS / 2003738 , 0.15MB , pdf

Brochure The new flush-mounted and cavity wall box portfolio , 6.81MB , pdf

Mounting instructions Mounting instructions, UP flush-mounted device boxes , 12.98MB , pdf
