Series terminals 10 mm², polypropylene
Item no. 2056716 | EAN 4012197471293
- Product description
-

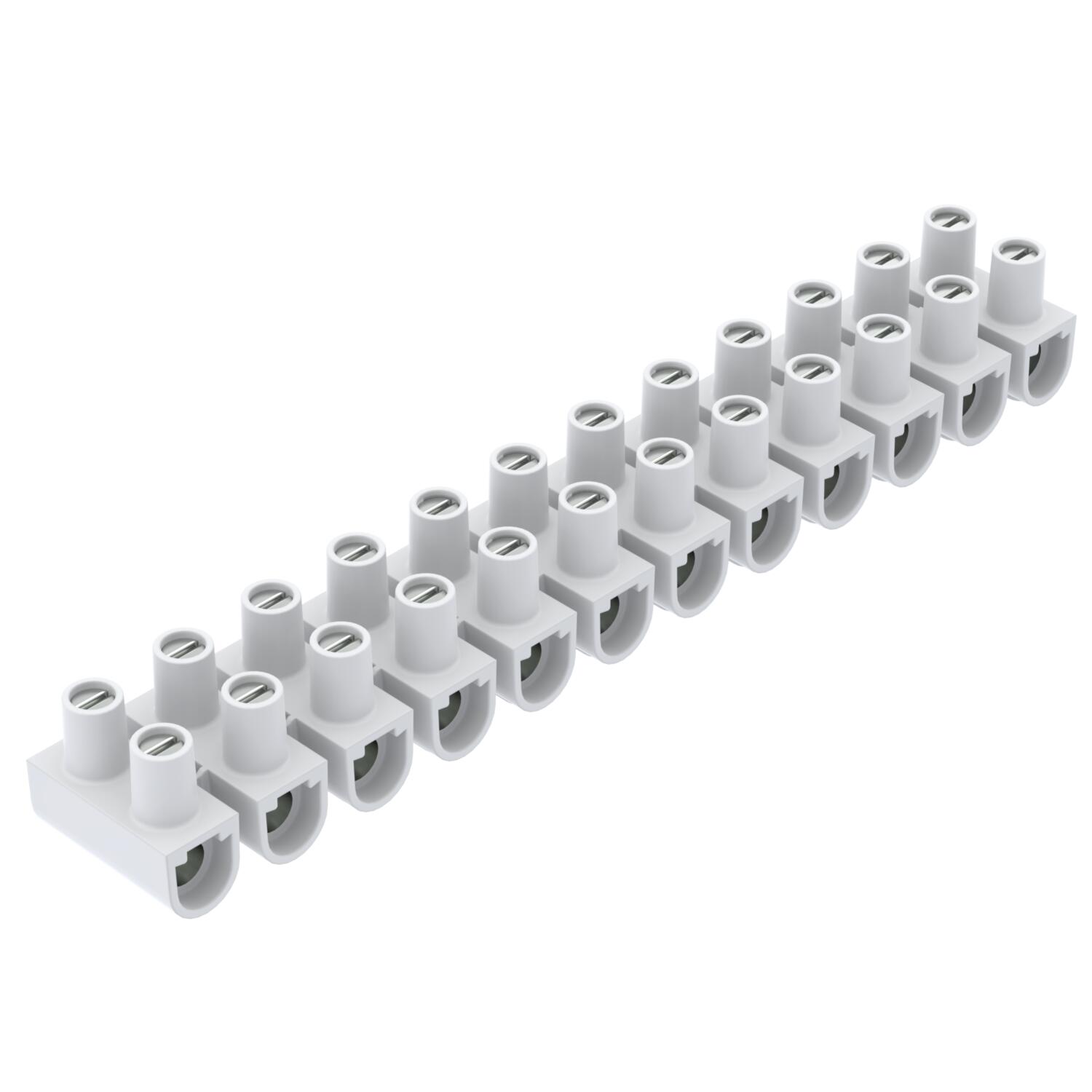

Product descriptionTested according to EN 60998. Steel terminals, steel screws, electrogalvanised, 12-pin, individual terminals detachable from strips using "twist'n'pull". Captive upwards screw. Max. approved ambient temperature to EN 60998: –5 to +80 °C. Nominal cross-section 10 ÷ mm² Nominal voltage 450 V Nominal current 57 A Max. connections per side: 10 mm² rigid or 6 mm² flexible.
-
- Technical data
-
Technical data

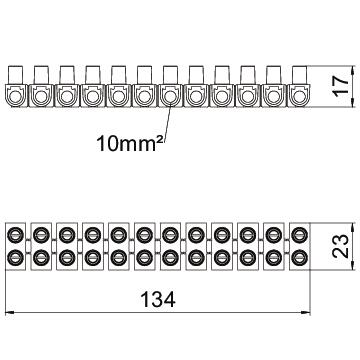

Ambient temperature 80 °C Closing plate required no Colour White Connectable conductor cross-section, fine-wire without wire-end ferrule, max. 6 mm² Connectable conductor cross-section, fine-wire without wire-end ferrule, min. 2,5 mm² Connectable conductor cross-section, multi-wire, max. 6 mm² Connectable conductor cross-section, multi-wire, min. 2,5 mm² Connectable conductor cross-section, single-wire, max. 10 mm² Connectable conductor cross-section, single-wire, min. 2,5 mm² Connection position Side Cross-section Max. connections per side: 10 mm² rigid or 6 mm² flexible mm² Dimension 10mm² Drill hole spacing, centre 11,5 mm Explosion-tested version no Height 17 mm Length 134 mm Material Polypropylene No. of terminals 12 Nominal cross-section, min. 10 mm² Nominal current 57 A Nominal voltage 450 V Number of screwless terminals per pole 2 Permitted temperature range, max. 80 °C Permitted temperature range, min. -5 °C Pole number 12 Suitable for flexible conductors yes Suitable for multi-wire conductors yes Suitable for solid conductors yes Transparent no Version of electrical connection 1 Screw connection Version of electrical connection 2 Screw connection Width 23 mm - All types
- Downloads
-
EU declaration of conformity 76 CE WS/ORLK 10 / 2056716 , 0.11MB , pdfUK Declaration of Conformity 76 CE WS/ORLK 10 / 2056716 , 0.10MB , pdfNo invitation to tender text is available for this product.
