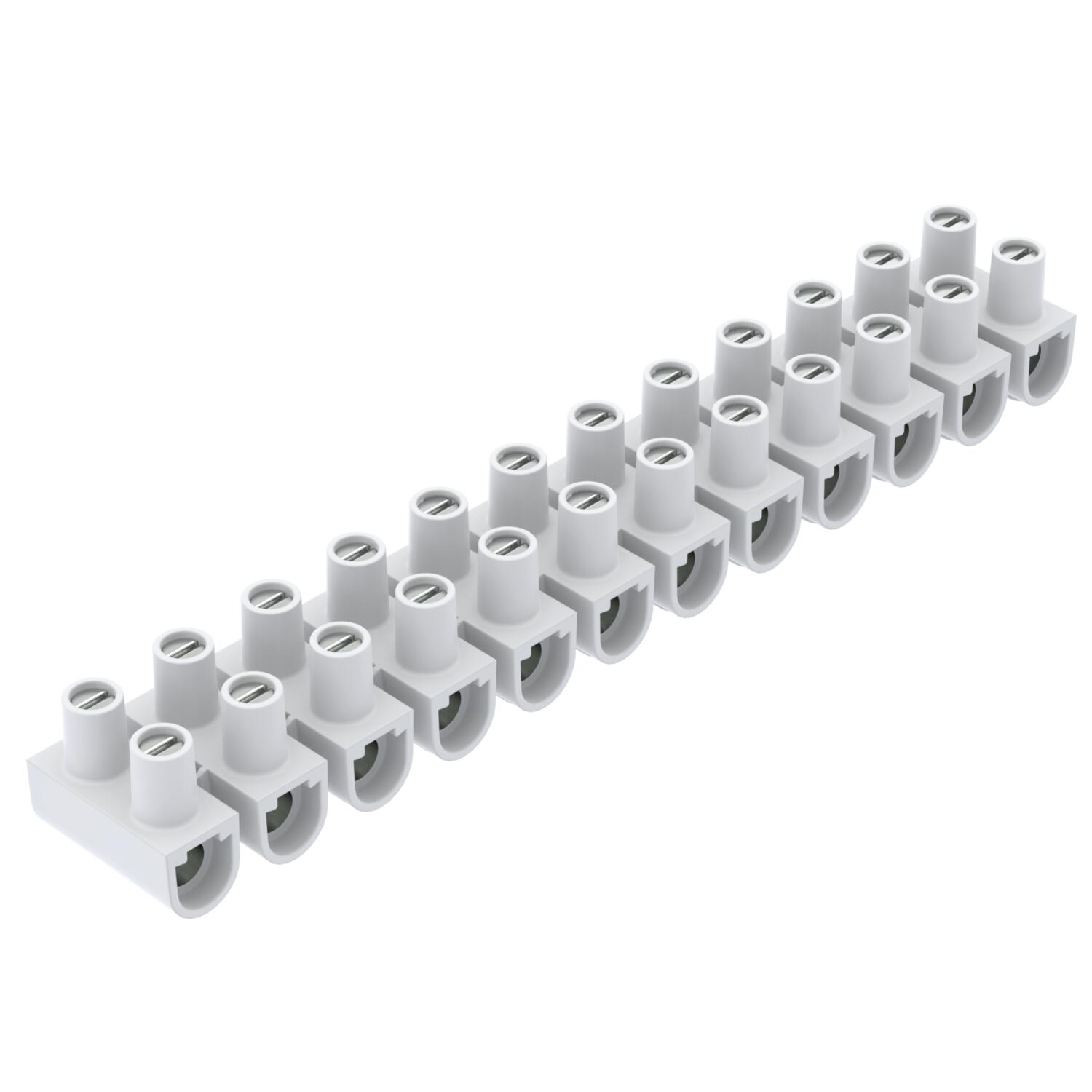

Series terminals 16 mm², polypropylene
Item no. 2056724 | EAN 4012197471354
- Product description
-
Product descriptionTested according to EN 60998. Steel terminals, steel screws, electrogalvanised, 12-pin, individual terminals detachable from strips using "twist'n'pull". Captive upwards screw. Max. approved ambient temperature to EN 60998: –5 to +80 °C. Nominal cross-section 16 ÷ mm² Nominal voltage 450 V Nominal current 76 A Max. connections per side: 16 mm² rigid or 10 mm² flexible or 6 mm² flexible.
-
- Technical data
-
Technical data

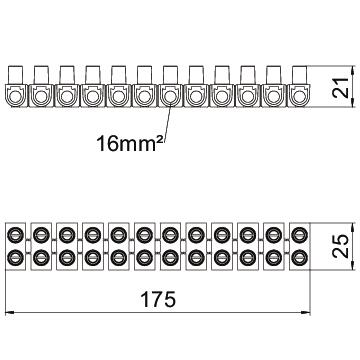

Ambient temperature 80 °C Closing plate required no Colour White Connectable conductor cross-section, fine-wire with wire-end ferrule, max. 16 mm² Connectable conductor cross-section, fine-wire with wire-end ferrule, min. 4 mm² Connectable conductor cross-section, fine-wire without wire-end ferrule, max. 6 mm² Connectable conductor cross-section, fine-wire without wire-end ferrule, min. 4 mm² Connectable conductor cross-section, multi-wire, max. 10 mm² Connectable conductor cross-section, multi-wire, min. 4 mm² Connection position Side Cross-section Max. connections per side: 16 mm² rigid or 10 mm² flexible or 6 mm² flexible mm² Dimension 16mm² Drill hole spacing, centre 15 mm Explosion-tested version no Height 20,7 mm Length 175 mm Material Polypropylene No. of terminals 12 Nominal cross-section, min. 16 mm² Nominal current 76 A Nominal voltage 450 V Number of screwless terminals per pole 2 Permitted temperature range, max. 80 °C Permitted temperature range, min. -5 °C Pole number 12 Suitable for flexible conductors yes Suitable for multi-wire conductors yes Suitable for solid conductors yes Transparent no Version of electrical connection 1 Screw connection Version of electrical connection 2 Screw connection Width 25 mm - All types
- Downloads
-
EU declaration of conformity 78 CE WS/ORLK 16 / 2056724 , 0.11MB , pdfUK Declaration of Conformity 78 CE WS/ORLK 16 / 2056724 , 0.10MB , pdfNo invitation to tender text is available for this product.
