Series terminals 25 mm², polypropylene
Item no. 2056730 | EAN 4012197471446
- Product description
-

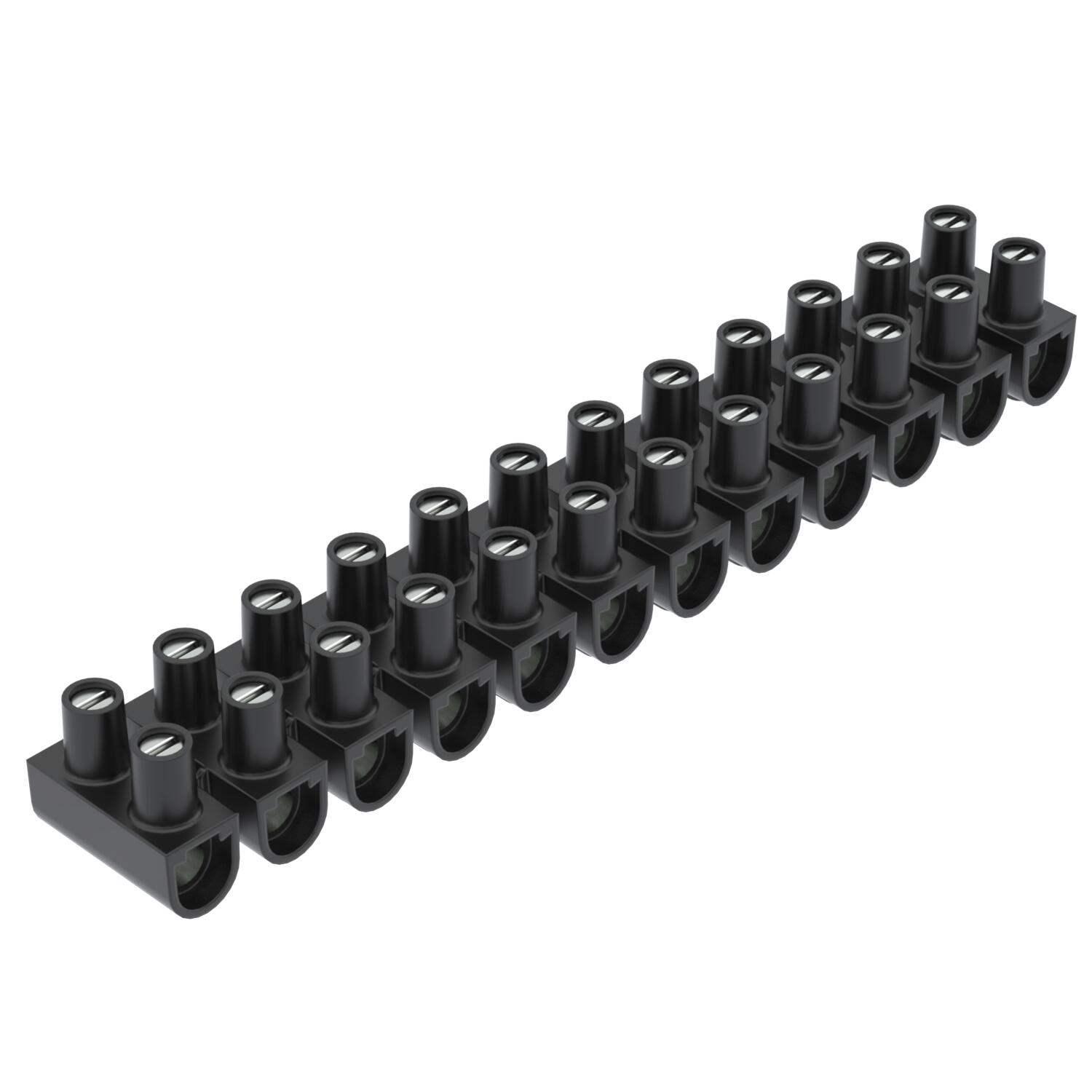

Product descriptionTested according to EN 60998. Brass terminals, steel screws, electrogalvanised and transparently passivated, 12-pole, individual terminals detachable from strips. Captive upwards screw. Max. approved ambient temperature to EN 60998: –5 to +80 °C. Nominal cross-section 25 ÷ mm² Nominal voltage 750 V Nominal current 101 A Max. connections per side: 25 mm² flexible or 6 mm² rigid.
-
- Technical data
-
Technical data

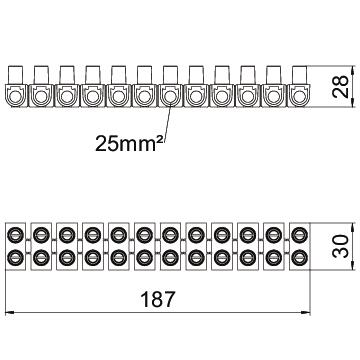

Ambient temperature 80 °C Closing plate required no Colour Black Connectable conductor cross-section, fine-wire without wire-end ferrule, max. 16 mm² Connectable conductor cross-section, fine-wire without wire-end ferrule, min. 16 mm² Connectable conductor cross-section, multi-wire, max. 25 mm² Connectable conductor cross-section, multi-wire, min. 25 mm² Connection position Side Cross-section Max. connections per side: 25 mm² flexible or 16 mm² rigid mm² Dimension 25mm² Drill hole spacing, centre 16 mm Explosion-tested version no Height 28 mm Length 187 mm Material Polypropylene No. of terminals 12 Nominal cross-section, min. 25 mm² Nominal current 101 A Nominal voltage 750 V Number of screwless terminals per pole 2 Permitted temperature range, max. 80 °C Permitted temperature range, min. -5 °C Pole number 12 Suitable for flexible conductors yes Suitable for multi-wire conductors yes Suitable for solid conductors yes Transparent no Version of electrical connection 1 Screw connection Version of electrical connection 2 Screw connection Width 30 mm - All types
- Downloads
-
EU declaration of conformity 79 CE SW/ORLK 25 / 2056730 , 0.11MB , pdfUK Declaration of Conformity 79 CE SW/ORLK 25 / 2056730 , 0.10MB , pdfNo invitation to tender text is available for this product.
