Series terminals 35 mm², polypropylene
Item no. 2056736 | EAN 4012197471507
- Product description
-

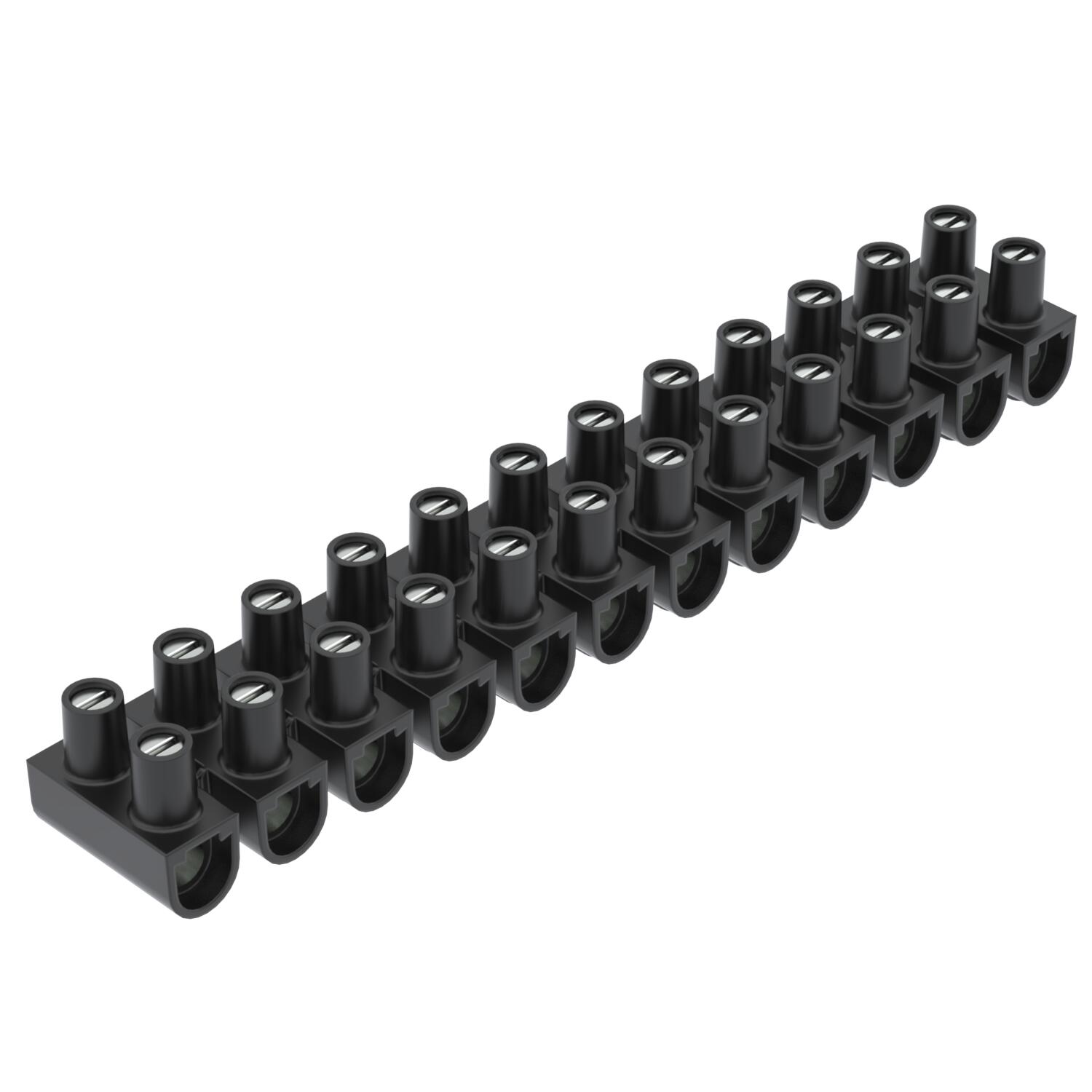

Product descriptionTested according to EN 60998. Brass terminals, steel screws, electrogalvanised, 12-pole, individual terminals detachable from strips. Captive upwards screw. Max. approved ambient temperature to EN 60998: –5 to +80 °C. Nominal cross-section 35 ÷ mm² Nominal voltage 750 V Nominal current 125 A Max. connections per side: 35 mm² flexible or 25 mm² flexible.
-
- Technical data
-
Technical data

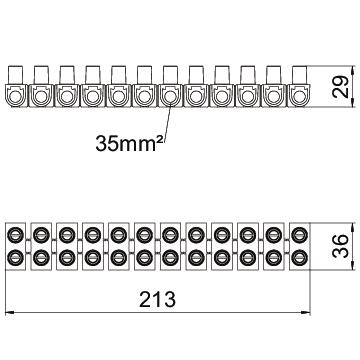

Ambient temperature 80 °C Closing plate required no Colour Black Connectable conductor cross-section, fine-wire without wire-end ferrule, max. 25 mm² Connectable conductor cross-section, fine-wire without wire-end ferrule, min. 25 mm² Connectable conductor cross-section, multi-wire, max. 35 mm² Connectable conductor cross-section, multi-wire, min. 35 mm² Connection position Side Cross-section Max. connections per side: 35 mm² flexible or 25 mm² rigid mm² Dimension 35mm² Drill hole spacing, centre 18 mm Explosion-tested version no Height 29,2 mm Length 212,6 mm Material Polypropylene No. of terminals 12 Nominal cross-section, min. 35 mm² Nominal current 125 A Nominal voltage 750 V Number of screwless terminals per pole 2 Permitted temperature range, max. 80 °C Permitted temperature range, min. -5 °C Pole number 12 Suitable for flexible conductors yes Suitable for multi-wire conductors yes Suitable for solid conductors yes Transparent no Version of electrical connection 1 Screw connection Version of electrical connection 2 Screw connection Width 36,4 mm - All types
- Downloads
-
EU declaration of conformity 80 CE SW/ORLK 35 / 2056736 , 0.11MB , pdfUK Declaration of Conformity 80 CE SW/ORLK 35 / 2056736 , 0.10MB , pdfNo invitation to tender text is available for this product.
