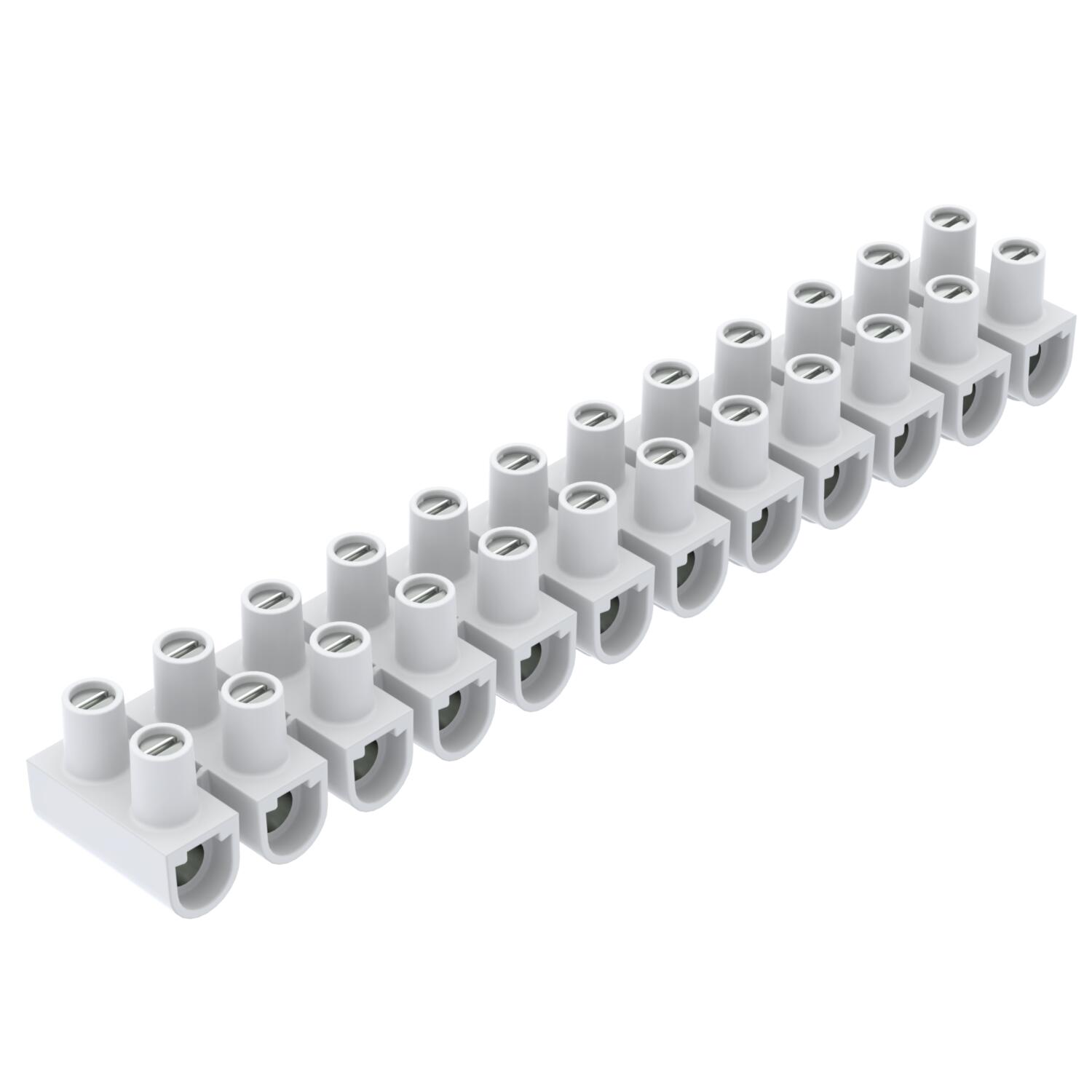

Series terminals 4 mm², polypropylene
Item no. 2056700 | EAN 4012197471170
- Product description
-
Product descriptionTested according to EN 60998.
Steel terminals, steel screws, electrogalvanised, 12-pin, individual terminals detachable from strips using "twist'n'pull".
Captive upwards screw.
Max. approved ambient temperature to EN 60998: –5 to +80 °C.
Nominal cross-section 4 mm²
Nominal voltage 450 V
Nominal current 32 A
Max. connections per side: 4 mm² rigid or 2.5 mm² flexible.
-
- Technical data
-
Technical data

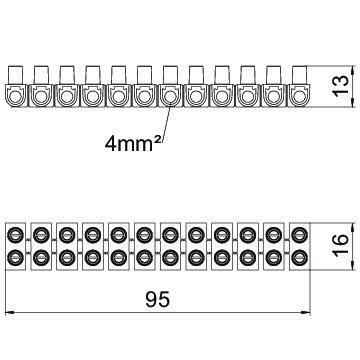

Ambient temperature 80 °C Closing plate required no Colour White Connectable conductor cross-section, fine-wire without wire-end ferrule, max. 4 mm² Connectable conductor cross-section, fine-wire without wire-end ferrule, min. 1 mm² Connectable conductor cross-section, multi-wire, max. 4 mm² Connectable conductor cross-section, multi-wire, min. 1 mm² Connectable conductor cross-section, single-wire, max. 4 mm² Connectable conductor cross-section, single-wire, min. 1 mm² Connection position Side Cross-section Max. connections per side: 4 mm² rigid or 2.5 mm² flexible mm² Dimension 4mm² Drill hole spacing, centre 8,1 mm Explosion-tested version no Height 13 mm Length 95 mm Material Polypropylene No. of terminals 12 Nominal voltage 450 V Number of screwless terminals per pole 2 Permitted temperature range, max. 80 °C Permitted temperature range, min. -5 °C Pole number 12 Suitable for flexible conductors yes Suitable for multi-wire conductors yes Suitable for solid conductors yes Transparent no Version of electrical connection 1 Screw connection Version of electrical connection 2 Screw connection Width 16,6 mm - All types
- Downloads
-
EU declaration of conformity 72 CE WS/ORLK 4 / 2056700 , 0.11MB , pdfUK Declaration of Conformity 72 CE WS/ORLK 4 / 2056700 , 0.10MB , pdfNo invitation to tender text is available for this product.
