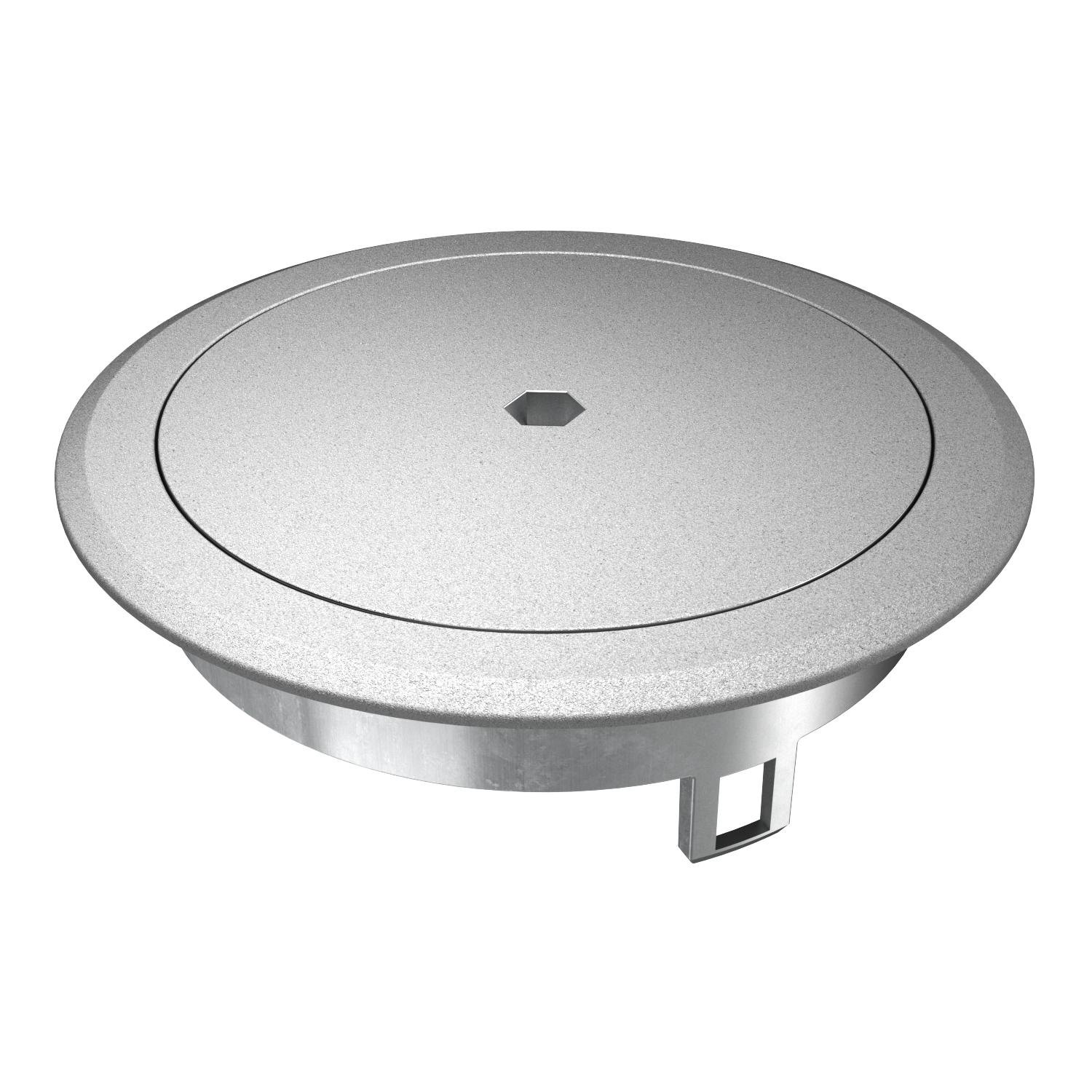

Service outlet with blanking cover and Allen slot, GES R2, chrome
Item no. 7408876 | EAN 4012196460830
- Product description
-
Product description
Service outlet with blanking cover and Allen slot for GES R2 floor socket for direct installation in the MT R2 installation socket in indoor areas.
The cover version can be used as a cable outlet.
When closed, the floor socket can be wet-cleaned.
-
- Technical data
-
Technical data

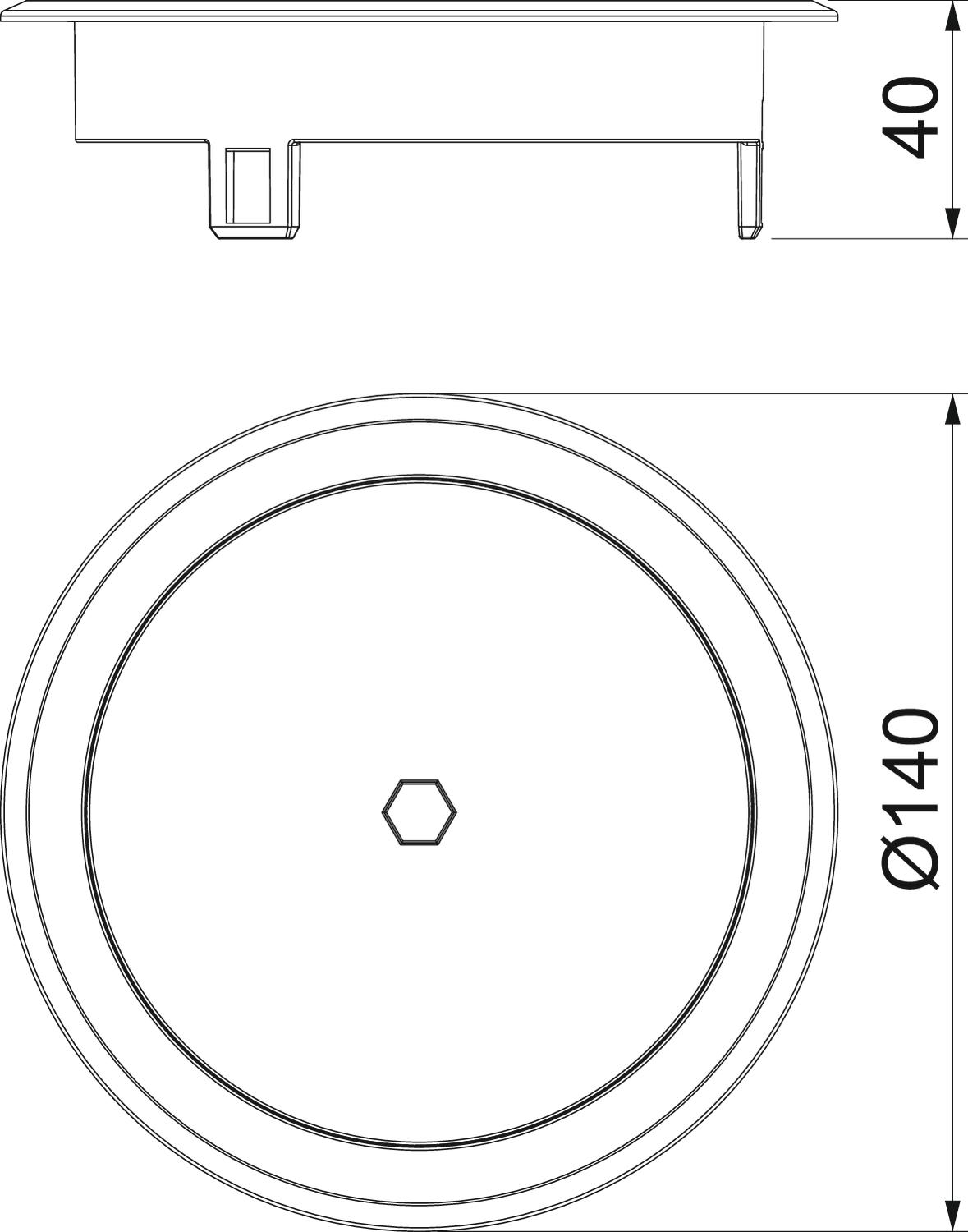

Approvals VDE Cable outlet version No cable outlet External diameter 140 mm Floor care Wet Floor covering protection frame yes Material Die-cast zinc Opening mechanism Tool Protection rating (IP) when unused IP66 Protection rating (IP) when used IP00 Protection rating IK code IK10 Standard EN 50085-2-2 Suitable for cavity floor installation yes Suitable for raised floor installation yes Suitable for underfloor ducts no Suitable for wet care yes Surface Chrome-plated Version for Round Vertical load, large area to 15,000 N Vertical load, small area to 3,000 N With floor covering recess no - All types
-
System accessories
Products Types Item no. Quantity SSU

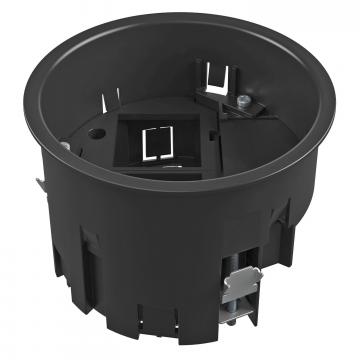

Installation socket, 1+1 empty
MT R2 1-1 7408838 1 piece
Screed box for GES R2
UD GES R2 7428526 1 piece - Downloads
-
Data sheet GES R2B Cr / 7408876 , 0.34MB , pdfBrochure GES R2 floor sockets , 2.10MB , pdfDeclaration of conformity GES R2B Cr / 7408876 , 0.04MB , pdfLabel approval VDE symbol approval, GES R2 , 0.19MB , pdfMounting instructions Bodensteckdose GES R2 , 1.06MB , pdfMounting instructions Long instructions, floor socket GES R2 , 0.05MB , pdf
