Service pole, type ISS110100F
Item no. 6289043 | EAN 4012195477402
- Product description
-

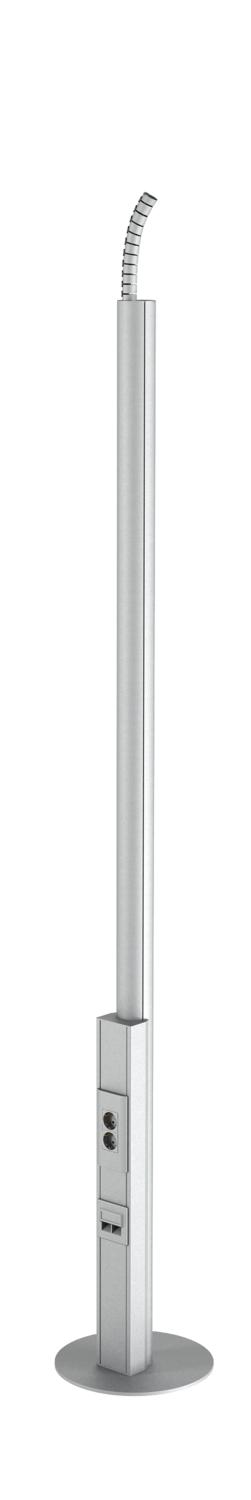

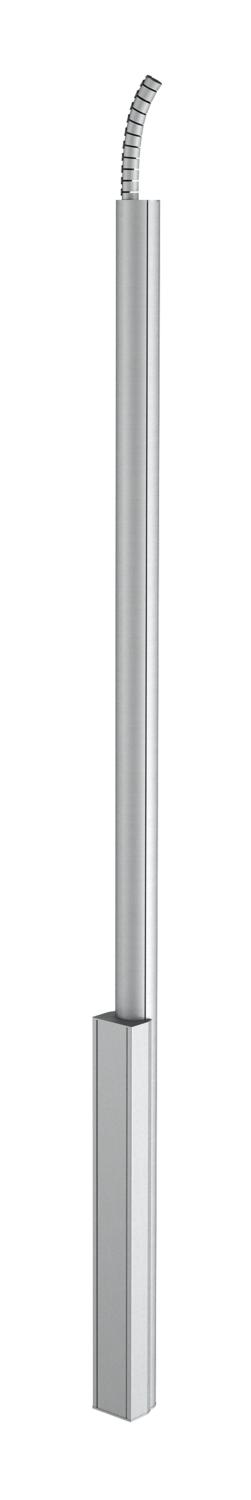

Product descriptionISS aluminium service pole with a flexible hose to the ceiling.
Set consisting of:
1 single-tube pole with flexible hose to the ceiling
Total length: 2,300 mm
1 flexible hose, length: 1,500 mm Ø 30 mm
1 equippable installation area, length: 780 mm
1 cover, aluminium, length: 780 mm
The service pole has a system opening of 76.5 mm in the area for device installation and is suitable for housing of front-locking accessory mounting boxes of the series 71GD... The floor plate as a stand, type SFISSF, and the hose connection to the ceiling, type SAISSF, should be ordered separately (see articles below).
-
- Technical data
-
Technical data
Adjustable yes Cable entry Top Ceiling mounting yes Changes according to location yes CO2 Footprint (GWP) Cradle-to-Gate 120,9896 kg CO2e / 1 Piece Colour aluminium Continuous profile no Cover width 76,5 mm Dimension 2300x100x110 Dimension A 780 mm Dimension B 2300 mm Dimension C 1500 mm Fastening type Stand Floor mounting yes Halogen-free yes Height 110 mm Height compensation, max. 1500 mm Length 2300 mm Material Aluminium Number of compartments 1 St. Number of usable covers 1 Pole height, max. 3800 mm Pole height, min. 2300 mm Pole shape Installation space, angular/pole, round Pre-wired no Surface Anodised Version for Single-sided Width 100 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Stand
SFISSFWAL 6290197 1 piece
Hose connection
SAISSF 6290198 1 piece
Ceiling panel
ISSFDB1RW 6290269 1 piece
Accessory mounting box 71GD6, single
71GD6 6288610 5 piece
Accessory mounting box 71GD7-2, double
71GD7-2 6288608 2 piece - Downloads
-
Data sheet ISS110100FEL / 6289043 , 0.23MB , pdfBrochure Service poles, office , 2.77MB , pdfEU declaration of conformity ISS110100FEL / 6289043 , 0.10MB , pdfUK Declaration of Conformity ISS110100FEL / 6289043 , 0.09MB , pdfMounting instructions Service pole with hose to ceiling , 12.65MB , pdfNo invitation to tender text is available for this product.
