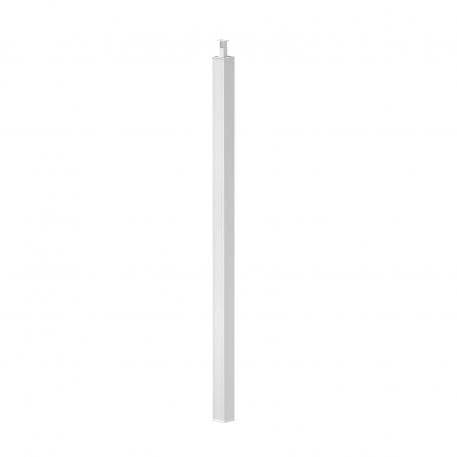

Service pole, type ISS130130
Item no. 6289405 | EAN 4012196770472
- Product description
-

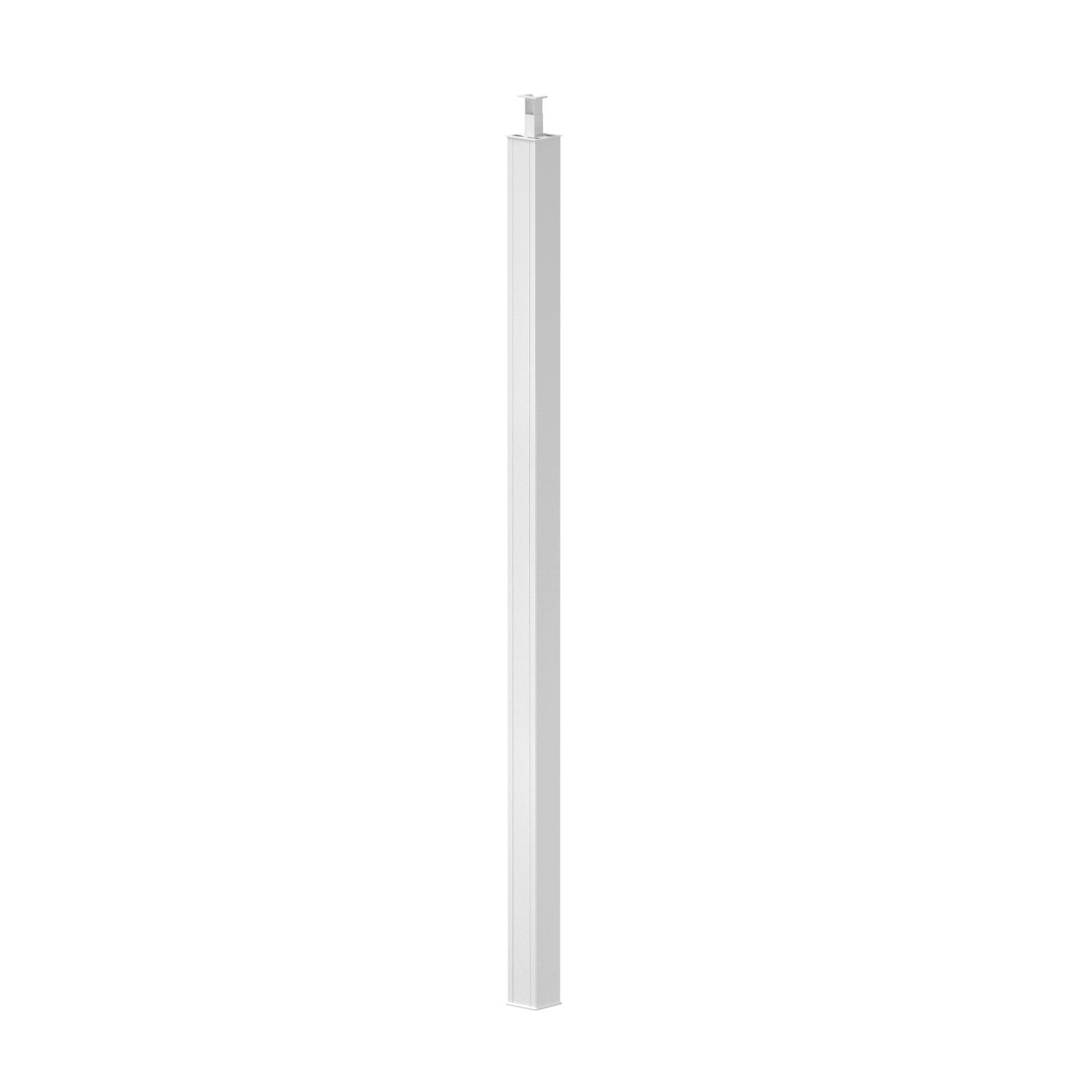

Product descriptionAluminium floor-ceiling service pole (surface anodised or powder-coated in RAL 9010) with two 76.5 system openings to accept device installation sockets of the 71GD series.
The service pole is fitted with an internal clamping device, which enables convenient tensioning between floor and ceiling. An extendable telescope provides a clamping range of 3,015–4,500 mm. Cables can be inserted both through the telescopic square pipe and directly into the main profile from below or above.
The installation area for switching and connection devices depends on the length of the extended telescope, but is at least 1 m per system opening (starting from the ground).
-
- Technical data
-
Technical data

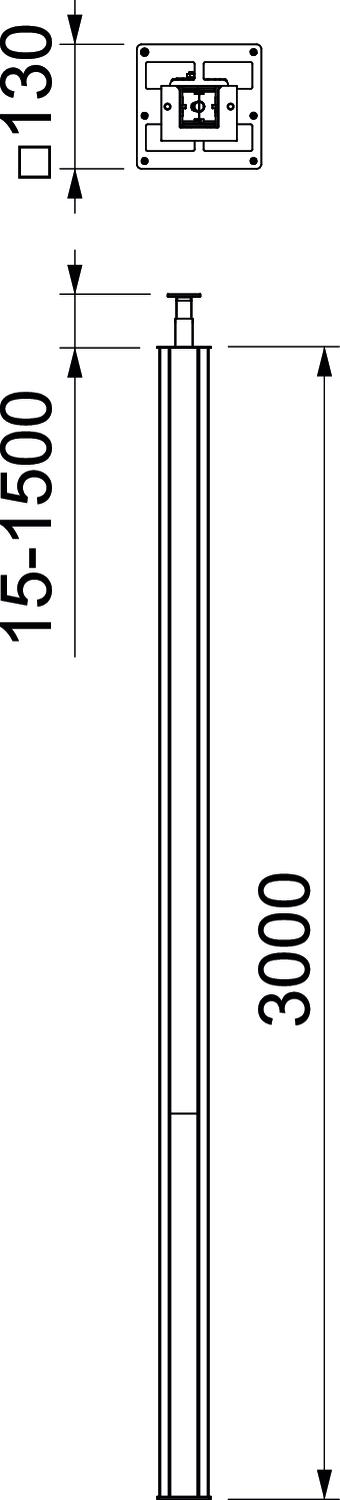

Adjustable yes Cable entry Top/bottom Ceiling mounting yes Changes according to location no CO2 Footprint (GWP) Cradle-to-Gate 142,7296 kg CO2e / 1 Piece Colour aluminium Continuous profile yes Cover width 76,5 mm Dimension 3000x130x130 Fastening type Tension Floor mounting yes Halogen-free yes Height 130 mm Height compensation, max. 1500 mm Height compensation, min. 15 mm Length 3000 mm Material Aluminium Number of compartments 2 St. Number of usable covers 2 Pole height, max. 4500 mm Pole height, min. 3015 mm Pole shape Square Pre-wired no Surface Anodised Version for Double-sided Width 130 mm - All types
-
System accessories
Products Types Item no. Quantity SSU

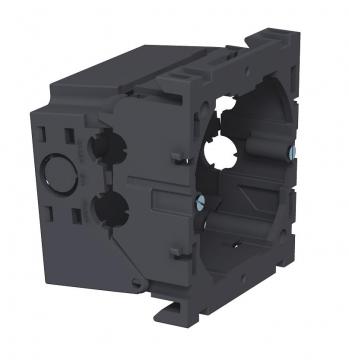

Accessory mounting box 71GD6, single
71GD6 6288610 5 piece

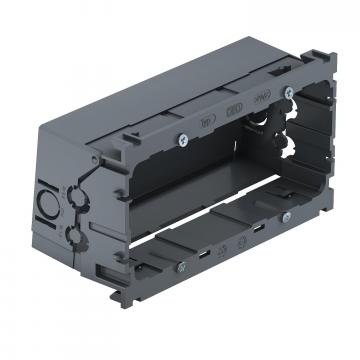

Accessory mounting box 71GD7-2, double
71GD7-2 6288608 2 piece
Protective conductor connection bracket
8AWR 6288704 10 piece

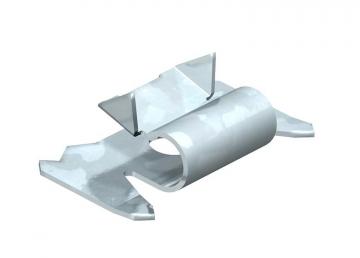

Locking bracket RKV3V
RKV3V 6288700 20 piece

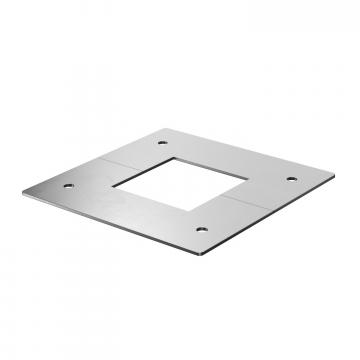

Ceiling panel for telescope
DBT130130WA 6286821 1 piece

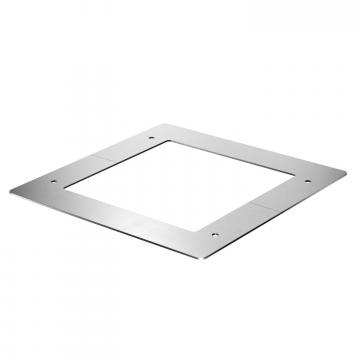

Ceiling panel for pole profile
DBP130130WA 6286826 1 piece
Partition
TW130130 6286835 1 m

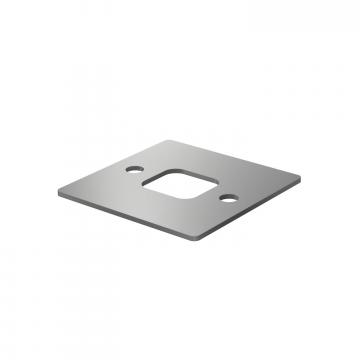

Rubber support
ISSGU130130 6286839 1 piece - Downloads
-
