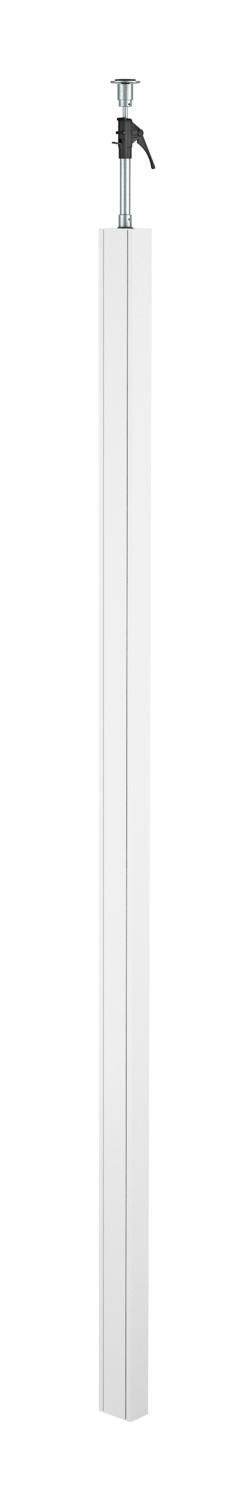

Service pole, type ISS70110
Item no. 6288940 | EAN 4012195160731
- Product description
-
Product descriptionISS aluminium service pole with a 76.5 mm system opening.
Set consists of:
1 single-compartment pole with clamping fastening
Total length 3,315‒3,480 mm
1 ceiling fastening with clamping device
1 aluminium cover
Length: 3,000 mm
The service pole is suitable for accepting front-locking accessory mounting boxes
of the series 71GD... The installation of a partition of type GA-TW70 (6279711)
and the installation of the cover clip, type KL80A (6288640), are possible as an option.
The following accessories can be used, depending on the mounting situation.
-
- Technical data
-
Technical data
Adjustable yes Cable entry Top/bottom Ceiling mounting yes Changes according to location no CO2 Footprint (GWP) Cradle-to-Gate 98,1752 kg CO2e / 1 Piece Colour Pure white; RAL 9010 Continuous profile yes Cover width 76,5 mm Dimension 3000x110x70 Fastening type Tension Floor mounting yes Halogen-free yes Height 70 mm Height compensation, max. 480 mm Height compensation, min. 315 mm Length 3000 mm Material Aluminium Number of compartments 1 St. Number of usable covers 1 Pole height, max. 3480 mm Pole height, min. 3315 mm Pole shape Rectangular Pre-wired no Version for Single-sided Width 110 mm - All types
-
System accessories
Products Types Item no. Quantity SSU

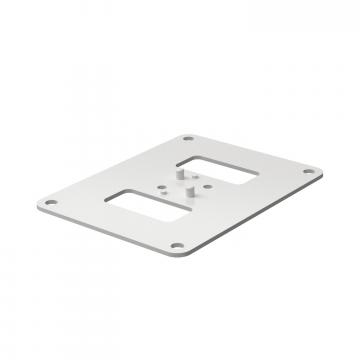

Floor plate for ISS70110
ISSBP70110RW 6290100 1 piece

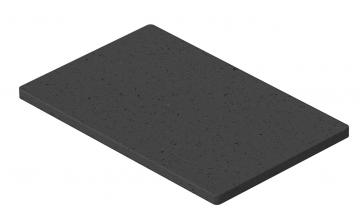

Rubber support for ISS70110
ISSGU70110 6290170 1 piece

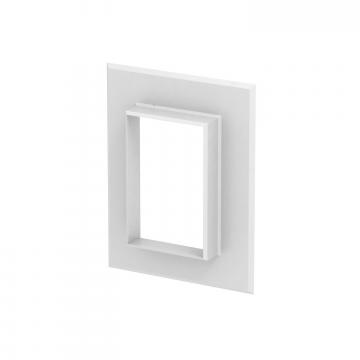

Aluminium wall cover, closed, 70110
G-AWAG70110RW 6278840 1 piece
Accessory mounting box 71GD6, single
71GD6 6288610 5 piece Mounting accessories
Products Types Item no. Quantity SSU

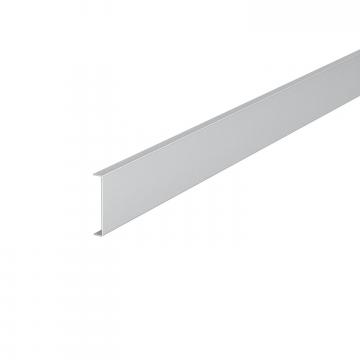

Partition GA-TW70
GA-TW70 6279711 2 m
Accessory mounting box 71GD7-2, double
71GD7-2 6288608 2 piece - Downloads
-
