Service pole, type ISSHS140500 500 | aluminium

Service pole, type ISSHS140500

Item no. 6290033 | EAN 4012195161325

Item no. / Types

Length	500 mm

Colour

Product description

Product description

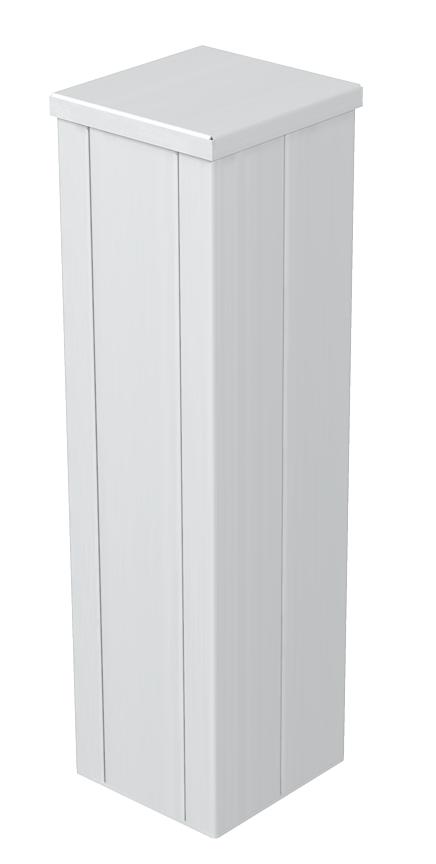

ISS aluminium service pole, 2-compartment, with a 76.5 mm system opening.

Empty, equippable with standard devices (socket, telephone, etc.) max. 8 devices.

Fixing possible directly on floor. Accessory mounting boxes to be ordered separately.

The service pole is suitable for accepting front-locking accessory mounting boxes of the series 71GD.... The installation of a partition of type GA-TW (6279711) and the installation of the cover clip, type KL80A, are possible as an option.

Technical data

Technical data

Adjustable	no
Cable entry	Bottom
Ceiling mounting	no
Changes according to location	no
CO2 Footprint (GWP) Cradle-to-Gate	38,6183 kg CO2e / 1 Piece
Colour	aluminium
Continuous profile	yes
Cover width	76,5 mm

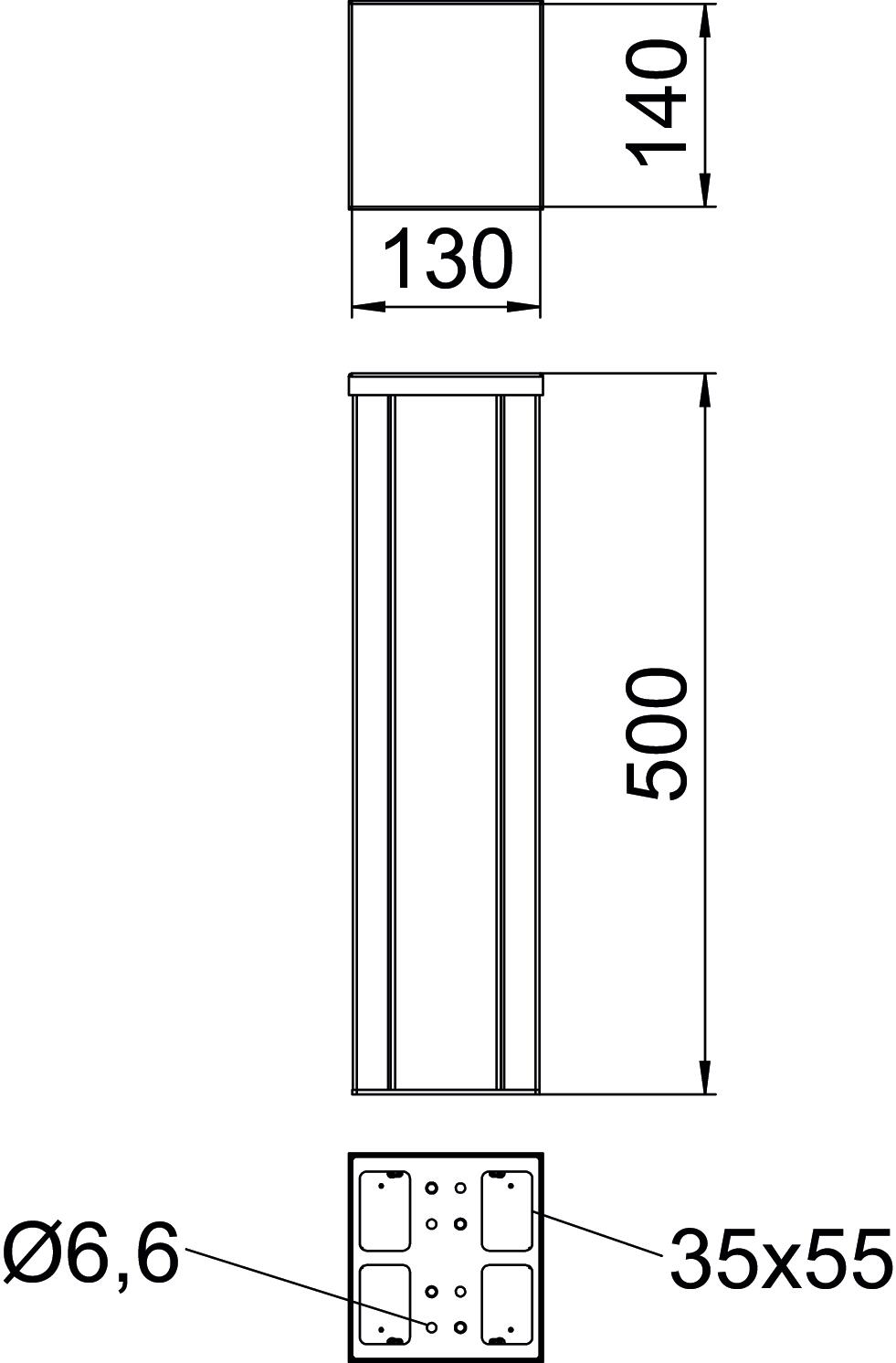

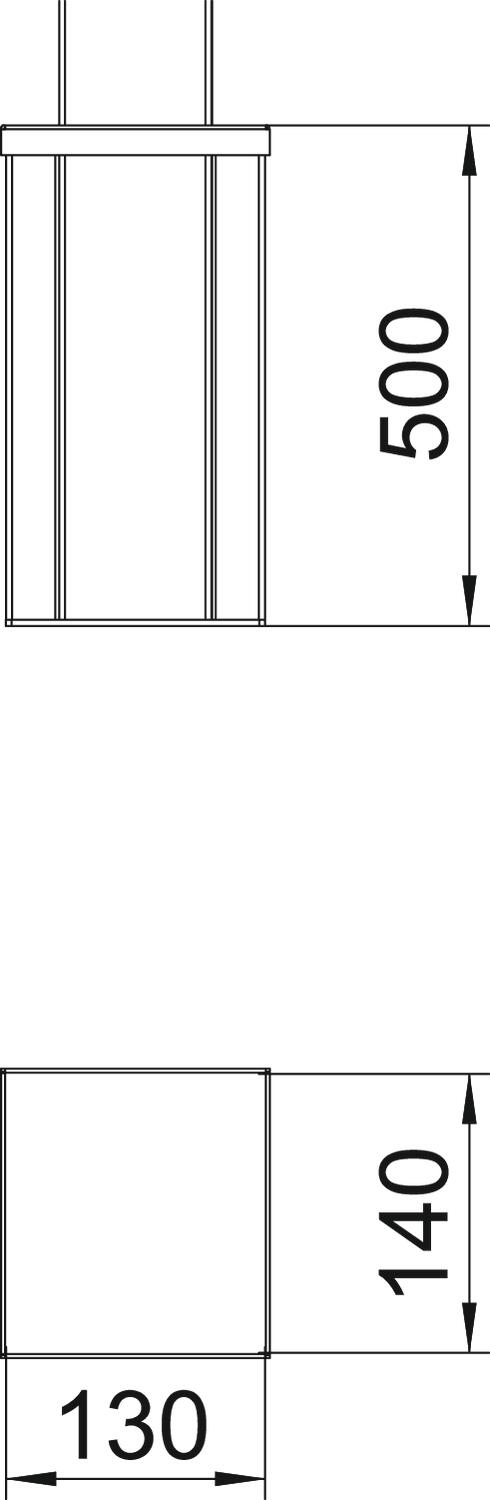

Dimension	500x130x140
Fastening type	Bolts
Floor mounting	yes
Halogen-free	yes

Height	140 mm
Length	500 mm
Material	Aluminium
Number of compartments	2 St.
Number of usable covers	2
Pole height, min.	500 mm
Pole shape	Rectangular
Pre-wired	no
Surface	Anodised
Version for	Double-sided
Width	130 mm

All types

All types

Types	Length	Colour	Item no.	Quantity	SSU
ISSHS140500RW	500 mm	Pure white; RAL 9010	6290030	piece	1 piece
ISSHS140500EL	500 mm	aluminium	6290033	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Accessory mounting box 71GD6, single	71GD6	6288610	piece	5 piece
Accessory mounting box 71GD7-2, double	71GD7-2	6288608	piece	2 piece
Protective conductor connection bracket	8AWR	6288704	piece	10 piece
Locking bracket RKV3V	RKV3V	6288700	piece	20 piece
