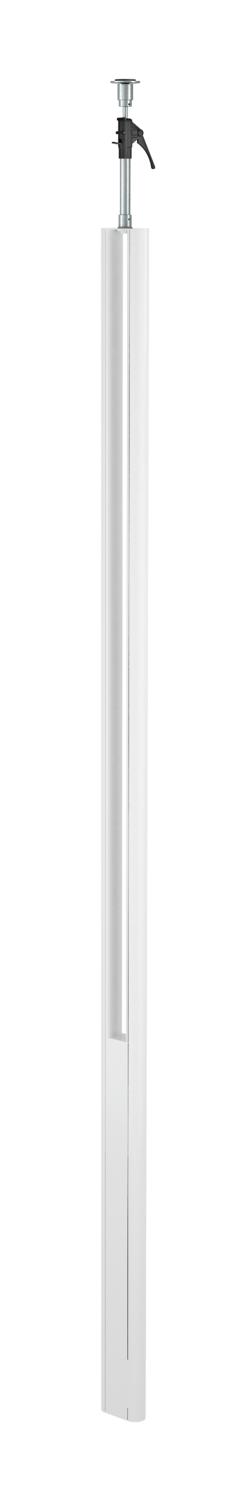

Service pole, type ISST70140
Item no. 6288930 | EAN 4012195160663
- Product description
-
Product descriptionISS twin aluminium service pole with a 76.5 mm system opening.
Set consists of:
1 single-compartment column with clamping attachment
Total length: 3,315–3,480 mm
1 single-compartment pole with clamping device
1 trunking installation profile
Length 1,000 mm
1 aluminium cover
Length: 1,000 mm
The area for device installation is suitable for accepting front-locking accessory mounting boxes of the series 71GD...
The following accessories can be used, depending on the mounting situation.
-
- Technical data
-
Technical data

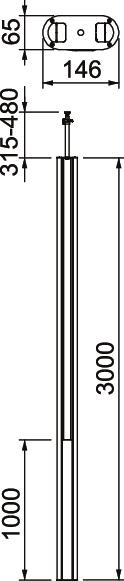

Adjustable yes Cable entry Top/bottom Ceiling mounting yes Changes according to location no CO2 Footprint (GWP) Cradle-to-Gate 97,4311 kg CO2e / 1 Piece Colour Pure white; RAL 9010 Continuous profile no Cover width 76,5 mm Dimension 3000x146x65 Fastening type Tension Floor mounting yes Halogen-free yes Height 65 mm Height compensation, max. 480 mm Height compensation, min. 315 mm Length 3000 mm Material Aluminium Number of compartments 1 St. Number of usable covers 1 Pole height, max. 3480 mm Pole height, min. 3315 mm Pole shape Oval Pre-wired no Version for Single-sided Width 146 mm - All types
-
System accessories
Products Types Item no. Quantity SSU

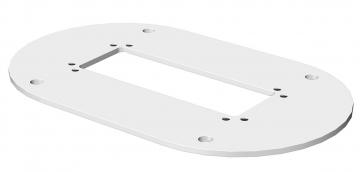

70140 floor plate
ISSBP70140RW 6290120 1 piece
Rubber support for 70140
ISSGU70140 6290174 1 piece

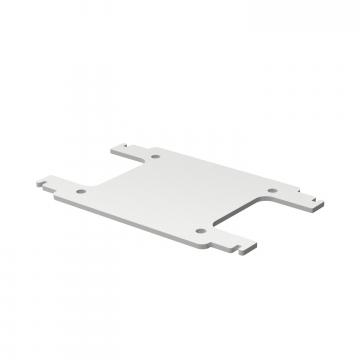

Adapter stabiliser for ISST70140
ISSZ70140 6290160 1 piece

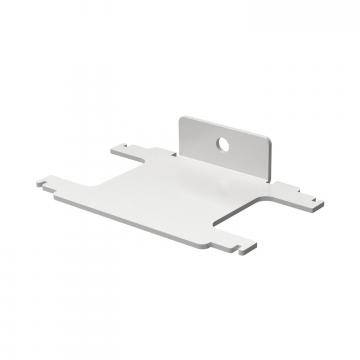

Fastening bracket for ISST70140
ISSBW70140RW 6290150 1 piece

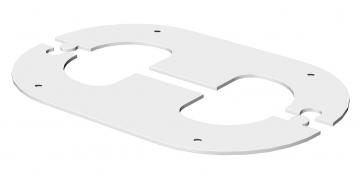

Ceiling panel for ISST70140
WAG70140TRW 6290200 1 piece
Accessory mounting box 71GD6, single
71GD6 6288610 5 piece
Accessory mounting box 71GD7-2, double
71GD7-2 6288608 2 piece - Downloads
-
Data sheet ISST70140RW / 6288930 , 0.22MB , pdfBrochure Service poles, office , 2.77MB , pdfEU declaration of conformity ISST70140RW / 6288930 , 0.10MB , pdfUK Declaration of Conformity ISST70140RW / 6288930 , 0.09MB , pdfMounting instructions Mounting instructions, service pole with clamping device , 1.06MB , pdfNo invitation to tender text is available for this product.
