Skirting trunking Rauduo 40105 2000 | Natural
morepic-1 morepic-2 morepic-3

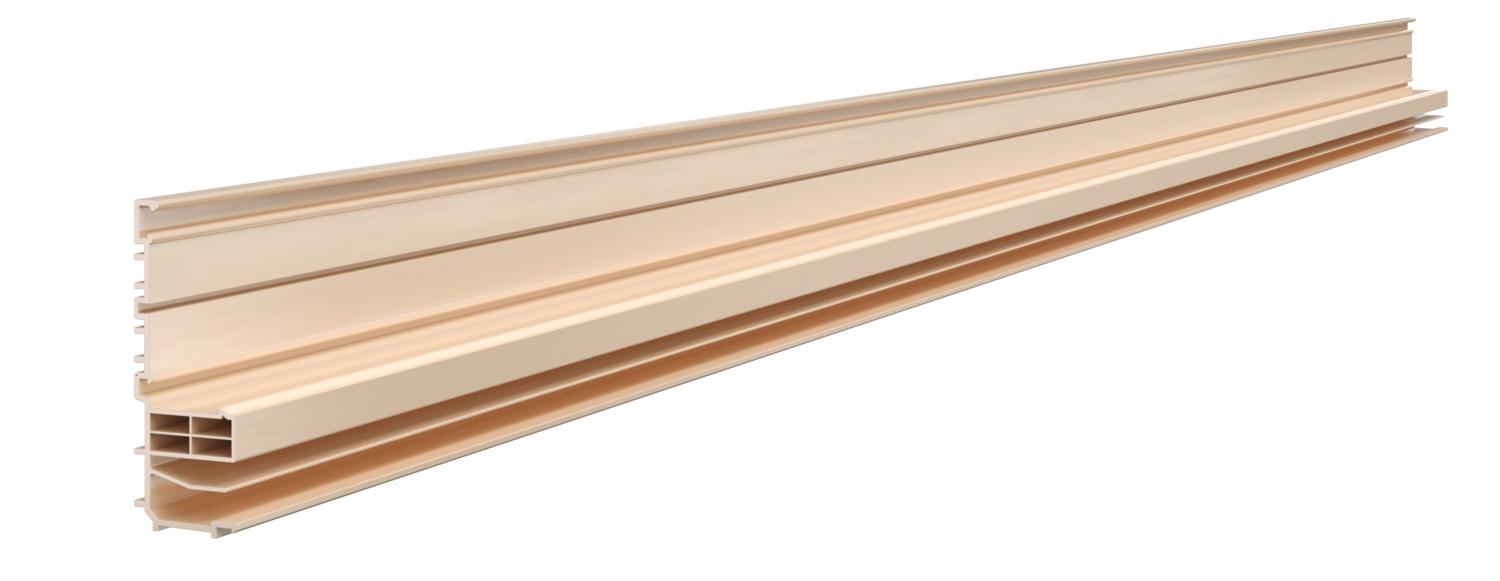

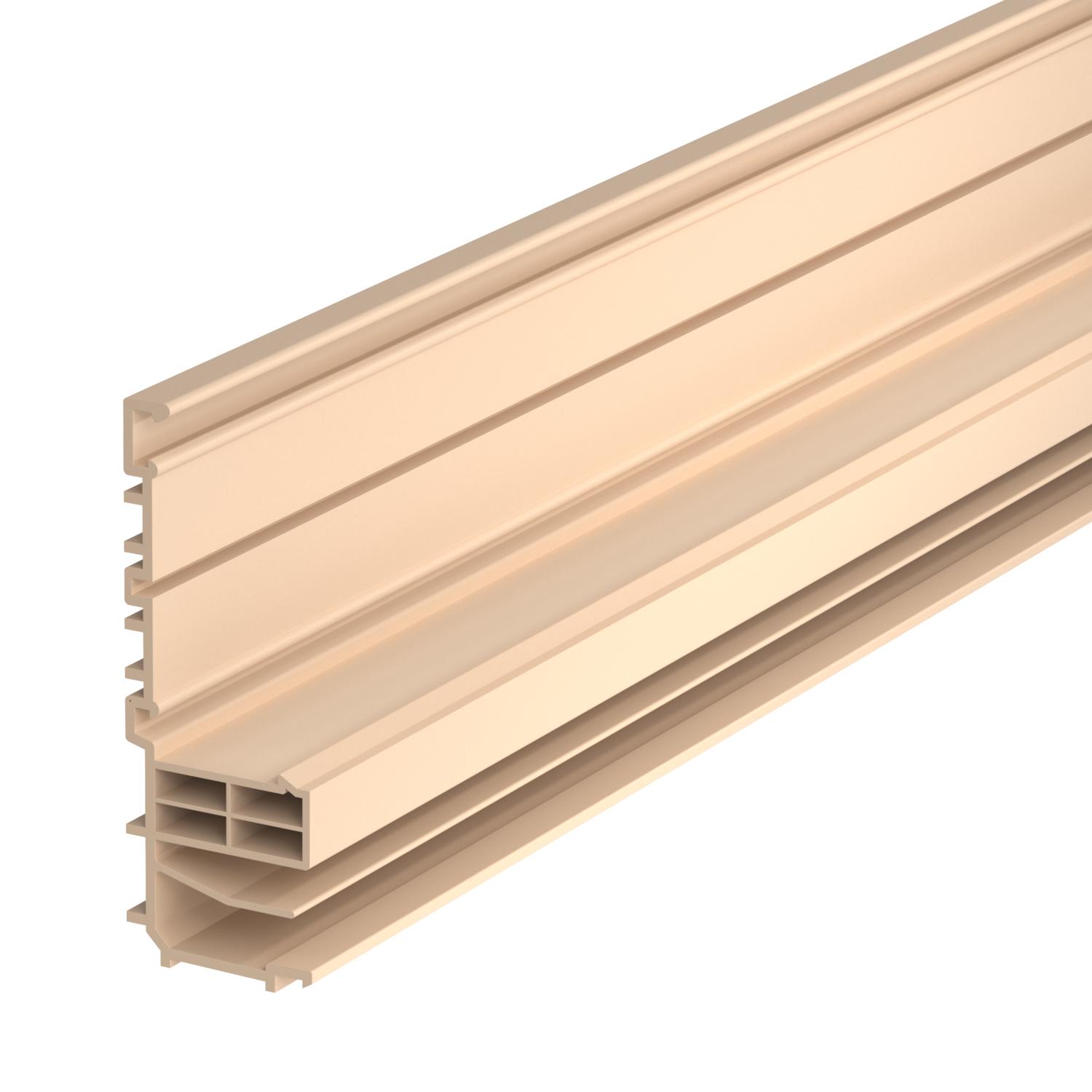

Skirting trunking Rauduo 40105

Item no. 6132205 | EAN 4012196719235

6132205 / RD 40105 natur
2000 mm
Natural
Product description
Product description
Base of the Rauduo trunking system with 2 individual, thermally separated chambers for joint laying of electrical cables and heating pipes. With locking function for accommodating the trunking covers. The colour of the trunking bases can vary depending on the production method.

Lower chamber for accommodating electrical cables with extruded partition for the separate laying of high- and low-voltage current. Standard base perforation.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 1,5753 kg CO2e / 1 Meter
Colour Natural

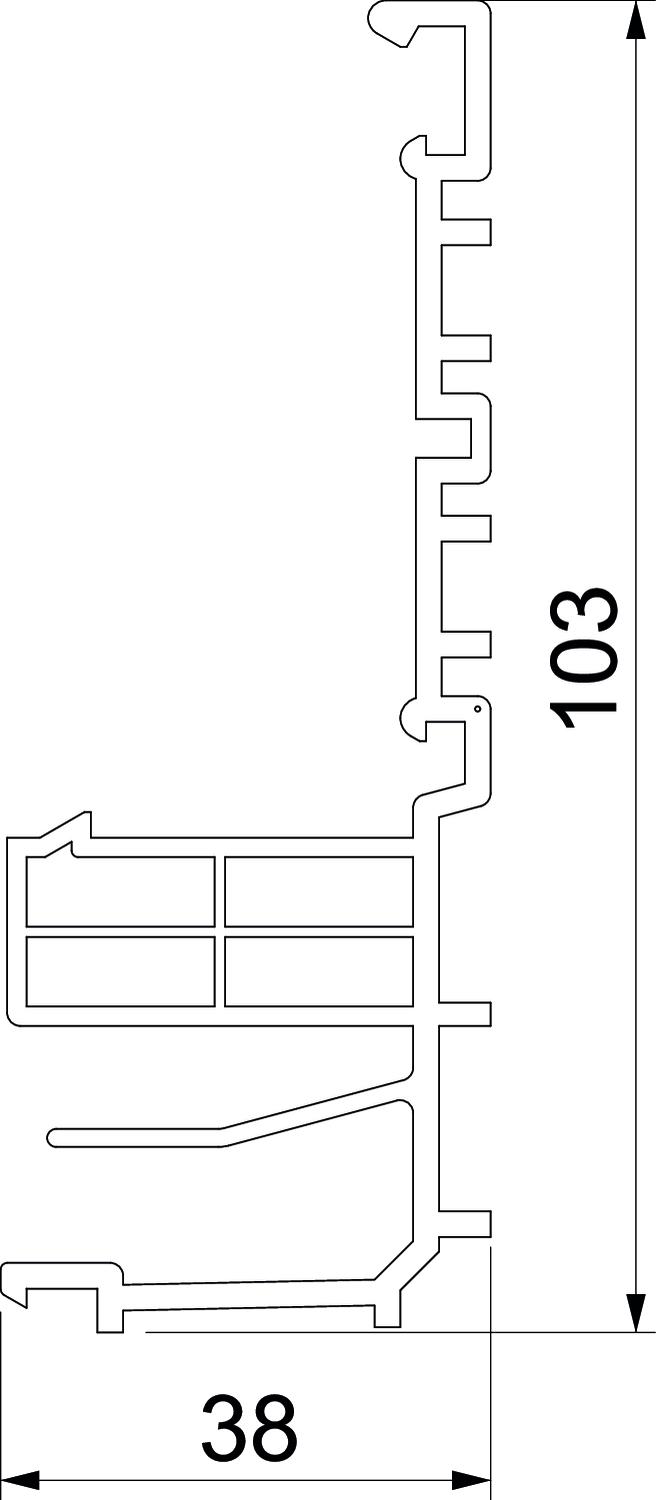

Dimension 2000x105x40
Halogen-free no
Height 38 mm
Length 2000 mm
Material Polyvinylchloride
Mounting perforation in base yes
Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket) 2
Number of fixed partitions 1
Usable cross-section 600 mm²
Width 103,4 mm
With carpet strip no
All types

All types

Types Length Colour Item no. Quantity SSU
RD 40105 natur 2000 mm Natural 6132205
2 m
Accessories

System accessories

Products Types Item no. Quantity SSU
Trunking cover Rauduo OT40105, without sealing lip Trunking cover Rauduo OT40105, without sealing lip RD OT40105 rws 6132160
2 m

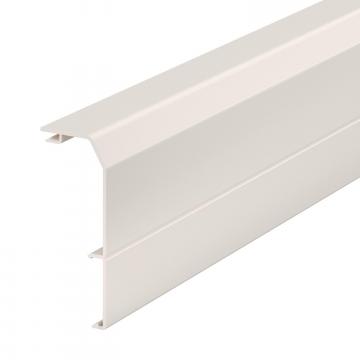

Trunking cover Rauduo OT40105, without sealing lip Trunking cover Rauduo OT40105, without sealing lip RD OT40105 cws 6132161
2 m

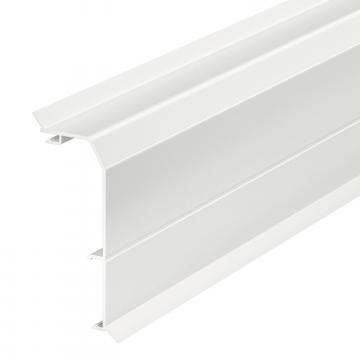

Trunking cover Rauduo OT40105, with sealing lip Trunking cover Rauduo OT40105, with sealing lip RDL OT40105 rws 6132264
2 m

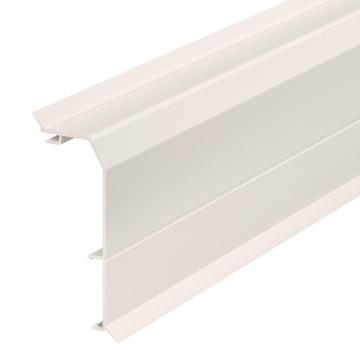

Trunking cover Rauduo OT40105, with sealing lip Trunking cover Rauduo OT40105, with sealing lip RDL OT40105 cws 6132190
2 m

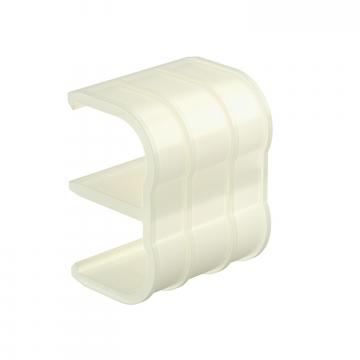

Heating pipe support Rauduo HRT 2 20 Heating pipe support Rauduo HRT 2 20 RD DUO HRT 2 20 6132170
10 piece

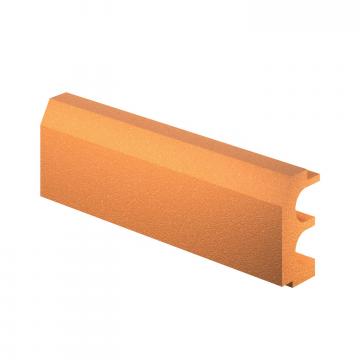

Insulating foam Rauduo ISO Insulating foam Rauduo ISO RD DUO ISO 6132175
1 piece

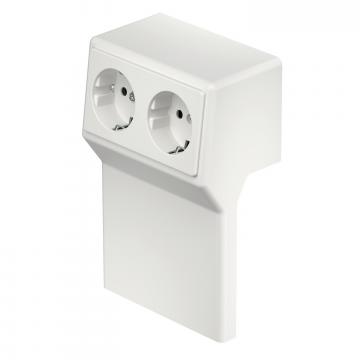

Rauduo GT40105 device support, double Rauduo GT40105 device support, double RD 2GT40105 rws 6132171
1 piece

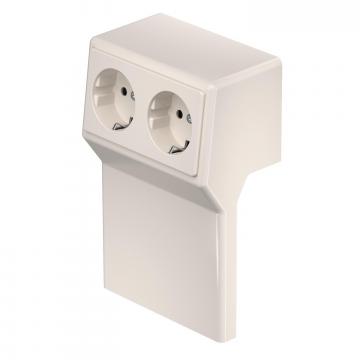

Rauduo GT40105 device support, double Rauduo GT40105 device support, double RD 2GT40105 cws 6132172
1 piece

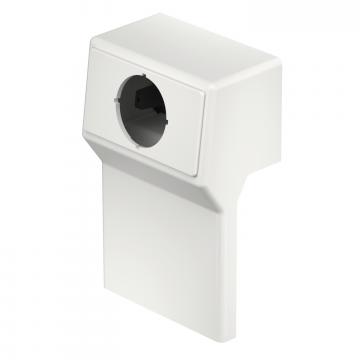

Rauduo GT40105 device support, single Rauduo GT40105 device support, single RD GT40105 rws 6132173
1 piece

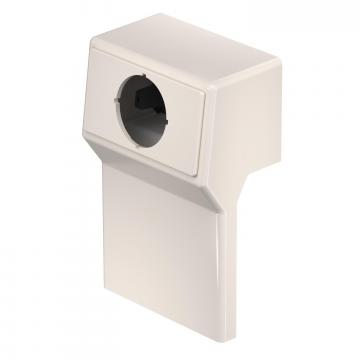

Rauduo GT40105 device support, single Rauduo GT40105 device support, single RD GT40105 cws 6132174
1 piece

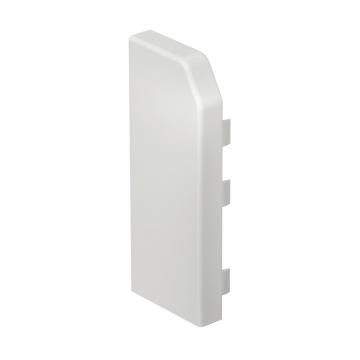

End piece Rauduo ESL40105 End piece Rauduo ESL40105 RD ESL40105 rws 6132168
10 piece

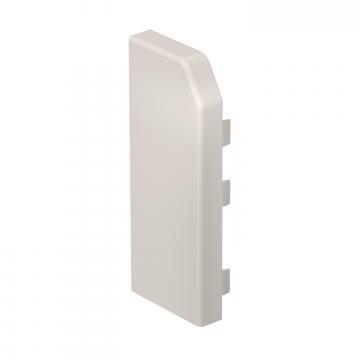

End piece Rauduo ESL40105 End piece Rauduo ESL40105 RD ESL40105 cws 6132169
10 piece

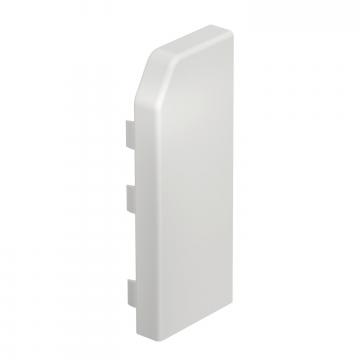

End piece Rauduo ESR40105 End piece Rauduo ESR40105 RD ESR40105 rws 6132285
10 piece

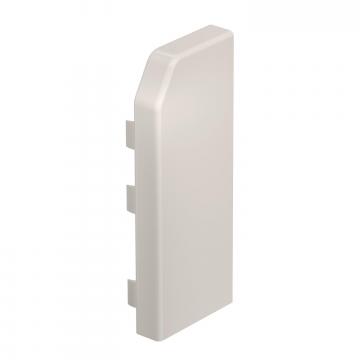

End piece Rauduo ESR40105 End piece Rauduo ESR40105 RD ESR40105 cws 6132167
10 piece

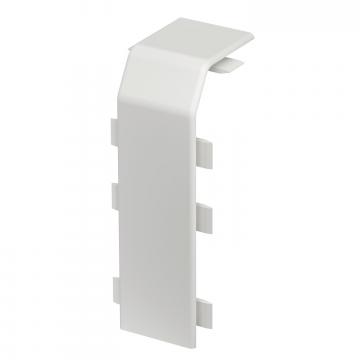

Trunking coupling Rauduo Kup40105 Trunking coupling Rauduo Kup40105 RD KUP40105 rws 6132176
10 piece

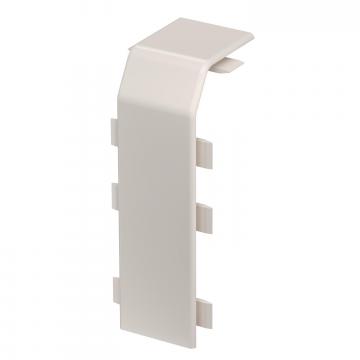

Trunking coupling Rauduo Kup40105 Trunking coupling Rauduo Kup40105 RD KUP40105 cws 6132177
10 piece

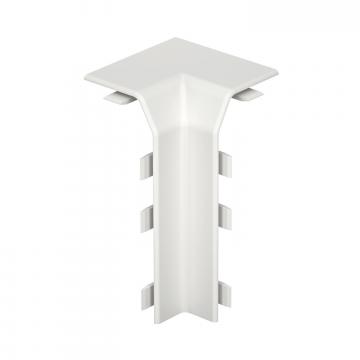

Internal corner Rauduo IE40105 Internal corner Rauduo IE40105 RD IE40105 rws 6132280
10 piece

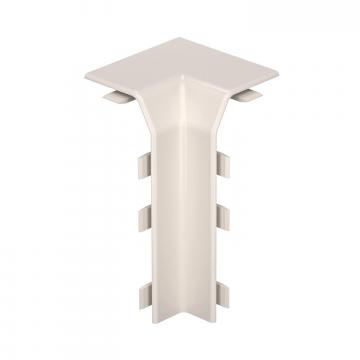

Internal corner Rauduo IE40105 Internal corner Rauduo IE40105 RD IE40105 cws 6132164
10 piece

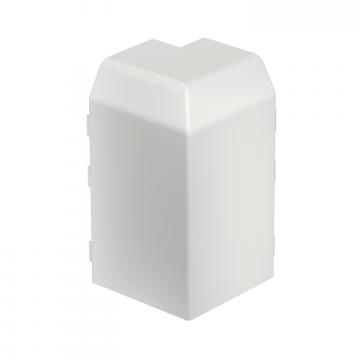

External corner Rauduo AE40105 External corner Rauduo AE40105 RD AE40105 rws 6132165
10 piece

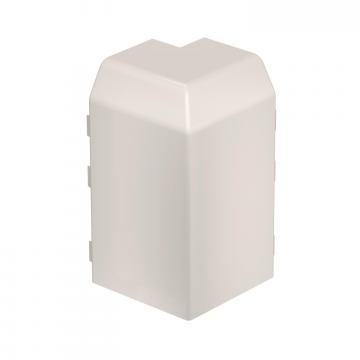

External corner Rauduo AE40105 External corner Rauduo AE40105 RD AE40105 cws 6132166
10 piece
Downloads

Download

Download
Download

Download
Download

No invitation to tender text is available for this product.
