Slide nut ZL 35 | 20 | 6 | M8

morepic-1

morepic-2

Slide nut ZL

Item no. 1147210 | EAN 4012196489862

Item no. / Types

Length	35 mm

Width	20 mm

Height

Thread

Product description

Product description

Slide nut for use with MS4121 und MS4141 profile rails

Technical data

Technical data

Dimension	M8
Material	Steel
Surface	Zinc slat

Thread	M8
Thread metric	8
With spring	no

Dimensions

Height	6 mm
Length	35 mm

Width	20 mm

All types

All types

Types	Length	Width	Height	Thread	Item no.	Quantity	SSU
MS41SN M6 ZL	35 mm	20 mm	6 mm	M6	1147206	piece	50 piece
MS41SN M8 ZL	35 mm	20 mm	6 mm	M8	1147210	piece	50 piece
MS41SN M10 ZL	35 mm	20 mm	8 mm	M10	1147214	piece	50 piece
MS41SN M12 ZL	35 mm	20 mm	9.5 mm	M12	1147218	piece	50 piece

Downloads

Data sheet MS41SN M8 ZL / 1147210 , 0.30MB , pdf

Brochure Rail systems , 2.10MB , pdf

Declaration of conformity MS41SN M8 ZL / 1147210 , 0.04MB , pdf

Download

REACH Declaration of conformity MS41SN M8 ZL / 1147210 , 0.12MB , pdf

Download

RoHS Declaration of conformity MS41SN M8 ZL / 1147210 , 0.12MB , pdf

Download

Product graphic MS41SN M8 ZL / 1147210, 58.54 kB, jpg

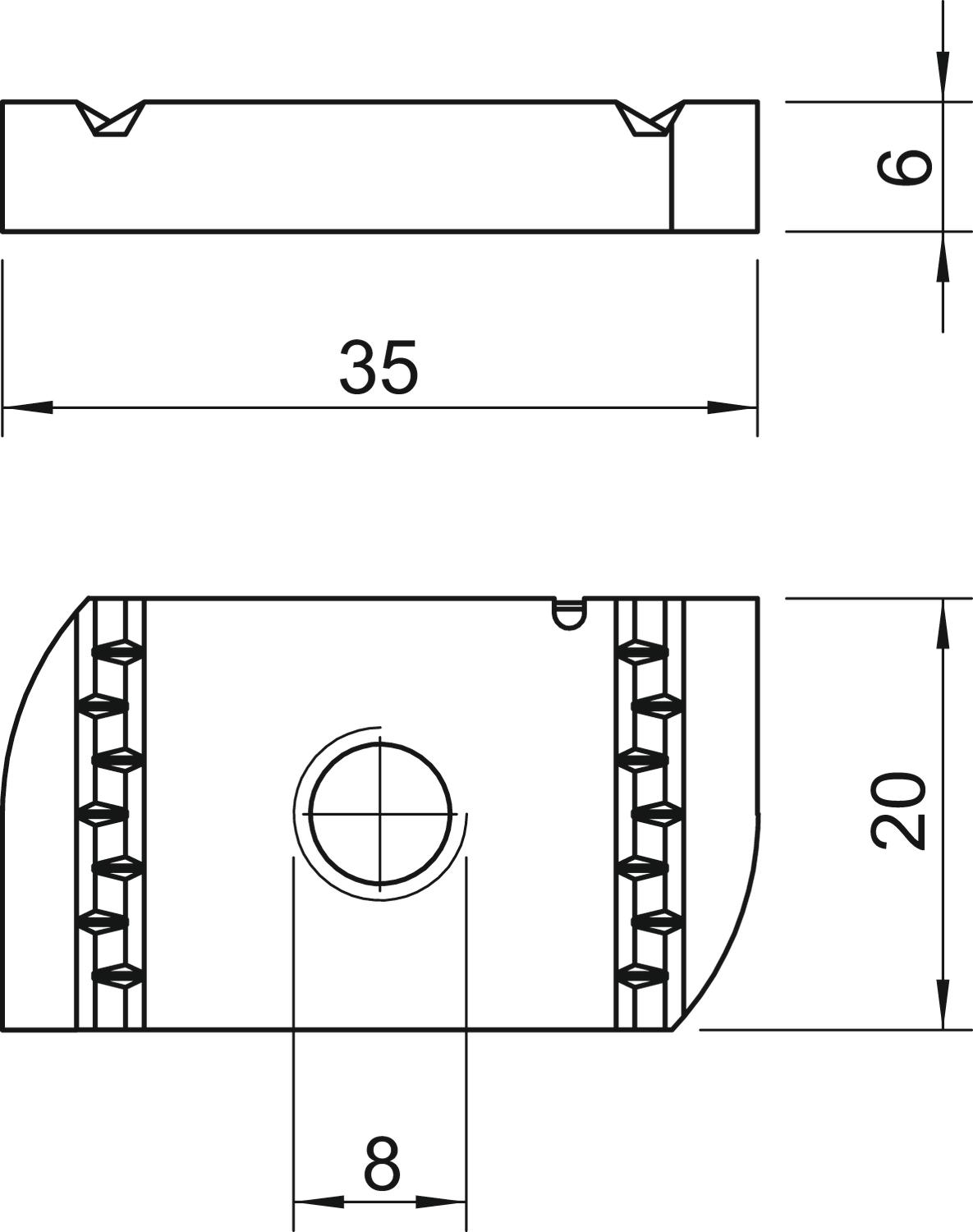

Scale drawing MS41SN M8 ZL / 1147210, 70.68 kB, jpg

MS41SN M8 ZL / 1147210

1147210_KSTP1.stp, 43.11 kB
