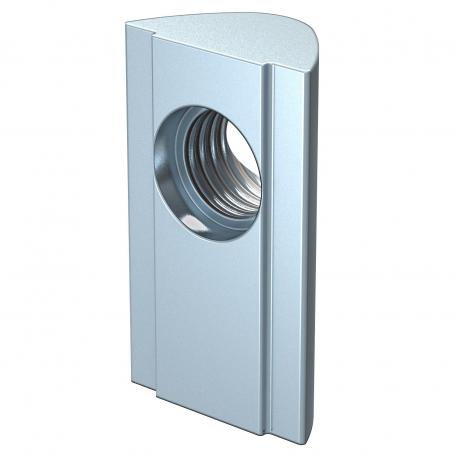

Slot nut for industrial pole
Item no. 6290499 | EAN 4012196191550
- Product description
-
Product description

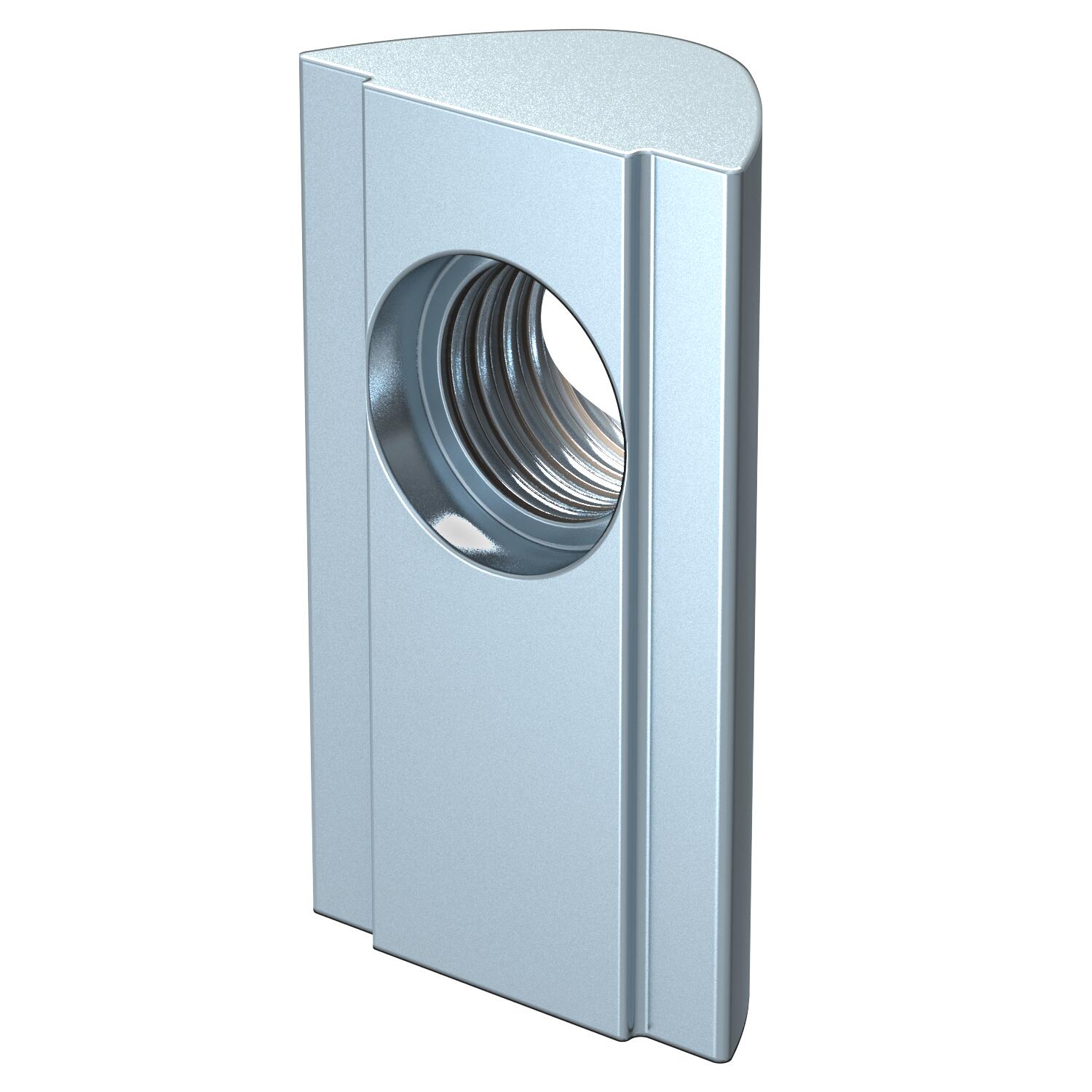

Sliding block with M8 thread for mounting extensions and accessories to the ISS industrial service pole profile. Through a pressure piece on the bottom side, the sliding block can hold itself by being swivelled into the groove. Automatic anti-rotation lock through profiled upper side.
-
- Technical data
-
Technical data

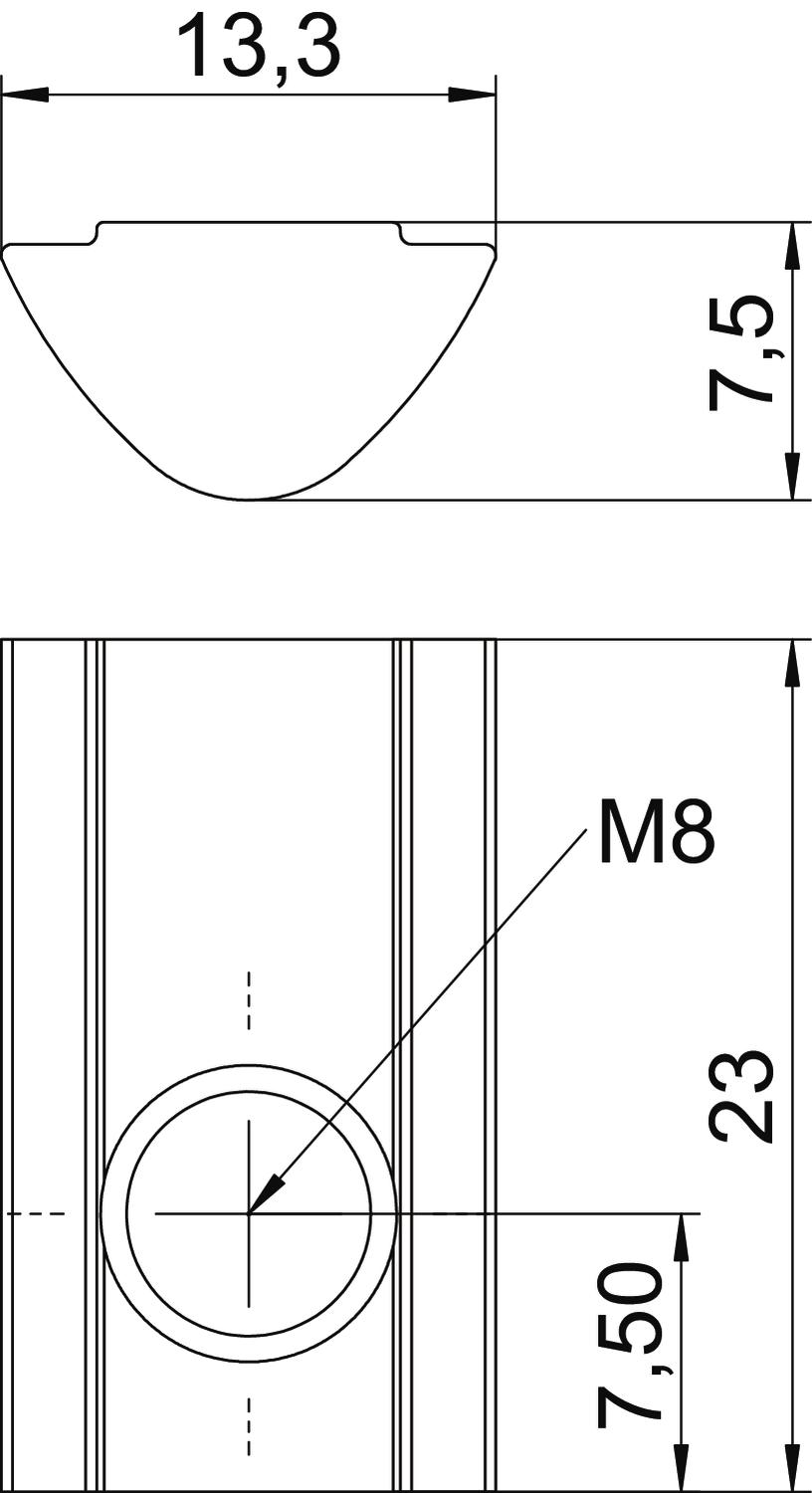

Dimension 23x13,3x7,5 Halogen-free yes Material Steel Permitted temperature range, max. 60 °C Permitted temperature range, min. -25 °C Protection rating IP30 Protection rating IK code IK10 Surface galvanised Type of accessory Sliding block Dimensions
Height 7,5 mm Length 23 mm Width 13,3 mm - All types
