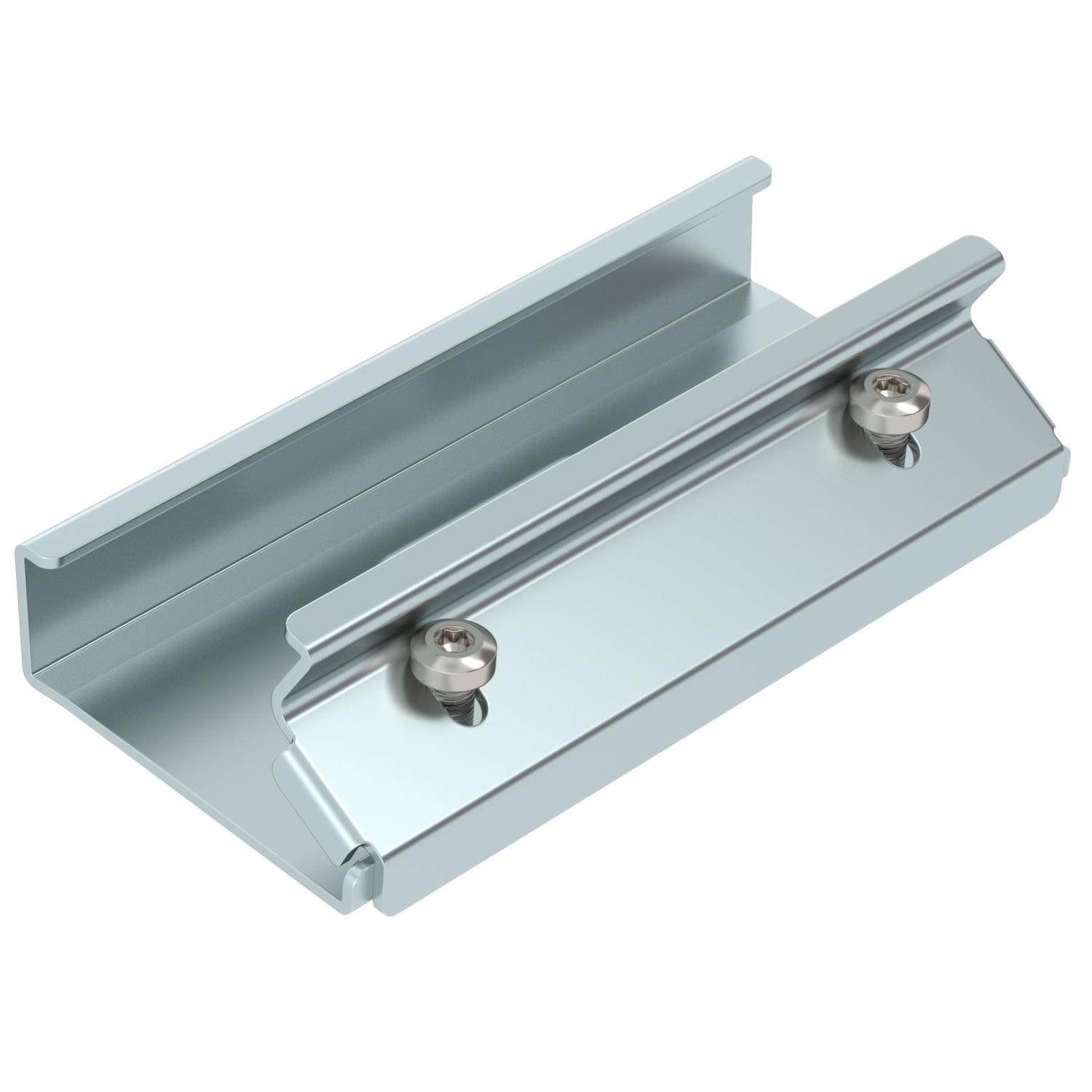

Straight connector for TP support profile
Item no. 5901210 | EAN 4012197376376
- Product description
-
Product descriptionStraight connector for TP support profiles. Can be screwed on with Torx 30 spanner.
-
- Technical data
-
Technical data

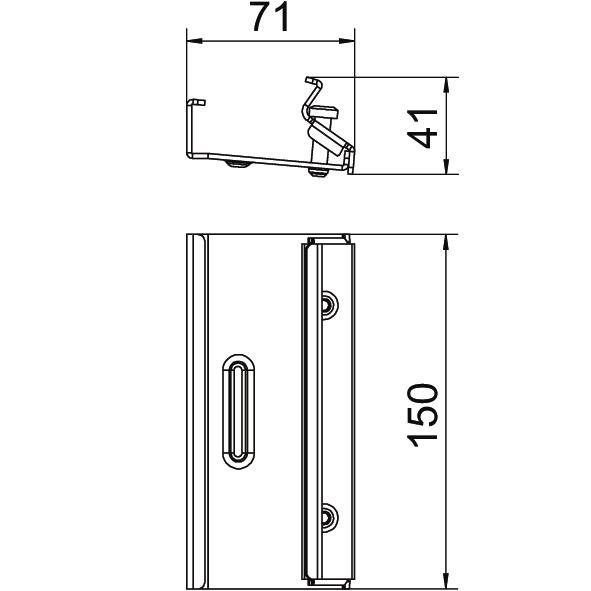

Adjustable no CO2 Footprint (GWP) Cradle-to-Gate 1,4424 kg CO2e / 1 Piece Colour zinc Depth 71 mm Dimension 40x69x150 Height 41 mm Material Steel Photovoltaic connection and fastening element version Straight connector Surface Strip galvanised zinc/aluminium, Double Dip Width 150 mm With module earthing no - All types
- Downloads
-
Data sheet LV 45 DD / 5901210 , 0.16MB , pdfREACH Declaration of conformity LV 45 DD / 5901210 , 0.12MB , pdfRoHS Declaration of conformity LV 45 DD / 5901210 , 0.13MB , pdfMounting instructions Photovoltaik-Montagesysteme Magic PV Flat Glue für Flachdächer , 3.61MB , pdfMounting instructions PV-Montagesysteme für Trapez- und Wellblechdächer , 2.53MB , pdfMounting instructions PV mounting systems for pitched roofs , 4.03MB , pdfMounting instructions PV mounting systems Magic PV Flat Pro , 5.39MB , pdfMounting instructions PV mounting systems Magic PV Flat Basic , 3.89MB , pdfNo invitation to tender text is available for this product.
