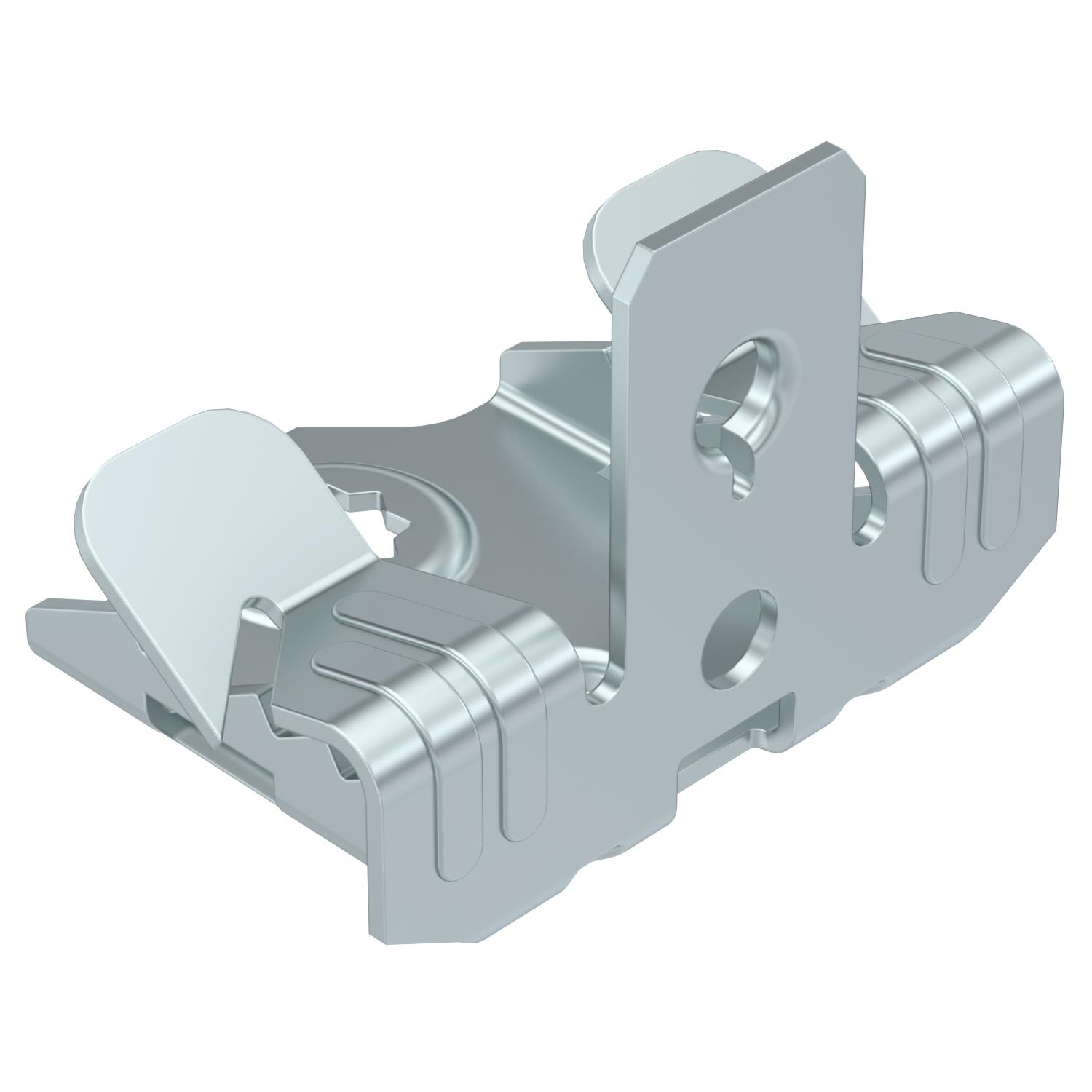

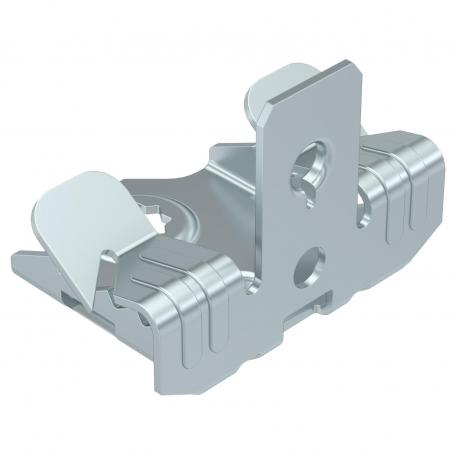

Support clamp, with female thread

Item no. 1488281 | EAN 4012197389383

45 mm
36 mm
Product description
Product description
Support clamp with M6 female thread for individual mounting solutions. Fastening through knocking onto steel girders.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity

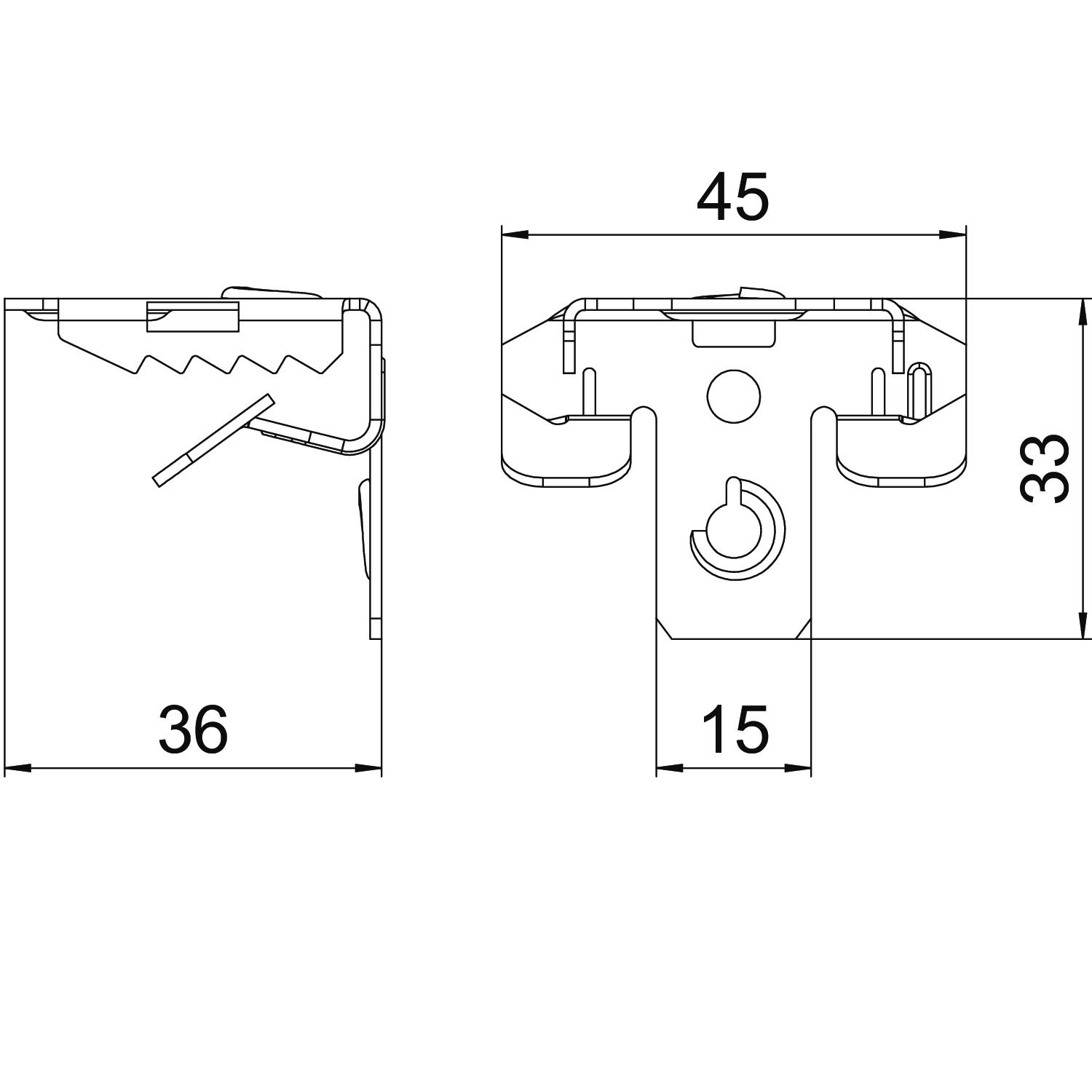

Technical data

Technical data

Breaking load 0,45 kN
Colour zinc
Connection type/component Thread
Dimension 3-7mm
Dimension L 33 mm
Fastening type Clamp
Flange thickness F max. 7 mm
Flange thickness F min. 3 mm
Height 36 mm
Hinge, adjustable no
Hinged no
Length 33 mm
Material Steel
Surface Zinc slat
Thread metric 6
Width 45 mm
All types

All types

Types Length Width Height Dimension L Flange thickness F min. Flange thickness F max. Item no. Quantity SSU
SCUIT 3-7 M6 33 mm 45 mm 36 mm 33 mm 3 mm 7 mm 1488281
100 piece
SCUIT 7-13 M6 36 mm 45 mm 36 mm 36 mm 7 mm 13 mm 1488283
100 piece
SCUIT 14-20 M6 43 mm 45 mm 36 mm 43 mm 14 mm 20 mm 1488285
100 piece
