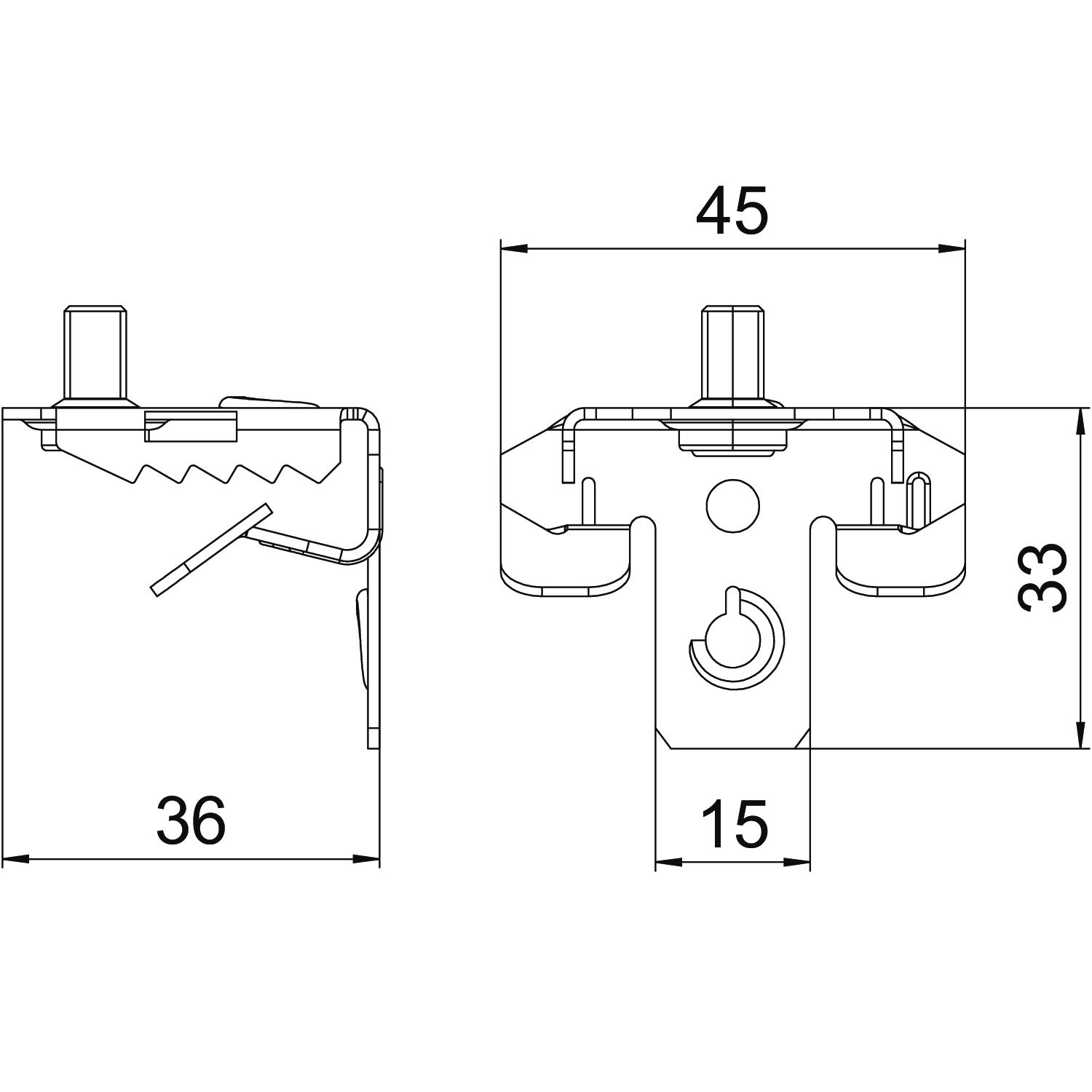

Support clamp, with threaded bolt at bottom 33 | 45 | 36 | | | | 33 | 3 | 7
morepic-1 morepic-2

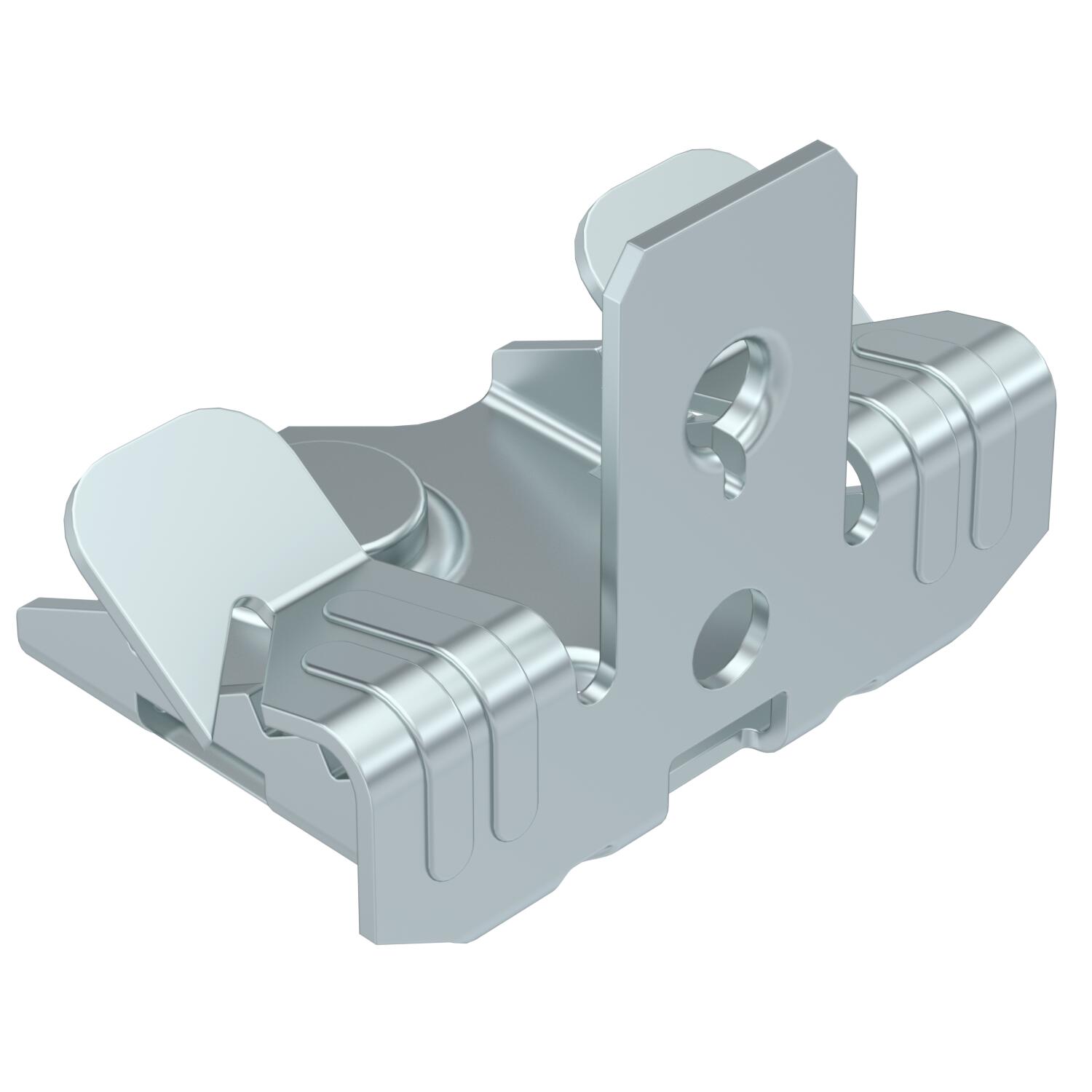

Support clamp, with threaded bolt at bottom

Item no. 1488291 | EAN 4012197389413

45 mm
36 mm
Product description
Product description
Support clamp with M6 threaded bolt at bottom for individual mounting solutions. Fastening through knocking onto steel girders.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Breaking load 0,45 kN
Colour zinc
Connection type/component Thread
Dimension 3-7mm
Dimension L 33 mm
Fastening type Clamp
Flange thickness F max. 7 mm
Flange thickness F min. 3 mm
Height 36 mm
Hinge, adjustable no
Hinged no
Length 33 mm
Material Steel
Surface Zinc slat
Thread M6 x 9 mm
Thread metric 6
Width 45 mm
All types

All types

Types Length Width Height Dimension L Flange thickness F min. Flange thickness F max. Item no. Quantity SSU
SCUTB 3-7 M6 33 mm 45 mm 36 mm 33 mm 3 mm 7 mm 1488291
100 piece
SCUTB 7-13 M6 36 mm 45 mm 36 mm 36 mm 7 mm 13 mm 1488293
100 piece
SCUTB 14-20 M6 40 mm 45 mm 36 mm 40 mm 14 mm 20 mm 1488295
100 piece
