Support element for duct 250

Item no. / Types

Width	49 mm

Product description

Product description

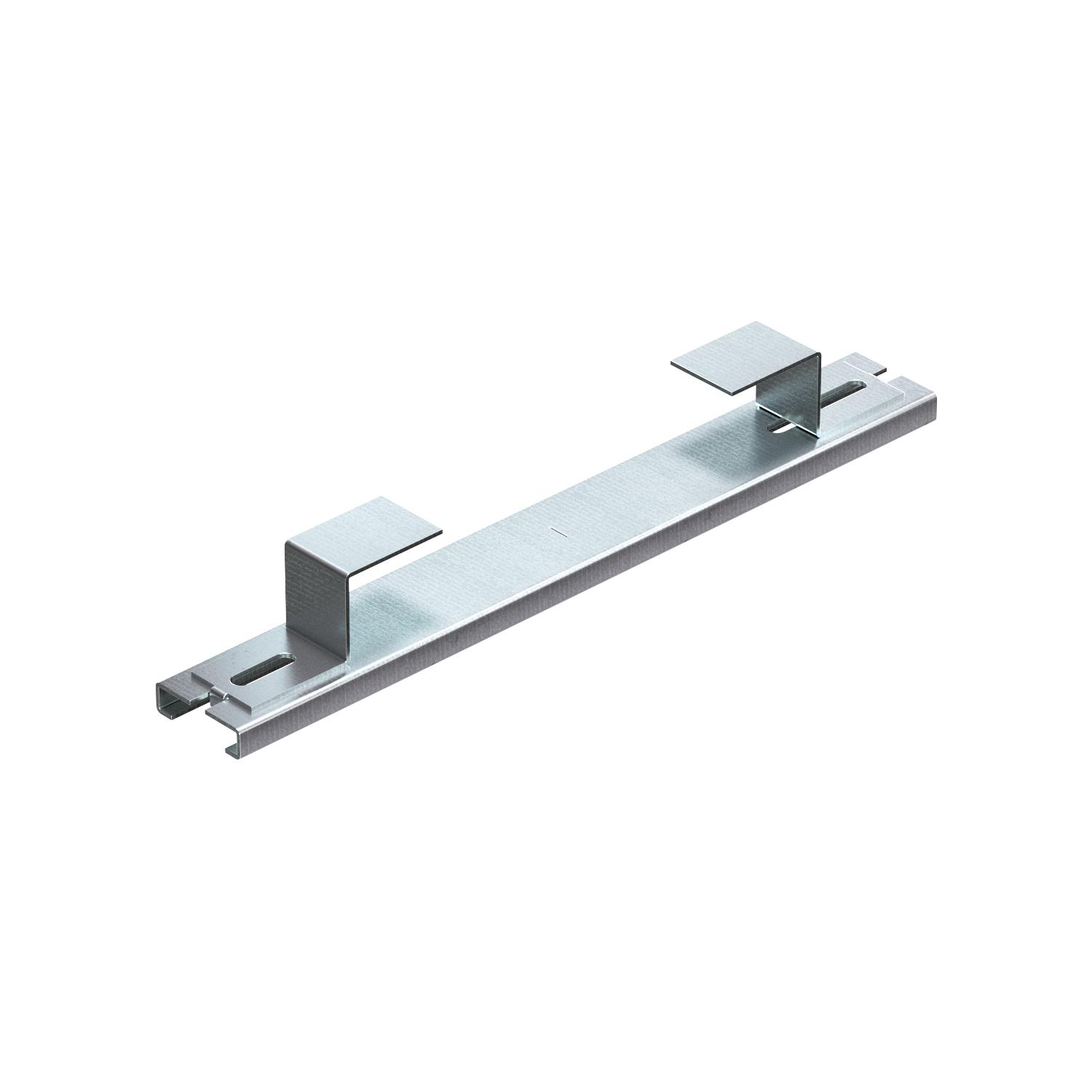

Support element to support and elevate underfloor installation ducts. With two adjustable placements for levelling units. For duct height 38 mm.

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	1,901 kg CO2e / 1 Piece

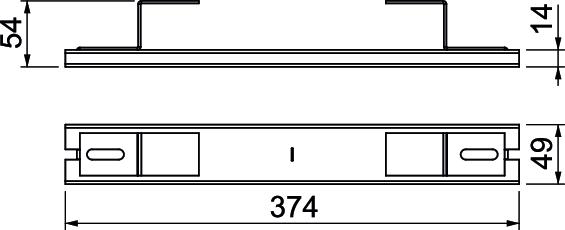

Dimension	374x49xx47,9
Dimension A	49 mm
Dimension B	250 mm
Dimension L	374 mm
Duct height, min.	38 mm

All types

All types

Types	Width	Item no.	Quantity	SSU
IBST 25038	49 mm	7399914	piece	1 piece
IBST 25048	49 mm	7399915	piece	1 piece

Downloads

Data sheet IBST 25038 / 7399914 , 0.16MB , pdf

Catalogue Floor installation systems and Underfloor applications , 42.28MB , pdf

Mounting instructions In-concrete system IBK , 3.27MB , pdf

IBST 25038 / 7399914
