Support element for duct 350 49 |
morepic-1 morepic-2

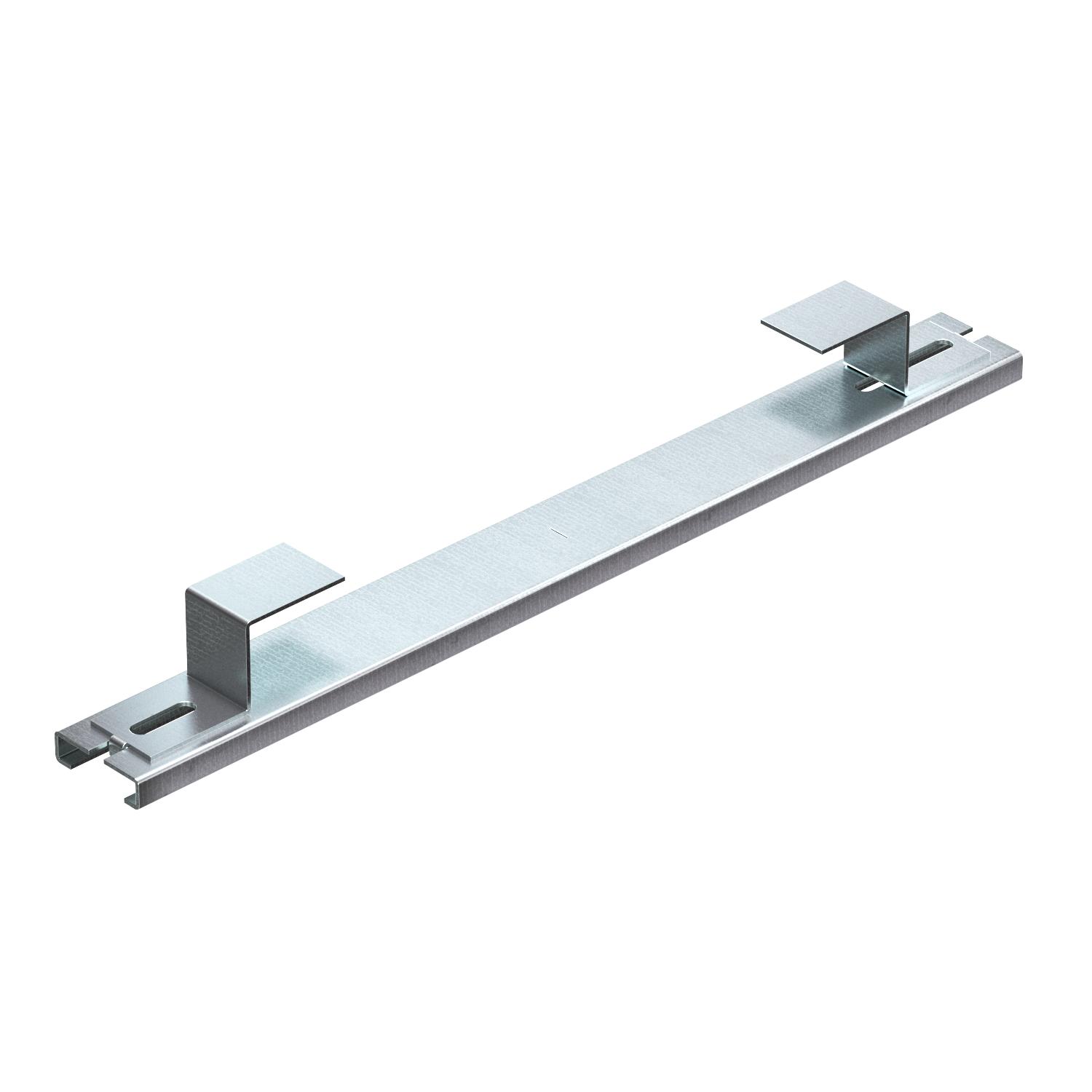

Support element for duct 350

Item no. 7399917 | EAN 4012197393373

49 mm
Product description
Product description
Support element to support and elevate underfloor installation ducts. With two adjustable placements for levelling units. For duct height 38 mm.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 2,265 kg CO2e / 1 Piece

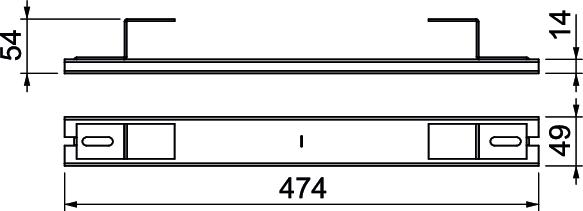

Dimension 474x49xx47,9
Dimension A 49 mm
Dimension B 350 mm
Dimension L 474 mm
Duct height, min. 38 mm
Height 14 mm
Length 474 mm
Material Steel
Surface Strip galvanized
Width 49 mm
All types

All types

Types Width Item no. Quantity SSU
IBST 35038 49 mm 7399917
1 piece
IBST 35048 49 mm 7399918
1 piece
Downloads

Download

Download

REACH Declaration of conformity IBST 35038 / 7399917 , 0.12MB , pdf
Download
RoHS Declaration of conformity IBST 35038 / 7399917 , 0.13MB , pdf
Download

Download

IBST 35038 / 7399917
Download
