Support plate 3x type LC-Duplex for mounting support

Name: Support plate 3x type LC-Duplex for mounting support
Brand: OBO Bettermann
SKU: 7407810

Product description

Product description

Support plate to accept three data technology pass-through sockets, type LC-Duplex

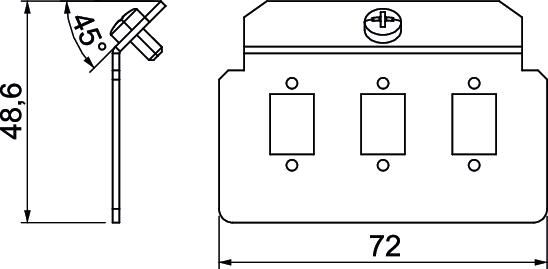

Dimensions of a mounting opening in mm: 9.6 x 13.2

Technical data

Accessory mounting type	Lock
CO2 Footprint (GWP) Cradle-to-Gate	1,6585 kg CO2e / 1 Piece
Connection options	2 data technology pass-through sockets, type LC-Duplex
Decouplable	no
Depth	48,6 mm
Device type	Keystone module
Dimension	72x49x12
Fastening type	Lockable
Floor covering protection frame	no
Floor plate	no
Height	12 mm
Installation opening for on-floor tank	no
Installation technology	Keystone module

Labelling panel	no
Length	72 mm
Lowerable to be flush-floor	no
Material	Steel
Number of installable devices	2
Seal installation option	no
Strain relief option	yes
Suitable for screed-covered underfloor ducts	yes
Suitable for screed-flush closed underfloor ducts	yes
Suitable for underfloor ducts	yes
Version for	Support shape
Width	48,6 mm
With floor covering recess	no
