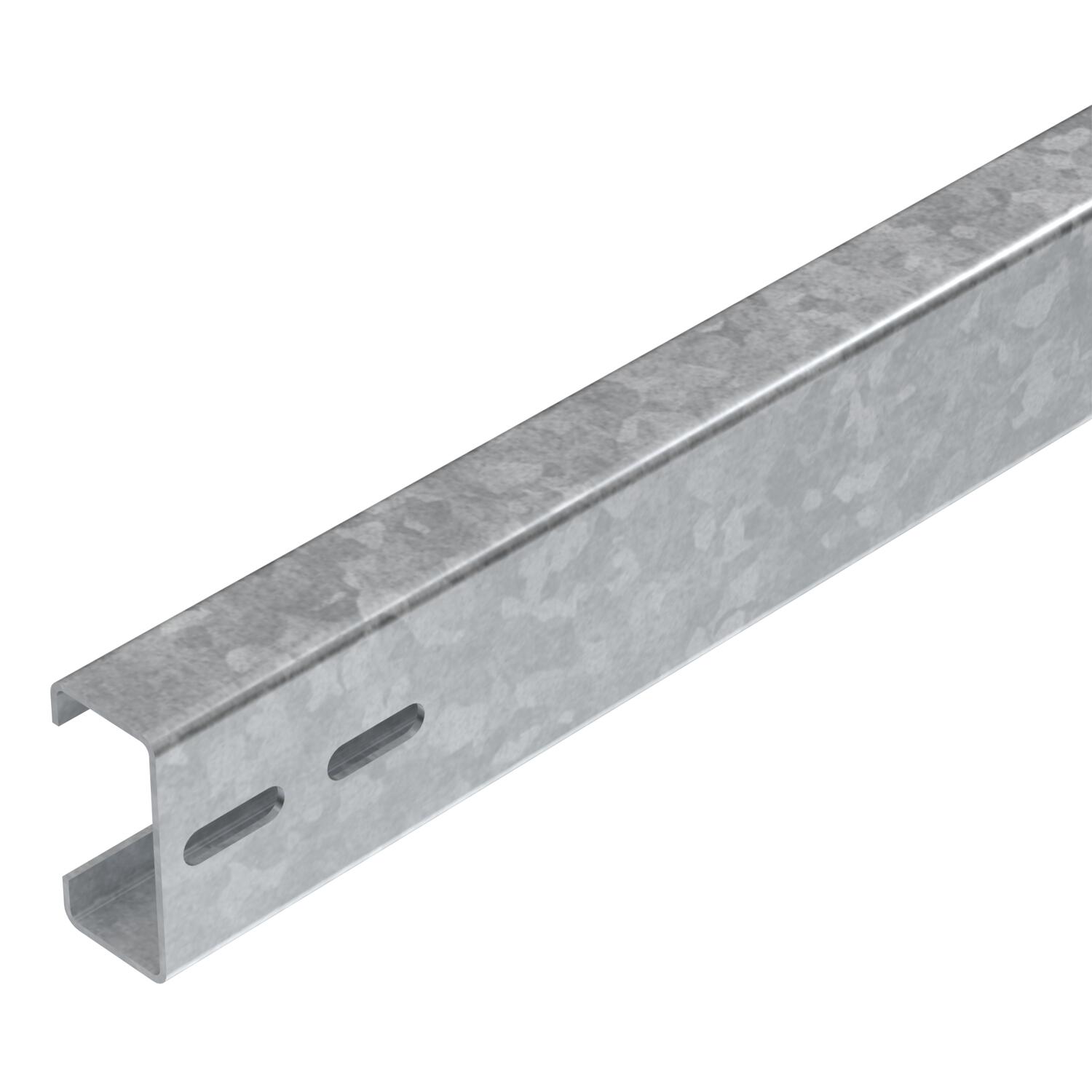

Support profile for PV module mounting, free-standing system
Item no. 5900540 | EAN 4012197489595
- Product description
-
Product descriptionSupport profile to mount photovoltaic modules on free-standing systems. Mounting of support profile on pre-mounted supports with KV FT cross-connectors. Mounting of the PV modules on the support profile with end and/or connection clamps of type KLE and/or KLZ. Connection of multiple support profiles with LV FT straight connectors and KV FT cross-connectors, screw-on.
- Technical data
-
Technical data

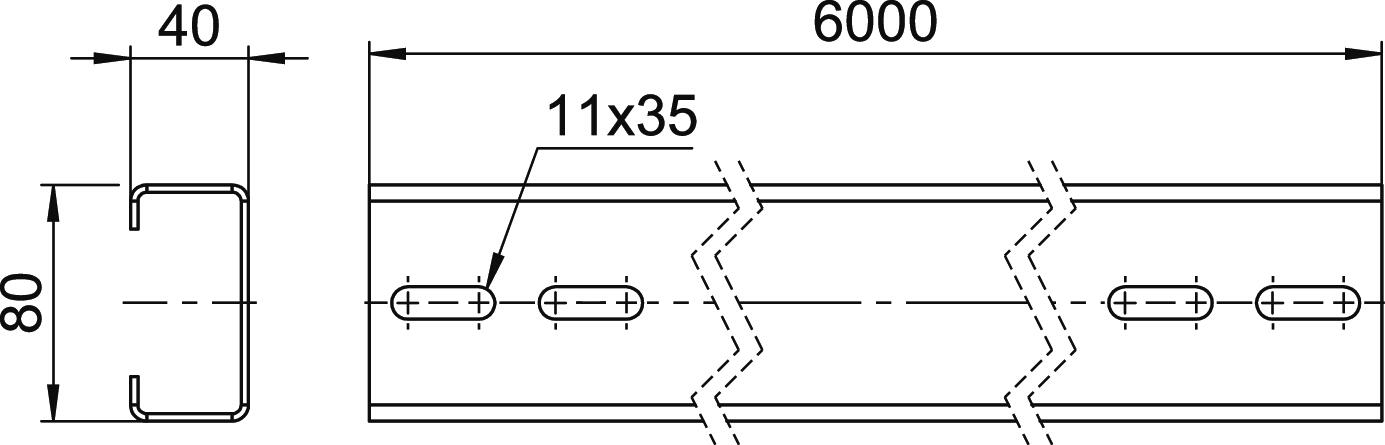

Cable duct optional no Cable duct, integrated no Dimension 40x80x6000 Height 80 mm Length 6000 mm Material Steel Section modulus Sx 10600 mm³ Section modulus Sy 5200 mm³ Surface Hot-dip galvanised Width 40 mm - All types
- Downloads
-
REACH Declaration of conformity TPU 6000 FT / 5900540 , 0.12MB , pdfRoHS Declaration of conformity TPU 6000 FT / 5900540 , 0.13MB , pdfNo invitation to tender text is available for this product.
