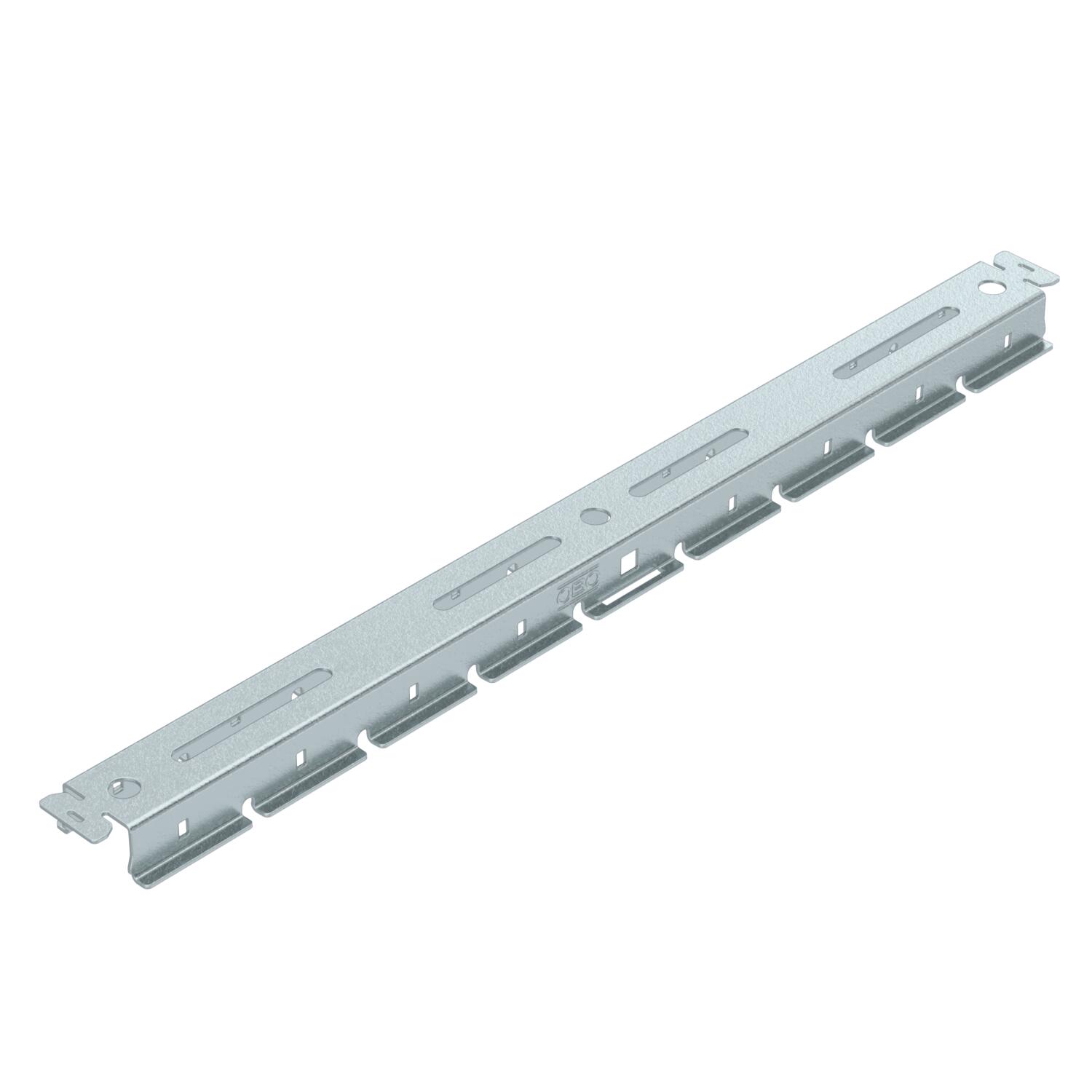

Support rail MagicFix
Item no. 6426310 | EAN 4012197519483
- Product description
-
Product descriptionSupport rail for light cable trays, mesh cable trays and cable ladders for the creation of pendulum suspensions and centre suspensions. Tool-free fastening through clamp mount for mesh cable trays and quick fastener for trays and ladders. Alternatively, screw fastening possible Suspension with suspension strips Magic Fix. Tool-free fastening of the support rail on suspension strips through fastening straps.
-
- Technical data
-
Technical data

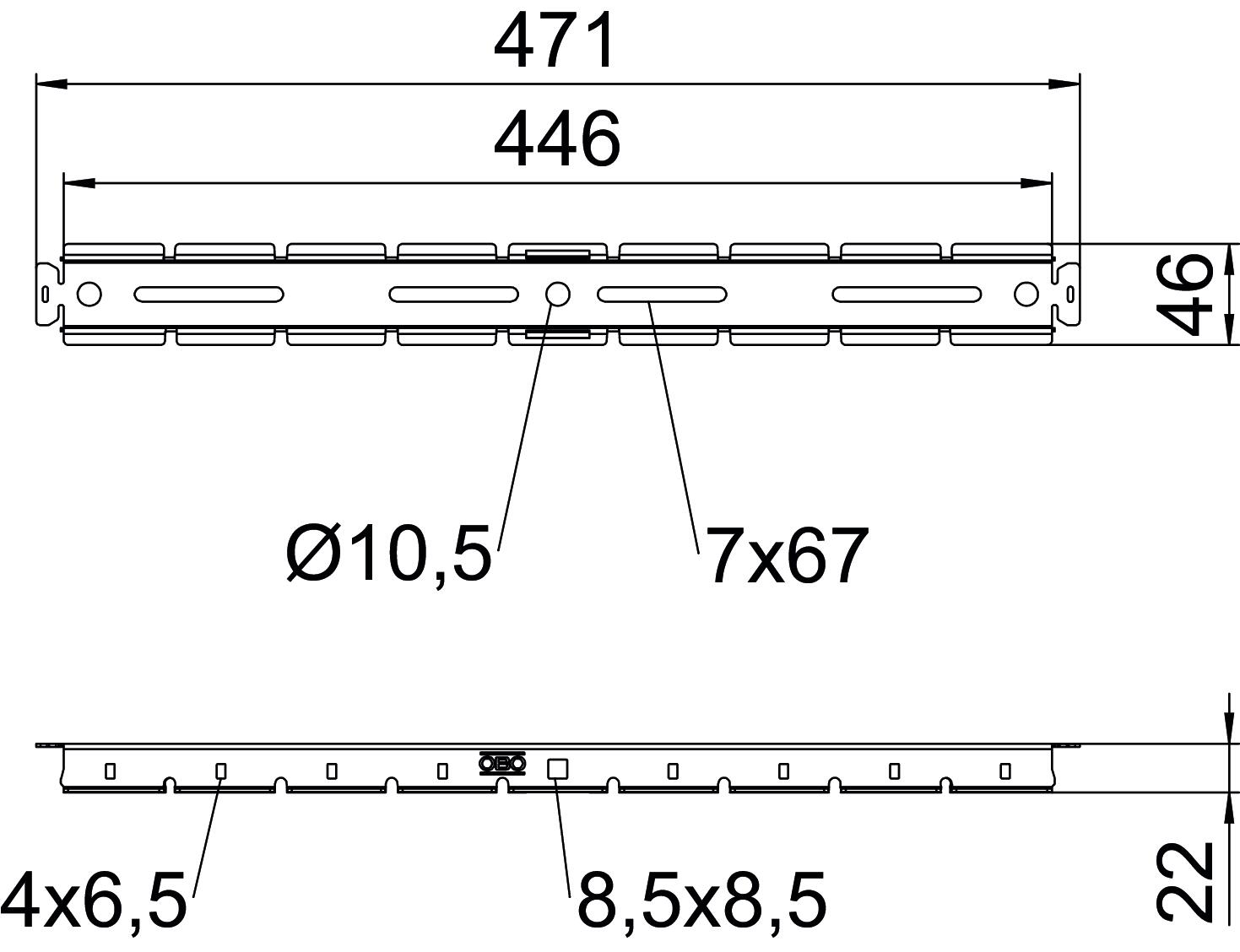

Colour zinc Dimension 22x45x471 Dimension L 446 mm Dimension L2 471 mm Height 22 mm Hole diameter 10,5 mm Hole shape (ETIM) Long slot Length 446 mm Maß sH 7x67 mm Material Steel Material thickness 1,5 mm Profile shape Miscellaneous Suitable for cable ladder yes Suitable for cable tray yes Suitable for mesh cable tray yes Suitable for profile shapes Miscellaneous Surface Strip galvanised Width 46 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Protective cap MagicFix
SKM OR 6426180 1 piece Mounting accessories
Products Types Item no. Quantity SSU
Quick fastener MagicFix
SBM FS 6426160 1 piece - Downloads
-
No invitation to tender text is available for this product.
