Surge arrester V10 – Mini 3+N/PE | | IP20
morepic-1 morepic-2

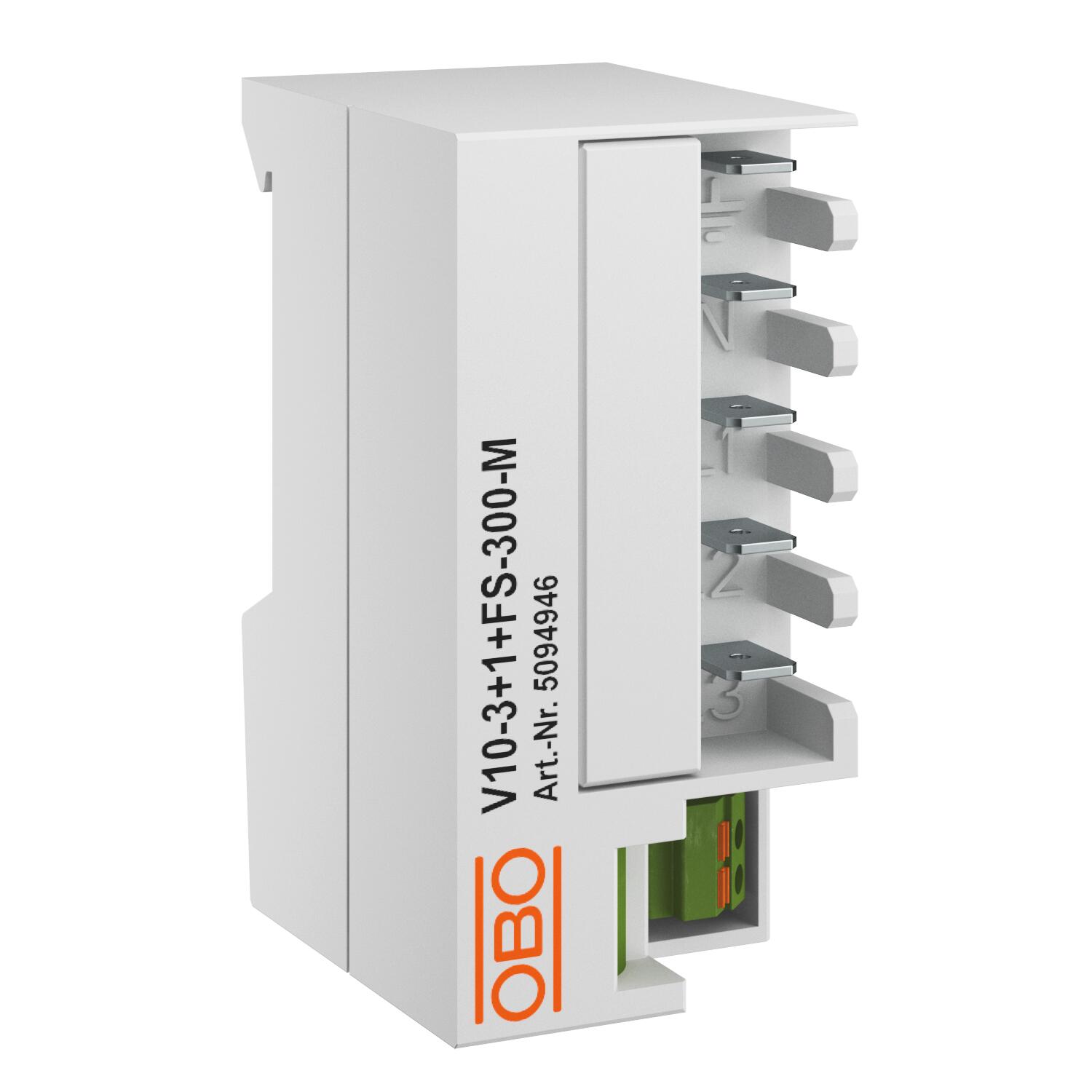

Surge arrester V10 – Mini

Item no. 5094946 | EAN 4012197504922

5094946 / V10-3+1+FS-300-M
3+N/PE
IP20
Product description
Product description
Surge protective device, compact module, type 2+3

• Surge protection in the smallest of spaces, e.g. in AC charging stations
• Discharge capacity up to 20kA (L-N) and 40kA (N-PE)
• Integrated 3+1-solution for TN and TT network systems with a 35 mm module width
• Including thermal and dynamic cut-off unit and visual funtion display
• Easy and quick installation thanks to FastOn connection terminals
• Wiring set (5089657 – WS-V10-3+1) available
• Including a potential-free break contact for remote signalling
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • EurAsian Conformity
  • Transition from LPZ 1 to LPZ 3
  • Protection device to DIN EN 61643-11 or IEC 61643-11
Technical data

Connectivity options

Arrester surge current (8/20 µs) [total] 60 kA
Conductor cross-section, rigid (single-wire/multiwire), max. 10 mm²
Conductor cross-section, rigid (single-wire/multiwire), min. 2,5 mm²
Connection cross-section, FM terminals, min. 1,5 mm²
Connection cross-section, FM terminals, min. 16 AWG
Dimension 300V
Follow current quenching capacity (eff) [N-PE] 0,1 kA

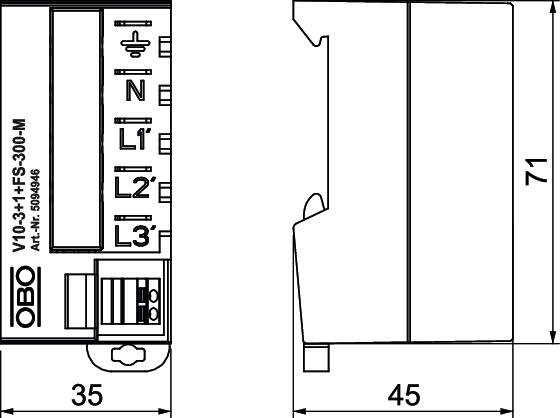

Height 76 mm
Humidity, max. 95 %
Humidity, min. 5 %
Installation type DIN rail 35 mm
Integrated back-up fuse no
Length 38 mm
Lightning protection zone LPZ 1→3
Max. mains-side overcurrent protection 63 A gG
Maximum back-up fuse 63 A
Maximum continuous voltage (L-N) 300 V
Maximum continuous voltage (N-PE) 255 V
Maximum discharge current (8/20 μs) [L-N] 20 kA
Maximum discharge current (8/20 μs) [N-PE] 40 kA
Network form All
Nominal discharge current (8/20 µs) 10 kA
Nominal voltage AC (50/60 Hz) 240 V
Permitted temperature range, max. 85 °C
Permitted temperature range, min. -40 °C
Pole version 3+N/PE
Protection rating IP20
Remote signalling yes
Signalling on device Visual
SPD to EN 61643-11 Type 2+3
SPD to IEC 61643-1 Class II+III
Suitable for outdoor use no
Switching power AC 250V / 1A ; 125V / 1A
Switching power DC 48V / 0,5A; 24V / 0,5A; 12V / 0,5A
Test class, type 2 yes
Test class, type 3 yes
TN network form yes
TN-C-S network form yes
TN-S network form yes
TOV voltage [L-N] ‒ fail safe mode ‒ 120 min. 442 V
TOV voltage [L-N] ‒ withstand mode ‒ 5 s 337 V
TT network form yes
Version for 3+NPE
Width 35 mm
All types

All types

Types Pole version Protection rating Item no. Quantity SSU
V10-3+1+FS-300-M 3+N/PE IP20 5094946
1 piece
