Suspension bracket, tunnel
Item no. 6419660 | EAN 4012197348748
- Product description
-

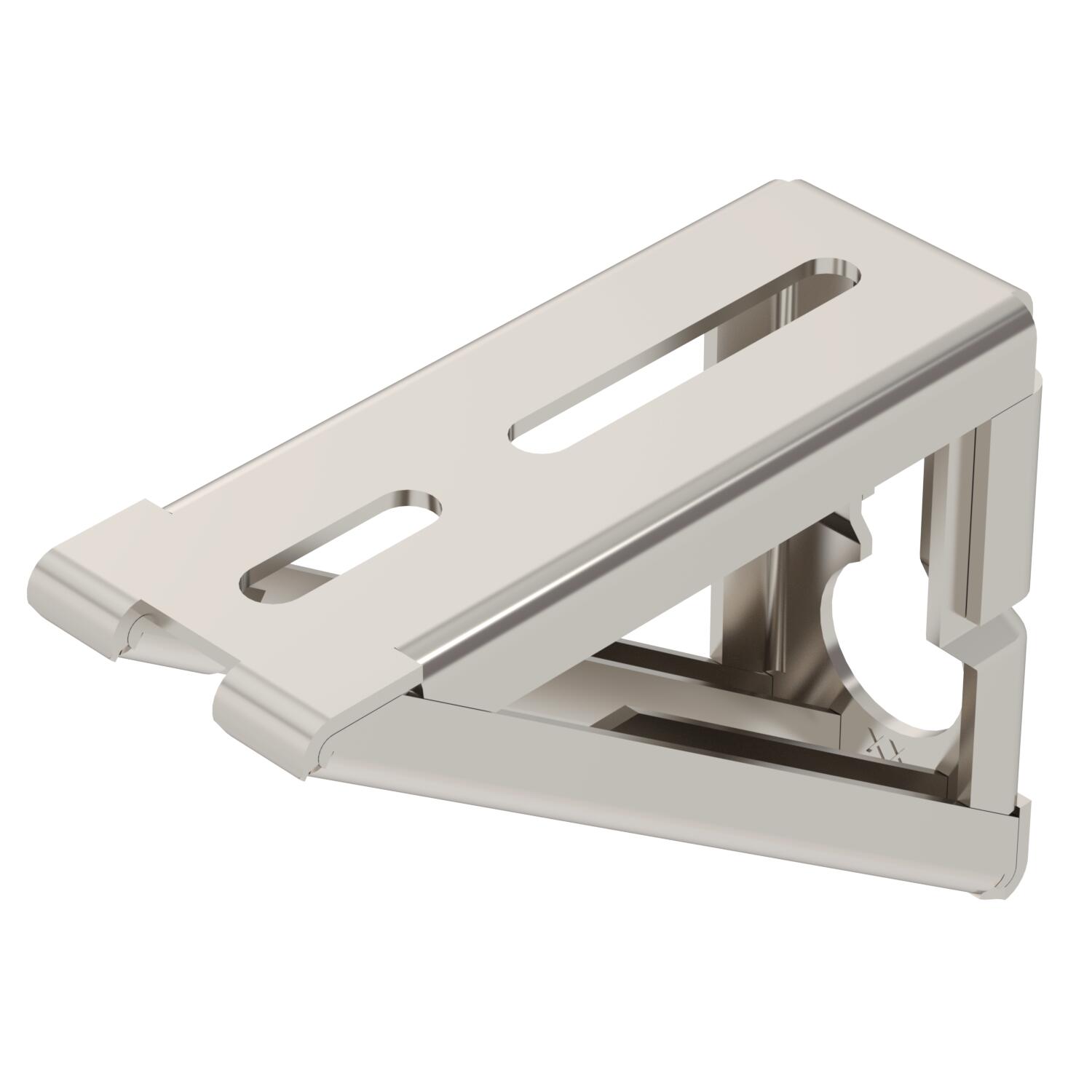

Product descriptionSuspension bracket for wall mounting of cable trays, mesh cable trays and cable ladders specifically for tunnel construction. Tested to DIN 4102-12.
-
- Technical data
-
Technical data

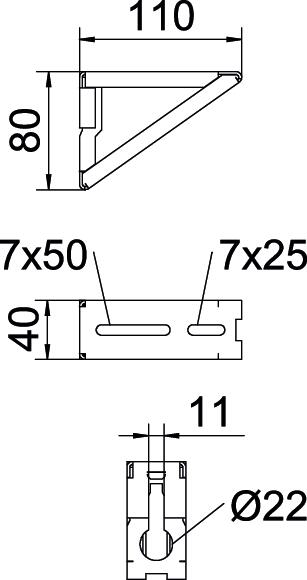

CO2 Footprint (GWP) Cradle-to-Gate 1,6166 kg CO2e / 1 Piece Colour stainless steel Dimension B110mm Dimension A 40 mm Dimension B 110 mm Dimension H 80 mm F in kN 4,5 kN Height 80 mm Maintain electrical functions yes Material Stainless steel 1.4529 Suitable for cable ladder yes Suitable for cable tray yes Suitable for mesh cable tray yes Width 110 mm - All types
- Downloads
-
Data sheet AHW-T 100 VA4529 / 6419660 , 0.20MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity AHW-T 100 VA4529 / 6419660 , 0.11MB , pdfUK Declaration of Conformity AHW-T 100 VA4529 / 6419660 , 0.09MB , pdfREACH Declaration of conformity AHW-T 100 VA4529 / 6419660 , 0.12MB , pdfRoHS Declaration of conformity AHW-T 100 VA4529 / 6419660 , 0.13MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
