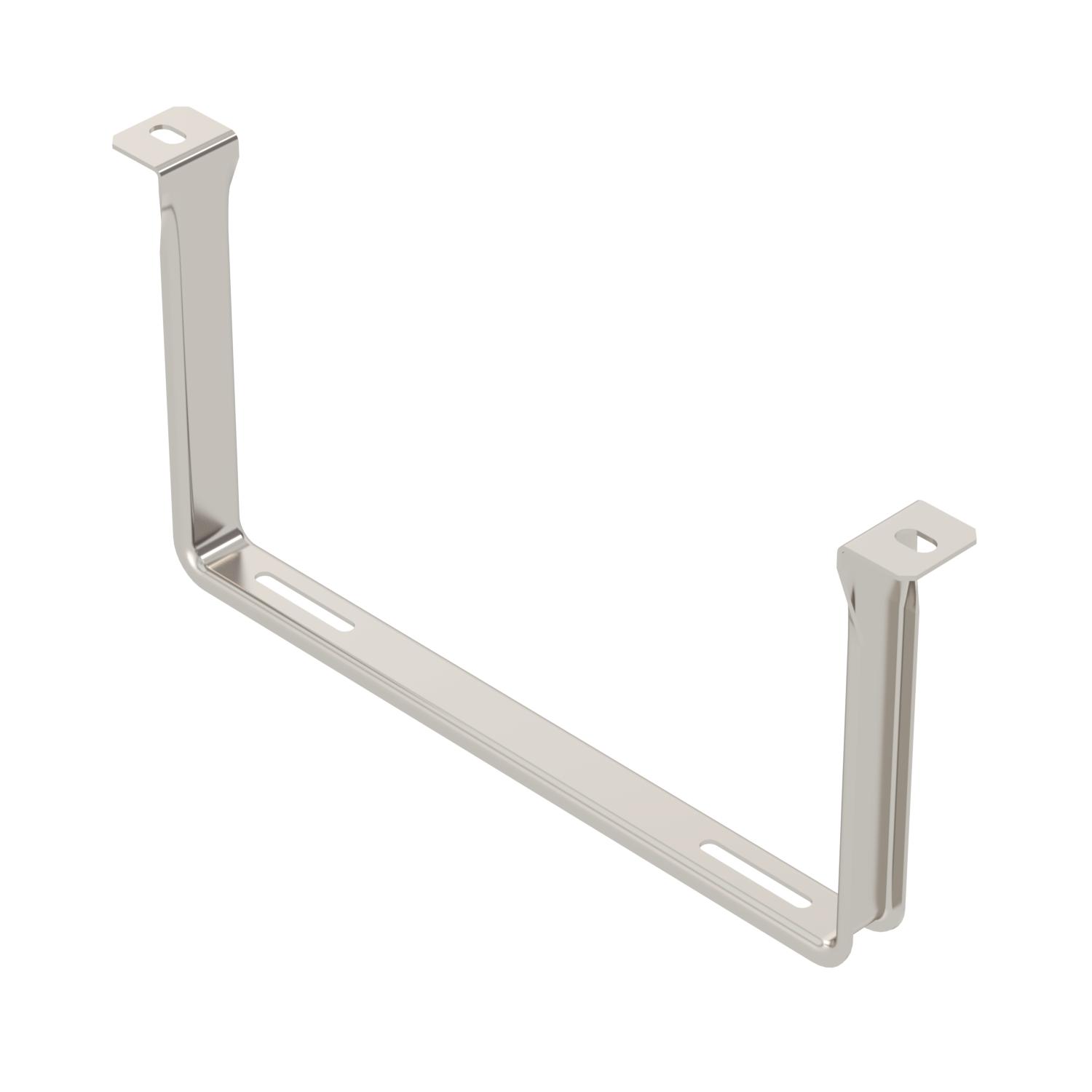

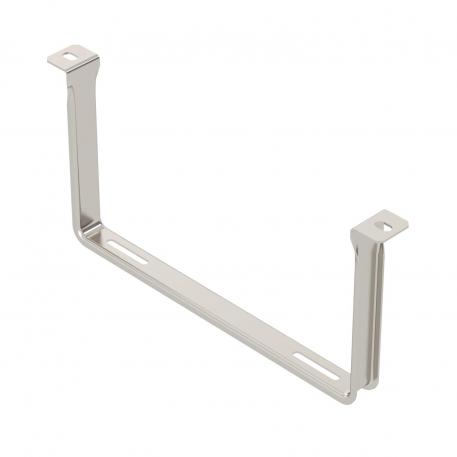

Suspension clamp, tunnel 320
Item no. 6364013 | EAN 4012197348564
- Product description
-
Product descriptionSuspension clamp to suspend cable trays, mesh cable trays and cable ladders specifically for tunnel construction. Tested to DIN 4102-12.
-
- Technical data
-
Technical data

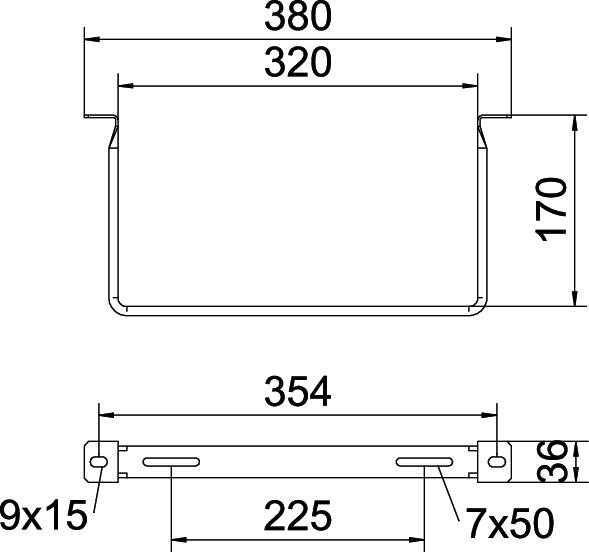

Adjustable no CO2 Footprint (GWP) Cradle-to-Gate 2,3527 kg CO2e / 1 Piece Colour stainless steel Dimension 170x320 Dimension b 225 mm Dimension B 320 mm Dimension D 50 mm Dimension H 170 mm Dimension l 354 mm Dimension L 380 mm F in kN 3,5 kN Maintain electrical functions yes Material Stainless steel 1.4529 Material thickness 2 mm Suitable for cable ladder yes Suitable for cable tray yes Suitable for mesh cable tray yes Tray fastening Screw-on Version for Miscellaneous - All types
- Downloads
-
Data sheet AHB-T1732 VA4529 / 6364013 , 0.16MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity AHB-T1732 VA4529 / 6364013 , 0.10MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
