Suspension strip MagicFix 28
morepic-1 morepic-2

Suspension strip MagicFix

Item no. 6426206 | EAN 4012197509637

28 mm
Product description
Product description
Suspension straps for the supsension of the MagicFix support rail from the ceiling, for the creation of pendulum or centre suspensions with light cable trays, mesh cable trays or cable ladders. Graded height ajustments and multi-layered installation of trays and ladders possible.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour zinc

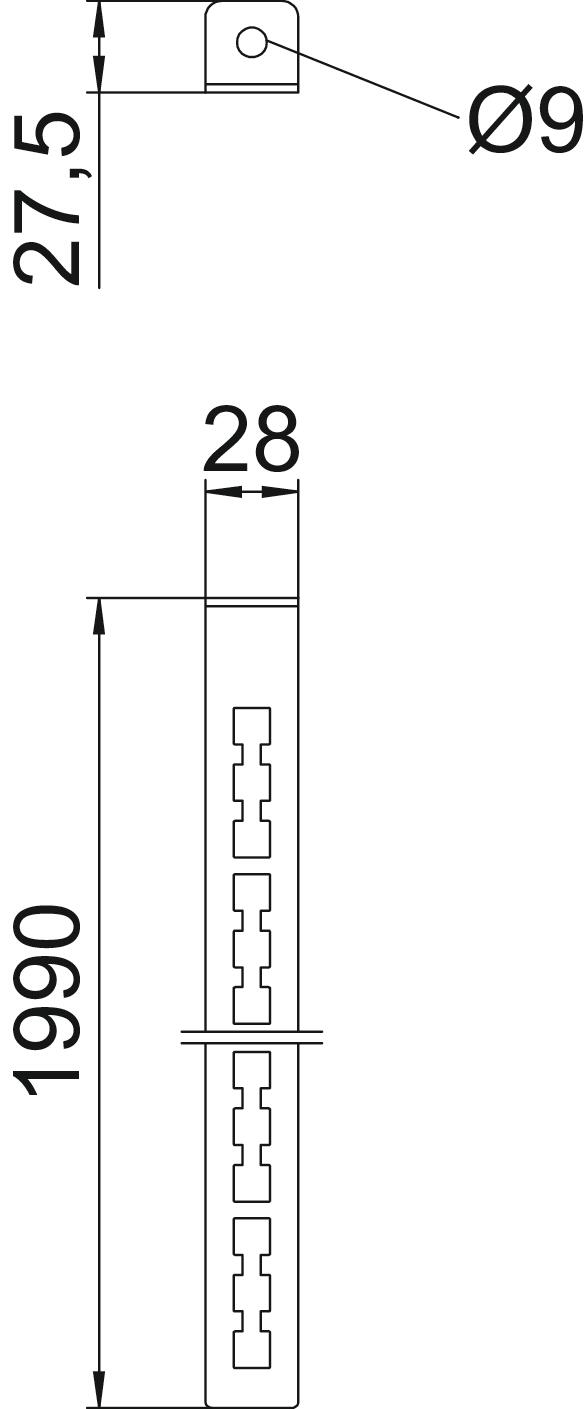

Dimension 2000mm
Hole diameter 9 mm
Length 1990 mm
Material Steel
Material thickness 1,5 mm
Profile shape Flat profile
Suitable for profile shapes Flat profile
Surface Strip galvanised
Width 28 mm
All types

All types

Types Width Item no. Quantity SSU
ASM 50 FS 28 mm 6426200
1 piece
ASM 100 FS 28 mm 6426202
1 piece
ASM 150 FS 28 mm 6426204
1 piece
ASM 200 FS 28 mm 6426206
1 piece
Accessories

System accessories

Products Types Item no. Quantity SSU
Protective cap MagicFix Protective cap MagicFix SKM OR 6426180
1 piece
