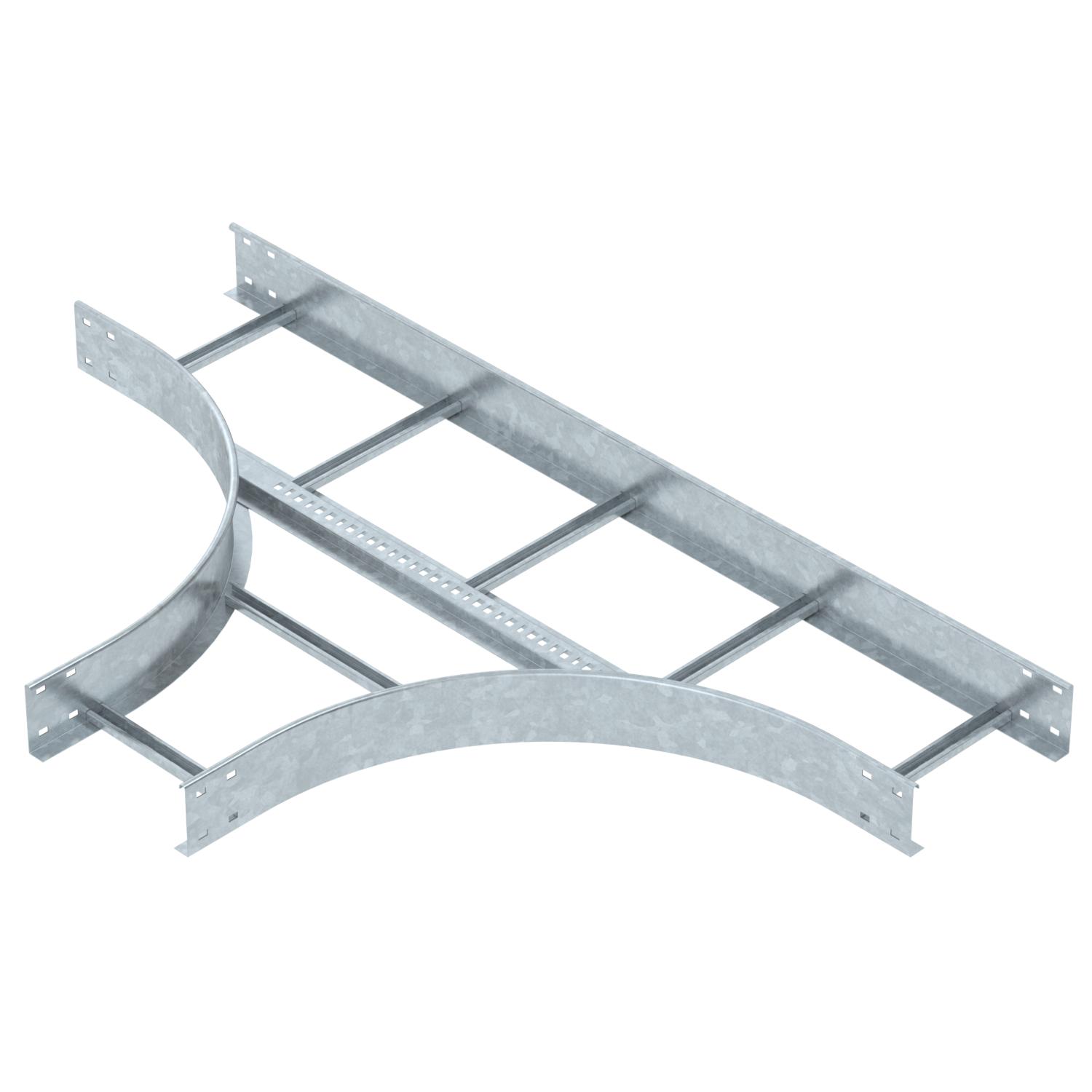

T piece 110 FT
Item no. 6219405 | EAN 4012196686032
- Product description
-
Product descriptionT piece to create a horizontal branch, fittings for cable ladders of side height110 mm. With connector perforation. Can be used indoors and outdoors. Connector and fastening material must be ordered separately. Fittings must be supported by the support structure.
-
- Technical data
-
Technical data

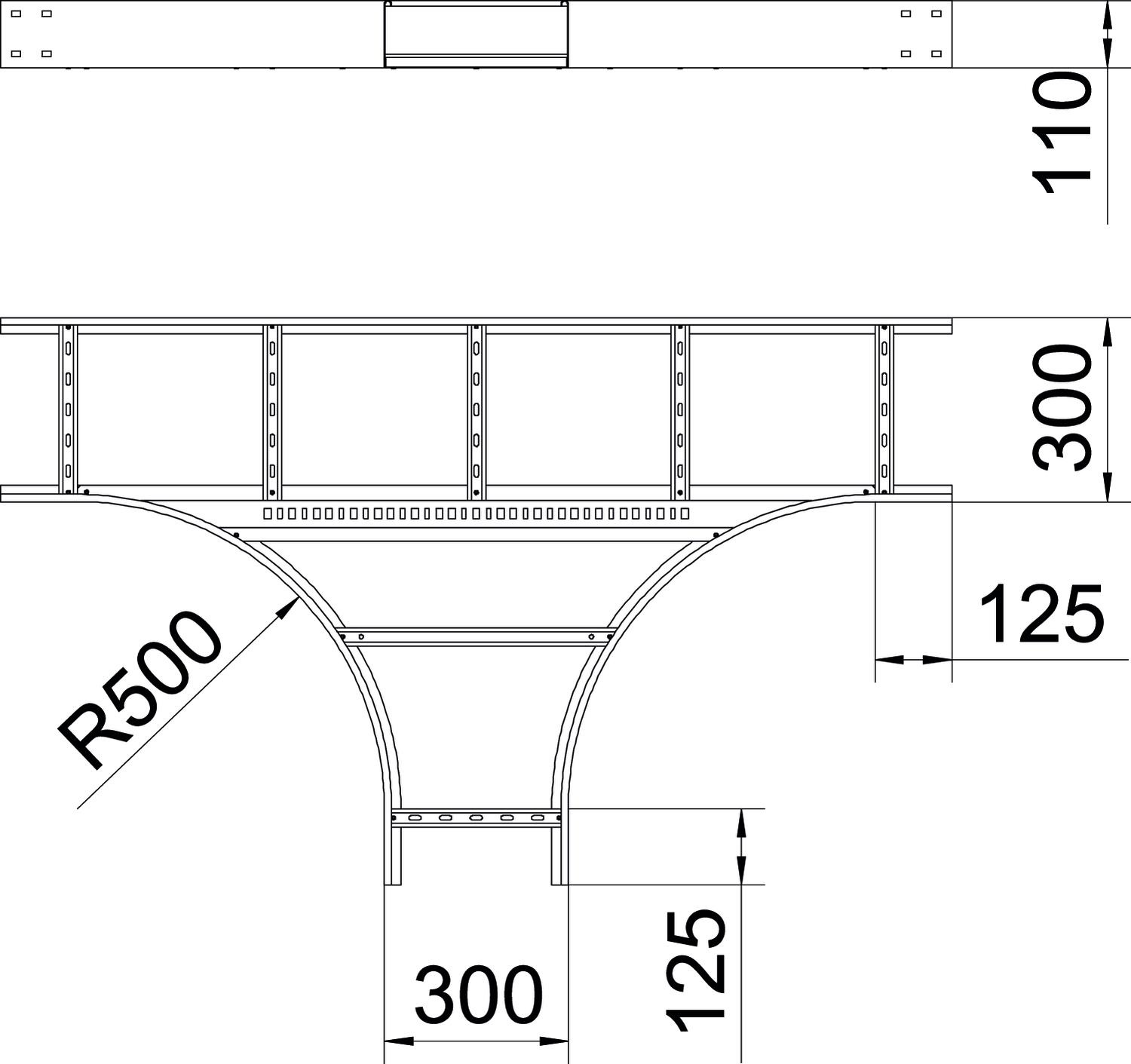

CO2 Footprint (GWP) Cradle-to-Gate 27,064 kg CO2e / 1 Piece Colour zinc Dimension 110x300 Dimension B 300 mm Dimension R 500 mm Height 110 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Side rail version Flat profile Surface Hot-dip galvanised Type Exit symmetrical Version of the rungs Profile unperforated Wide-span version no Width 300 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Straight connector FT
LVG 110 FT 6216548 10 piece - Downloads
-
Data sheet LT 1130 R5 FT / 6219405 , 0.22MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity LT 1130 R5 FT / 6219405 , 0.10MB , pdfUK Declaration of Conformity LT 1130 R5 FT / 6219405 , 0.09MB , pdfREACH Declaration of conformity LT 1130 R5 FT / 6219405 , 0.12MB , pdfRoHS Declaration of conformity LT 1130 R5 FT / 6219405 , 0.12MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
