T piece 60 FS
Item no. 6213784 | EAN 4012196685714
- Product description
-

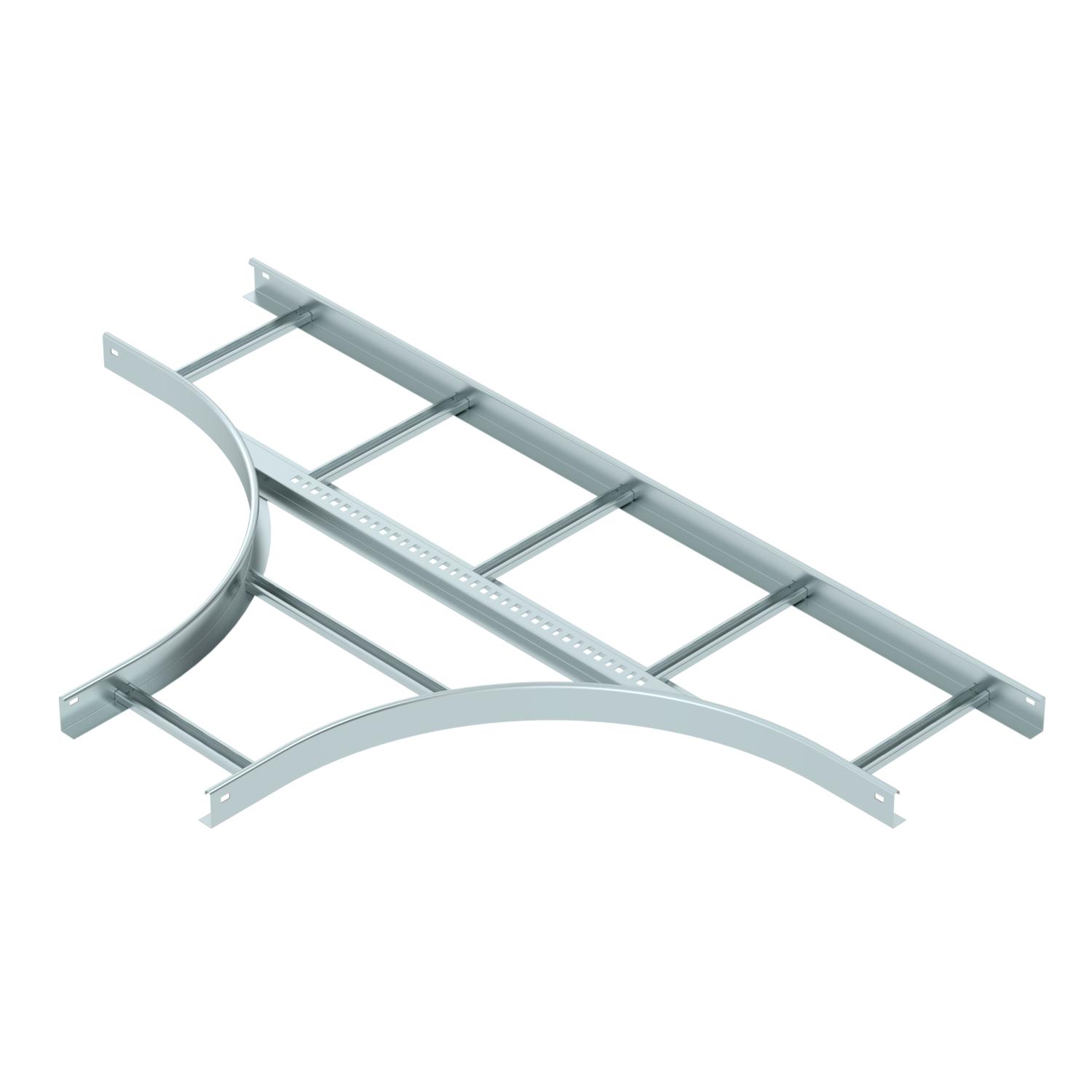

Product descriptionT piece, horizontal, for all cable ladder types of 60 mm side height.
Connectors should be ordered separately and in the appropriate quantity.
-
- Technical data
-
Technical data

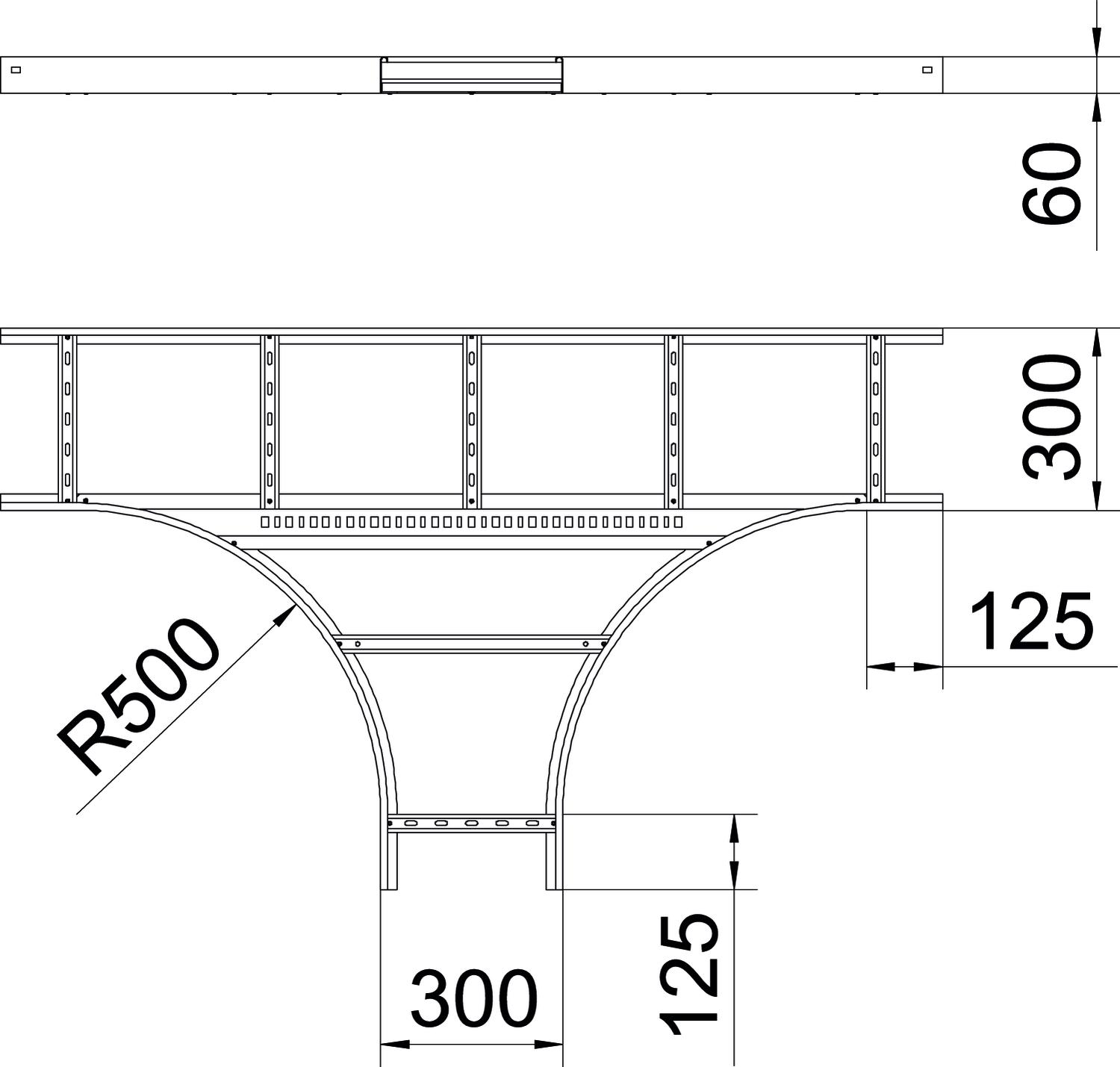

CO2 Footprint (GWP) Cradle-to-Gate 22,2399 kg CO2e / 1 Piece Colour zinc Dimension 60x300 Dimension B 300 mm Dimension R 500 mm Height 60 mm Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rustproof steel, pickled no Side rail version Flat profile Surface Strip galvanized Type Exit symmetrical Version of the rungs Profile unperforated Wide-span version no Width 300 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Straight connector FS
LVG 60 FS 6208840 10 piece - Downloads
-
