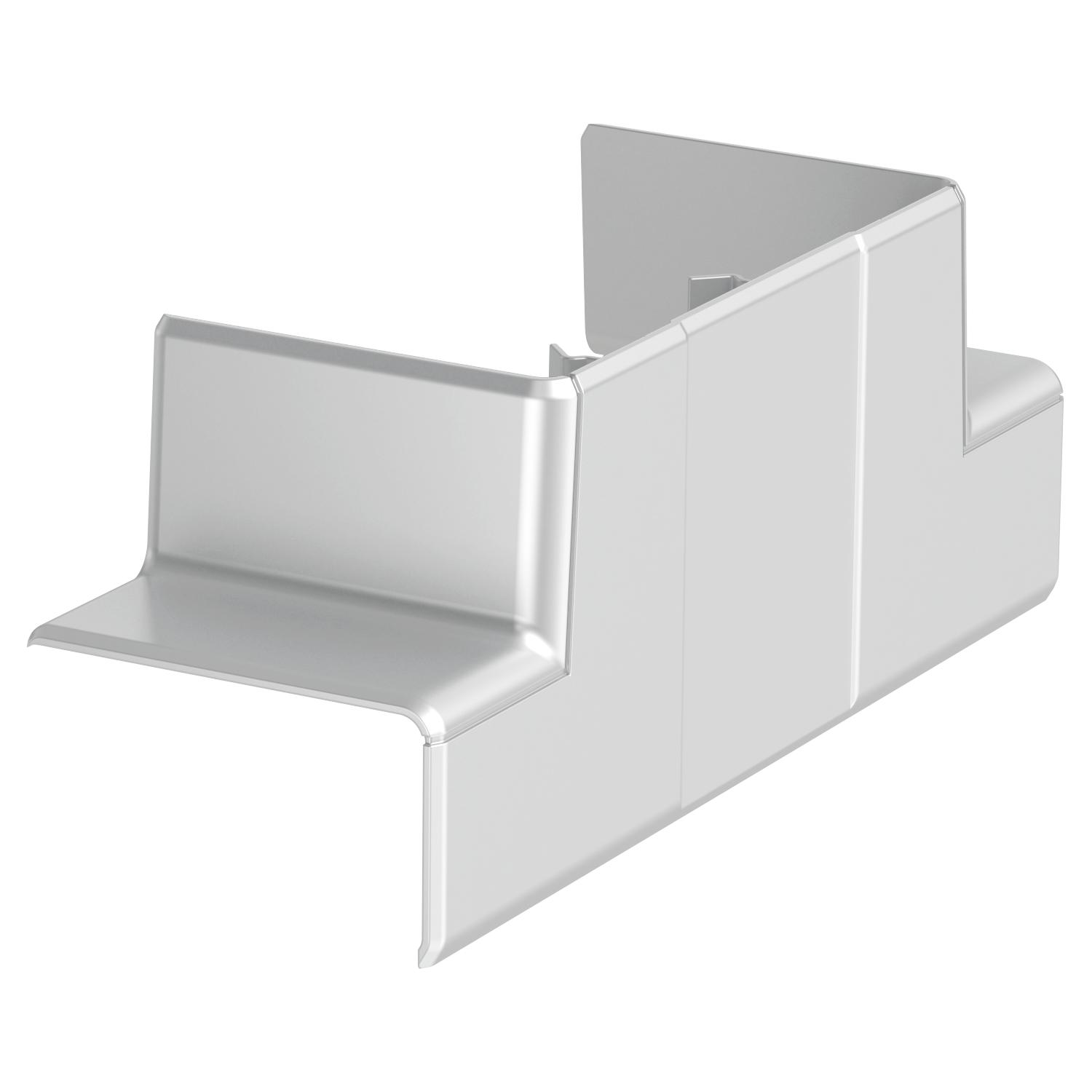

T piece adapter, for device installation trunking Rapid 45-2 type 53100
Item no. 6113104 | EAN 4012196418176
- Product description
-
Product descriptionT piece to create a 90° junction of the system size 53100 on the system size 53100.
-
- Technical data
-
Technical data

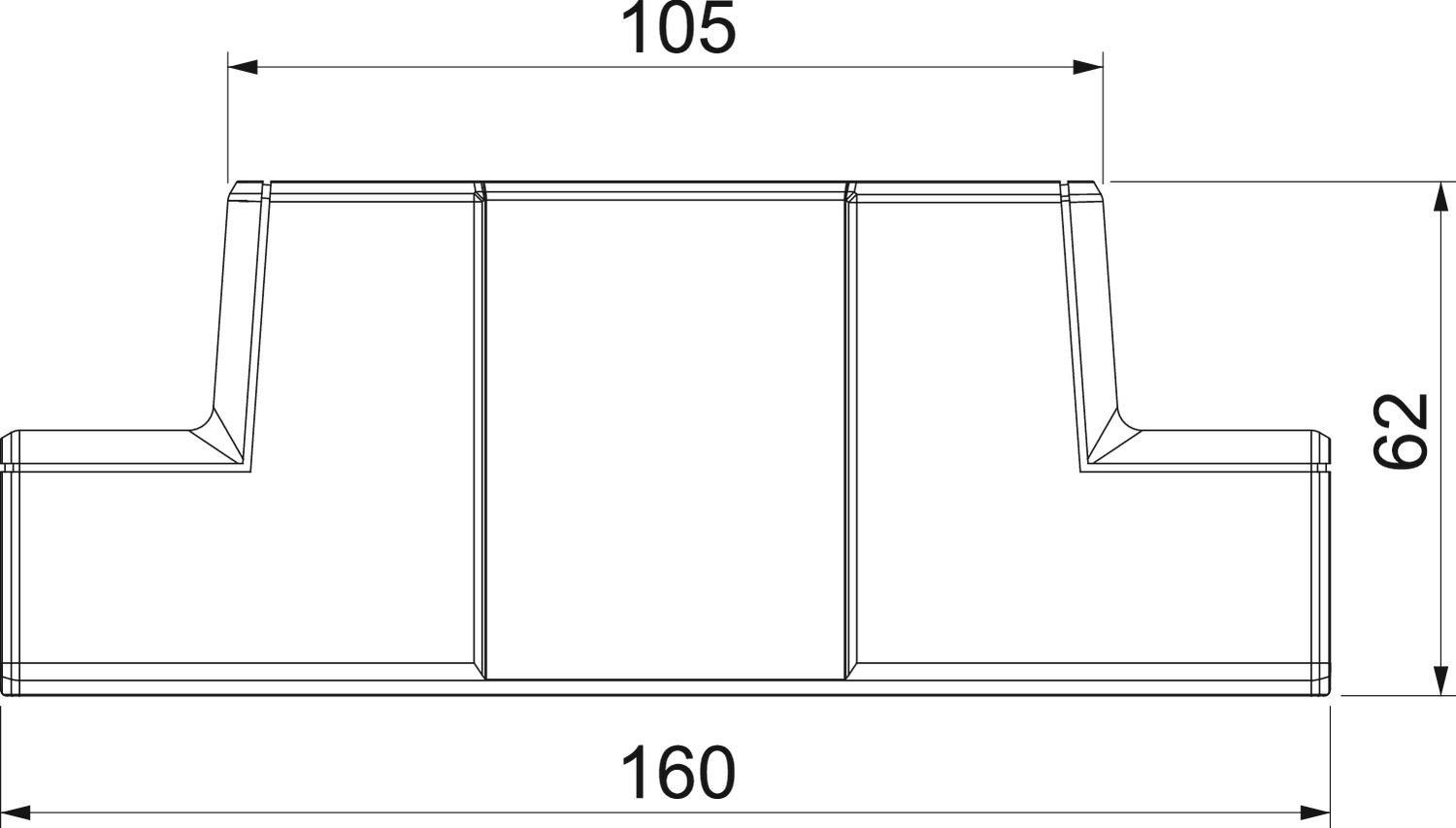

Antibacterial treatment no Cable retaining clip no CO2 Footprint (GWP) Cradle-to-Gate 0,3403 kg CO2e / 1 Piece Colour aluminium Cover mounting type Cross-over Dimension 160x62x56 Duct connector no for duct width 100 mm for trunking height 53 mm Halogen-free yes Height 55,5 mm Length 160 mm Material Polycarbonate/Acrylnitrile-butadiene-styrene Mounting perforation in base no Permitted temperature range, max. 60 °C Permitted temperature range, min. -15 °C Protection rating IP40 Protection rating IK code IK08 Protective film no Symmetrical no Version for Hood fitting Width 62 mm Width of the branch 100 mm - All types
- Downloads
-
Data sheet GK-TR53100AL / 6113104 , 0.19MB , pdfEU declaration of conformity GK-TR53100AL / 6113104 , 0.10MB , pdfREACH Declaration of conformity GK-TR53100AL / 6113104 , 0.27MB , pdfRoHS Declaration of conformity GK-TR53100AL / 6113104 , 0.28MB , pdfLabel approval VDE symbol approval Rapid45-2 GKH , 0.31MB , pdfMounting instructions Geräteeinbaukanal Rapid 45-2® , 2.65MB , pdfMounting instructions Mounting instructions, T piece adapter GK-TA WDK..., GK-TR... , 0.14MB , pdfNo invitation to tender text is available for this product.
