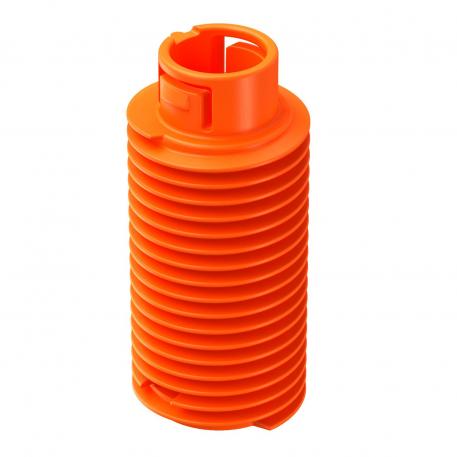

Threaded rod for UZD 250/350
Item no. 7410017 | EAN 4012197399344
- Product description
-
Product descriptionThreaded rod as spare part for height adjustment of the UZD 250/350.
-
- Technical data
-
Technical data
CO2 Footprint (GWP) Cradle-to-Gate 0,3238 kg CO2e / 8 Piece Colour Pastel orange; RAL 2003 Decouplable no Dimension 140x140x25 Dimension d Ø 21,5 mm Dimension h 47,5 mm Floor plate no For pipe connection no Height-adjustment range, max. 320 mm Height-adjustment range, min. 160 mm Installation opening for on-floor tank no Left thread no Length 47,5 mm Lowerable to be flush-floor no Material Polyamide, fibreglass reinforced Minimum screed height 160 Screed height, max. 320 mm Screed height, min. 160 mm Seal installation option no Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts no Suitable for underfloor ducts yes Thread increase 2,2 mm Thread metric 22 Thread type Metric Trunking width, max. 350 mm Trunking width, min. 190 mm - All types
- Downloads
-
Data sheet UZD GS 250/350 / 7410017 , 0.21MB , pdfEU declaration of conformity UZD GS 250/350 / 7410017 , 0.11MB , pdfREACH Declaration of conformity UZD GS 250/350 / 7410017 , 0.12MB , pdfRoHS Declaration of conformity UZD GS 250/350 / 7410017 , 0.13MB , pdfMounting instructions EÜK screed-covered duct system generation 4 , 10.26MB , pdf
