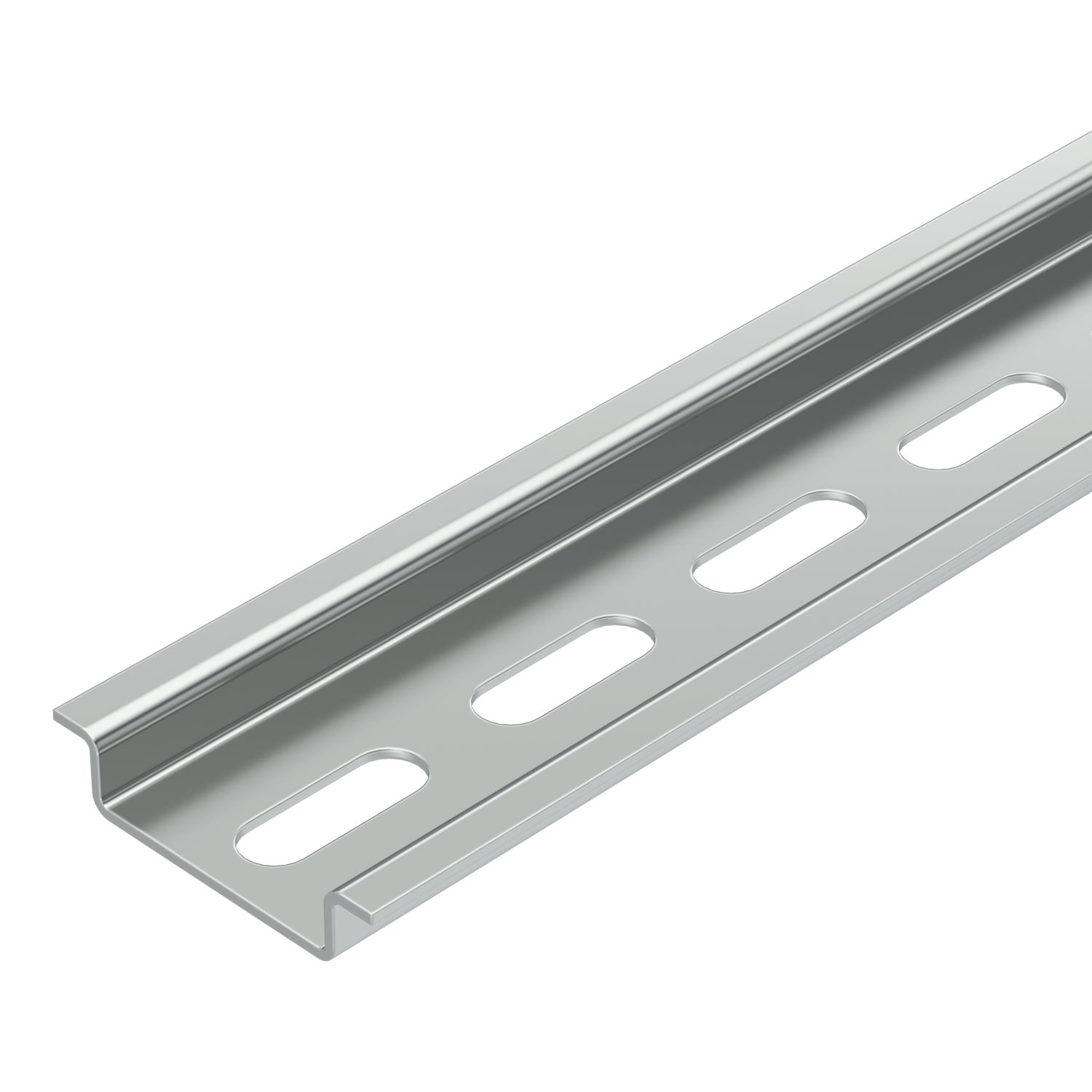

Top hat rail, perforated
Item no. 1115860 | EAN 4012197407414
- Product description
-
Product descriptionPerforated top hat rail 35 x 7,5 mm for holding electrical devices such as circuit breakers, power supplies, relays, surge protection devices or terminal blocks. Perforation 6.2 x 18 mm. According to EN 60715 (formerly DIN EN 50022).
-
- Technical data
-
Technical data

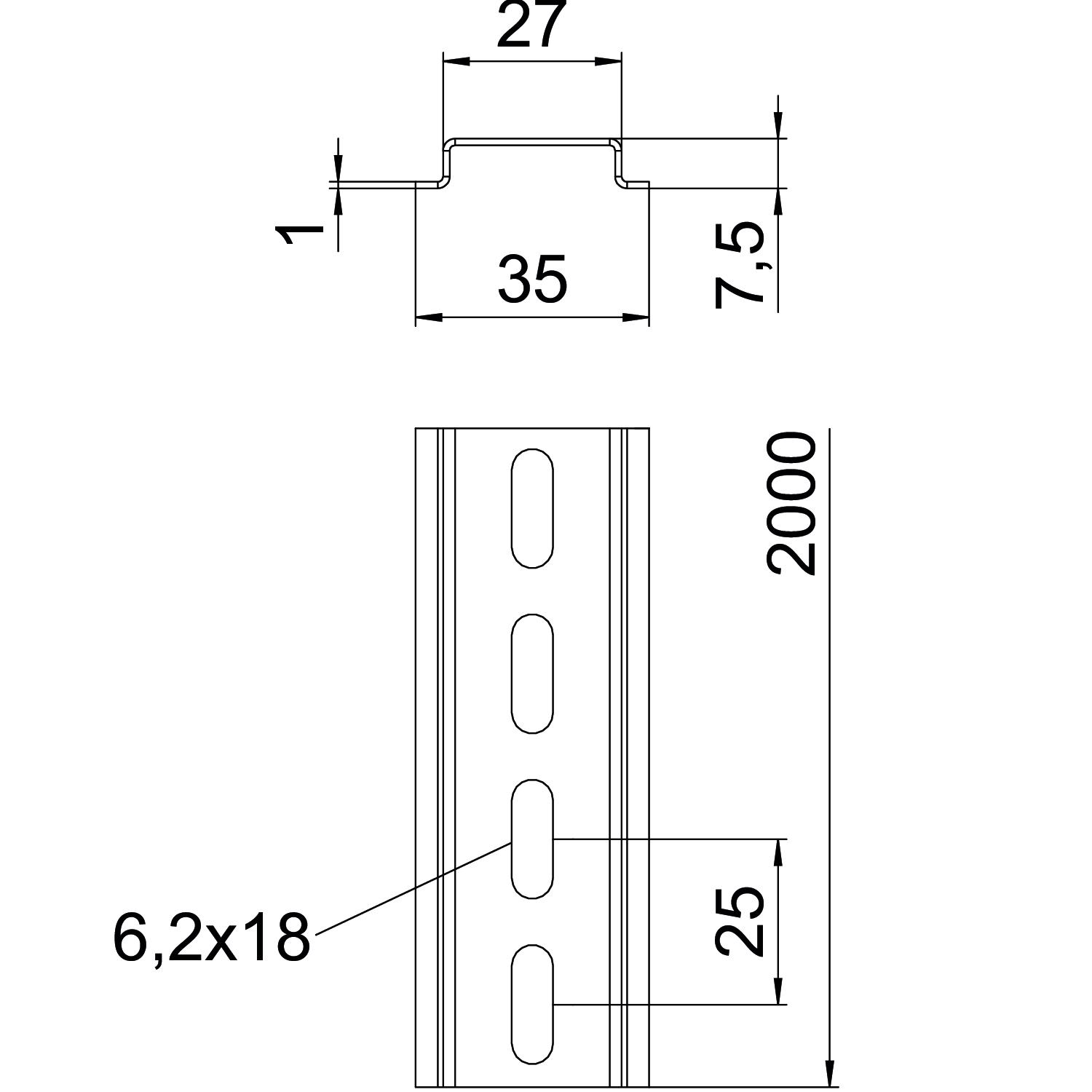

Bundle 50 m Colour zinc Dimension 2000x35x7,5 Drill hole spacing, centre 25 mm Height 7,5 mm Hole shape (ETIM) Long slot Length 2000 mm Material Steel Material thickness 1 mm Surface Electrogalvanized, transparently passivated Version for perforated Version, rails Support rail DIN EN 60715 Width 35 mm - All types
- Downloads
-
Data sheet 2069 6,2 2M GTPL / 1115860 , 0.17MB , pdfEU declaration of conformity 2069 6,2 2M GTPL / 1115860 , 0.10MB , pdfUK Declaration of Conformity 2069 6,2 2M GTPL / 1115860 , 0.09MB , pdfREACH Declaration of conformity 2069 6,2 2M GTPL / 1115860 , 0.12MB , pdfRoHS Declaration of conformity 2069 6,2 2M GTPL / 1115860 , 0.13MB , pdf
