Traverse for Z support for BKRS 487
morepic-1 morepic-2

Traverse for Z support for BKRS

Item no. 6044434 | EAN 4012197431495

Product description
Product description

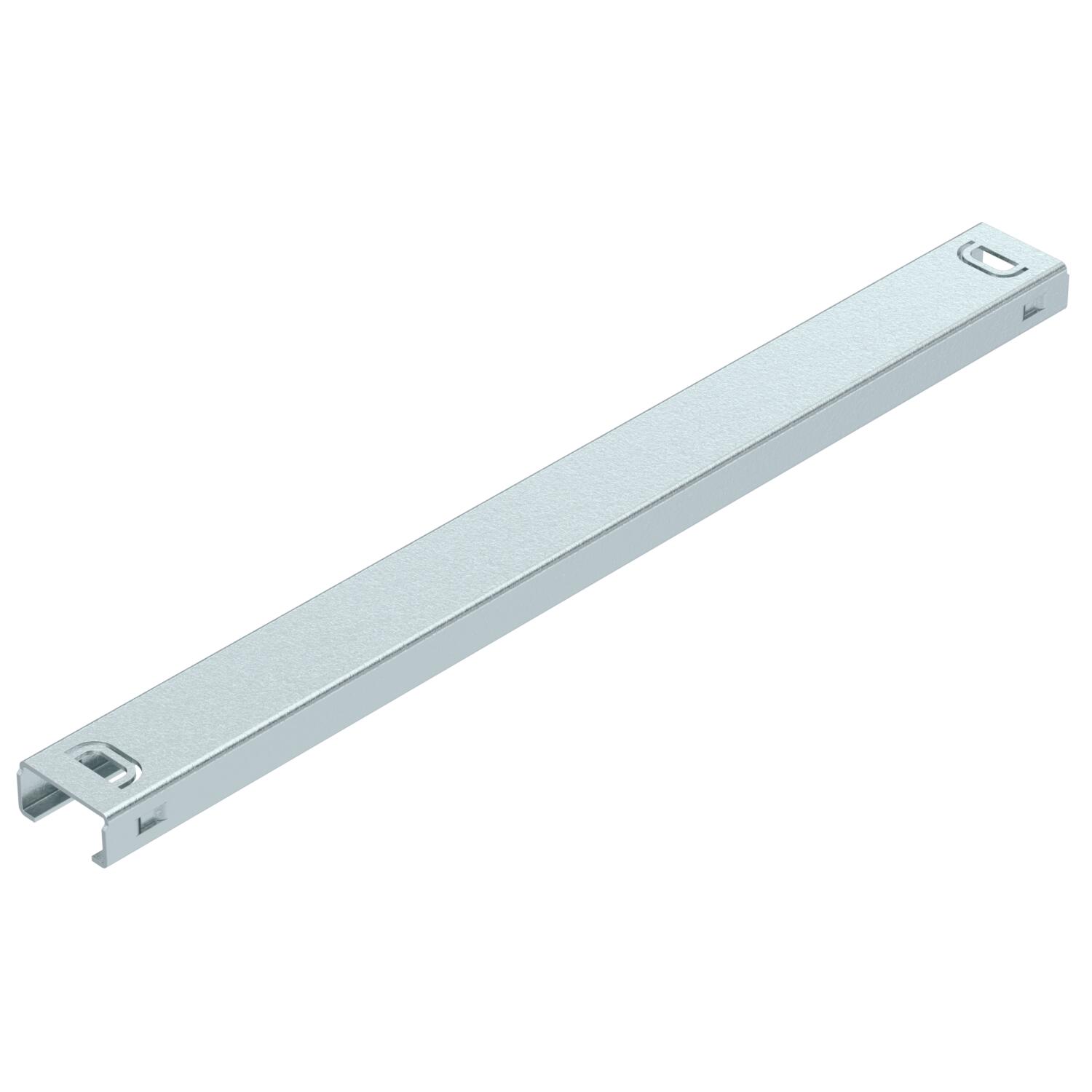

Traverse beam for Z support to support walkable cable trays and to prevent them from sagging at larger cable loads.
Mounting of cable trays with flat-head screw FKS 6 x 12 mm (item no. 6049246) in M6 threaded hole of the Z support.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard
  • CO₂ footprint (PCF)
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 1,913 kg CO2e / 1 Piece
Colour zinc

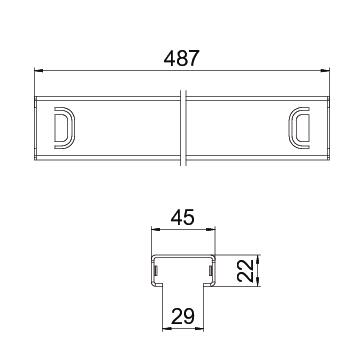

Dimension 45x487x22
Height 22 mm
Length 487 mm
Material Steel
Plate thickness 2 mm
Surface Strip galvanized
Width 45 mm
All types

All types

Types Length Item no. Quantity SSU
TRV ZST 100 FS 87 mm 6044423
1 piece
TRV ZST 200 FS 187 mm 6044426
1 piece
TRV ZST 300 FS 287 mm 6044429
1 piece
TRV ZST 400 FS 387 mm 6044431
1 piece
TRV ZST 500 FS 487 mm 6044434
1 piece
TRV ZST 600 FS 587 mm 6044437
1 piece
