Traverse for Z support for BKRS 87
morepic-1 morepic-2

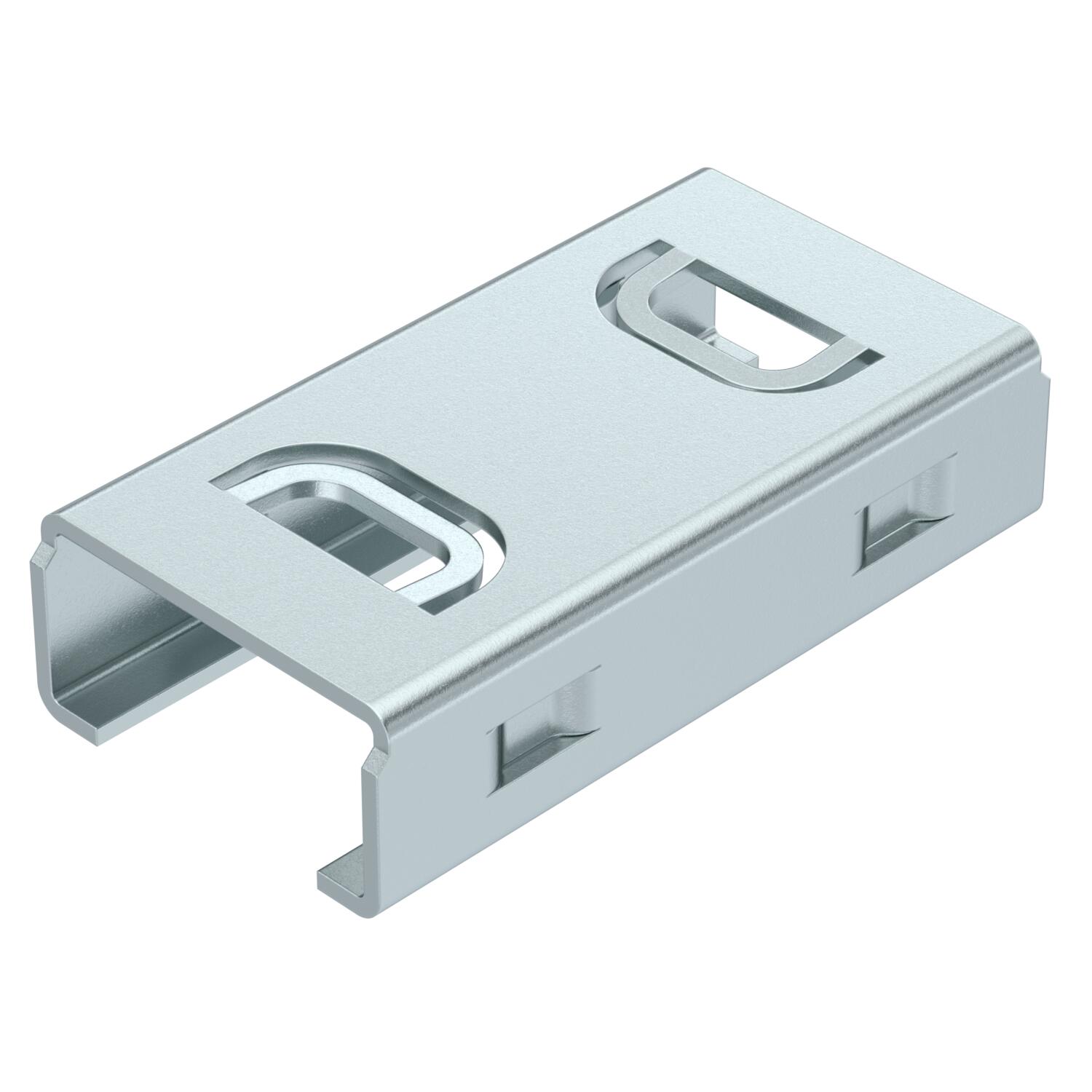

Traverse for Z support for BKRS

Item no. 6044423 | EAN 4012197431419

Product description
Product description
Crossbar for Z-support to support walkable cable trays and prevent deflection with heavy cable loads.
Connection with Z-support by snapping into place. Mounting of cable tray on traverse with FKS M6 screw through hole in Z-support.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard
  • CO₂ footprint (PCF)
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 0,3584 kg CO2e / 1 Piece
Colour zinc

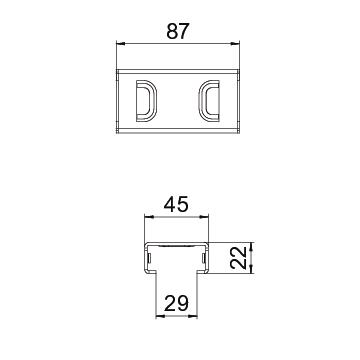

Dimension 45x87x22
Height 22 mm
Length 87 mm
Material Steel
Plate thickness 2 mm
Surface Strip galvanized
Width 45 mm
All types

All types

Types Length Item no. Quantity SSU
TRV ZST 100 FS 87 mm 6044423
1 piece
TRV ZST 200 FS 187 mm 6044426
1 piece
TRV ZST 300 FS 287 mm 6044429
1 piece
TRV ZST 400 FS 387 mm 6044431
1 piece
TRV ZST 500 FS 487 mm 6044434
1 piece
TRV ZST 600 FS 587 mm 6044437
1 piece
