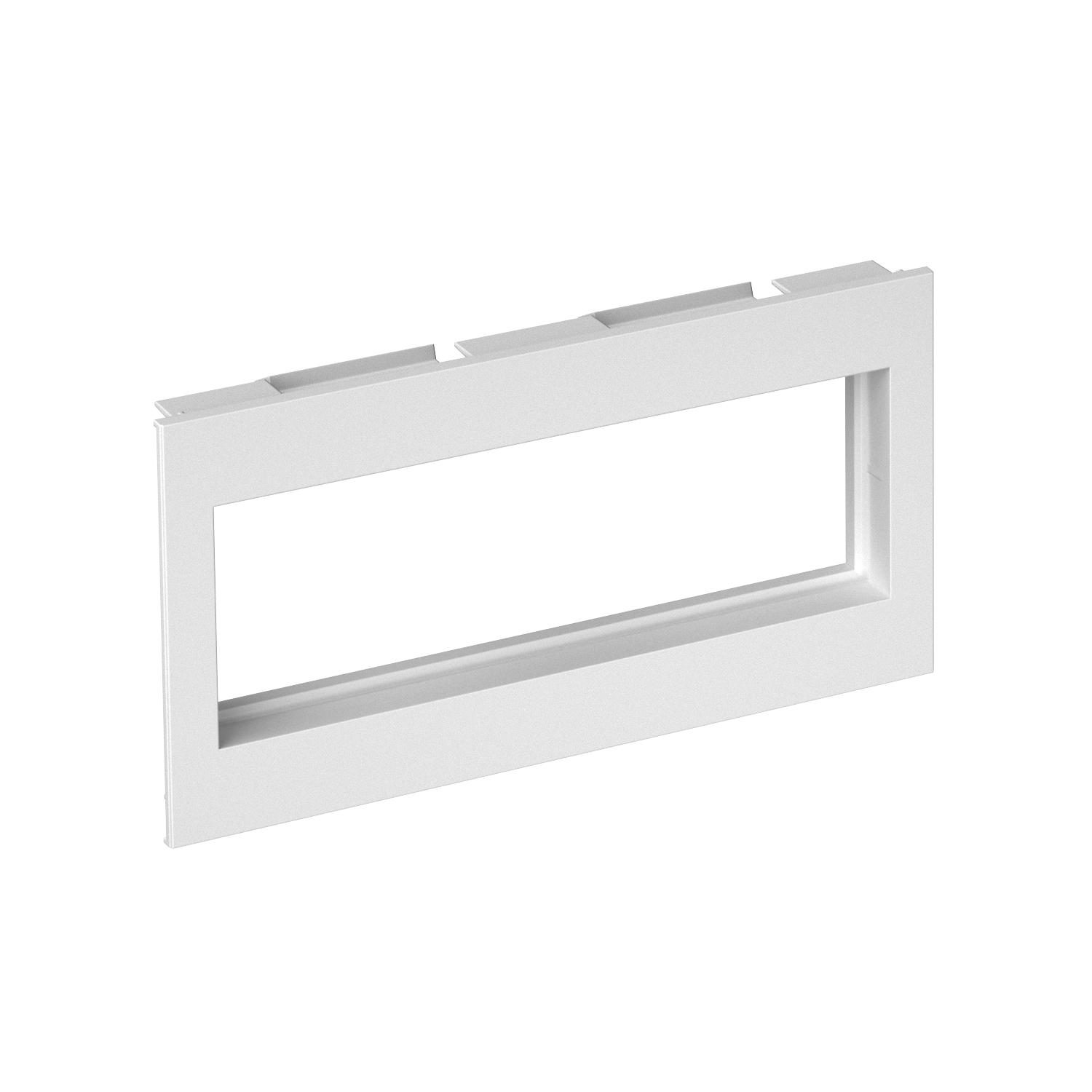

Triple frame BRK
Item no. 6121110 | EAN 4012196735013
- Product description
-
Product descriptionFrame for Modul 45 locking connection (to accept the support plate for Keystone modules).
-
- Technical data
-
Technical data
Antibacterial treatment no Anzahl der Einheiten vertikal 3 CO2 Footprint (GWP) Cradle-to-Gate 0,2483 kg CO2e / 1 Piece Colour Pure white; RAL 9010 Concealed no Dimension 200x80x28 Einbaubreite 135 mm Fastening type Clamp fastening Flush-mounted version no Halogen-free yes Height 80 mm Hinged cover no Installation height 45 mm Material Polycarbonate/Acrylnitrile-butadiene-styrene Mounting direction Horizontal and vertical Number of units 3 Number of units, horizontal 3 Protection rating IP20 Suitable for built-in installations no Suitable for device installation ducts yes Suitable for flush-mounted installations no Suitable for underfloor duct socket no Surface version Matt Text field/inscription field no Transparent no Width 200 mm With mounting frame no - All types
- Downloads
-
Data sheet BRK CF3 M45 rws / 6121110 , 0.15MB , pdfREACH Declaration of conformity BRK CF3 M45 rws / 6121110 , 0.12MB , pdfRoHS Declaration of conformity BRK CF3 M45 rws / 6121110 , 0.13MB , pdfNo invitation to tender text is available for this product.
